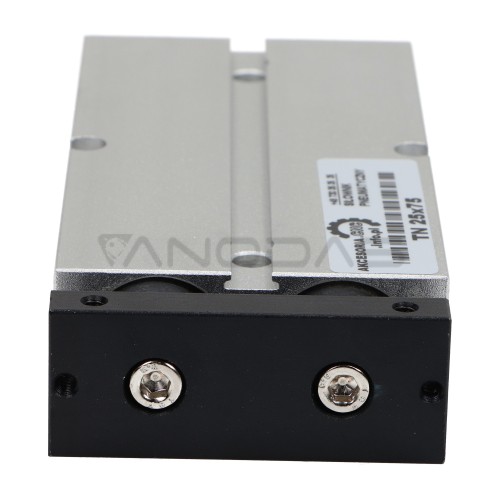

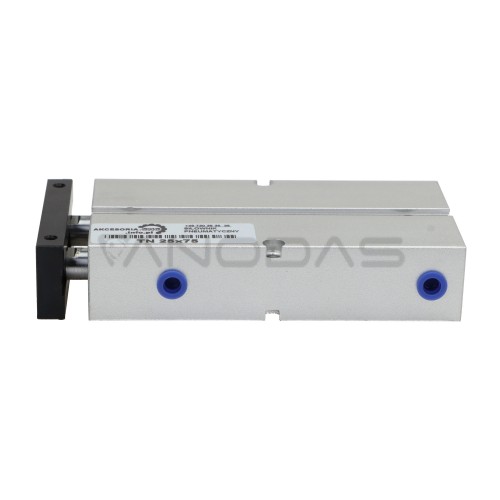

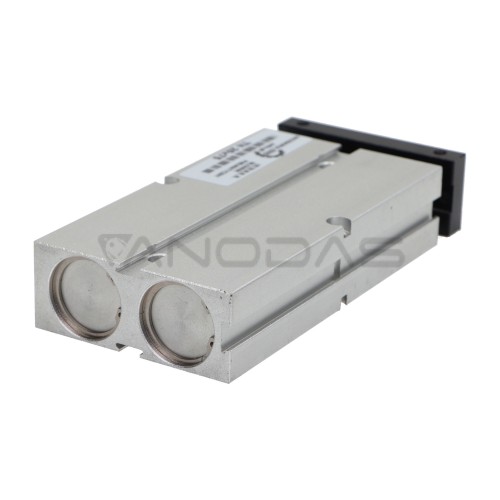

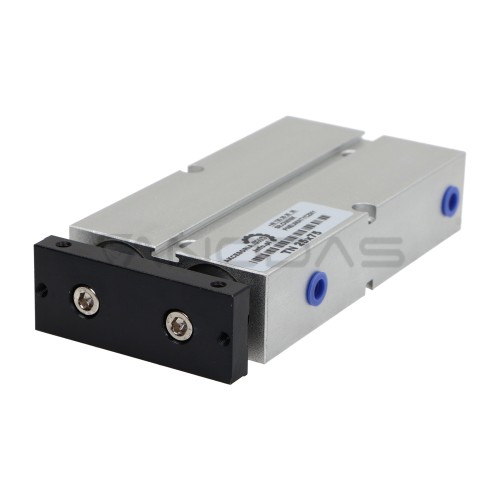

Compact Pneumatic Cylinder TN 25x75 Double Piston
Ex Tax: 40.91€
The TN 25x75 double-piston actuator is an efficient pneumatic device that converts air energy into mechanical movement. It consists of two cylinders and pistons with a diameter of 25 mm, which provides a double working surface, increasing force and efficiency compared to single-piston actuators. The actuator stroke is 75 mm and the connection is M5. Thanks to two pistons working synchronously, the TN actuator generates less vibration and noise. Additionally, better force distribution reduces the pressure on individual parts of the actuator, which translates into its longer service life.
D [mm]: 105
Length L [mm]: 72
H [mm]: 8
R [mm]: 7
A [mm]: 156
B [mm]: 19
Height F [mm]: 10
C [mm]: 137
E [mm]: 70
G [mm]: 66
I [mm]: 34
J [mm]: M4
M [mm]: 29
W [mm]: 73
V: 12
Length W [mm]: 10.2
Q [mm]: 56
T [mm]: 30
K [mm]: 66
N1 [mm]: 27
N2: 12
Connection: 1/8"
Piston diameter: 25 mm
Actuator stroke: 75 mm
With magnet: No
