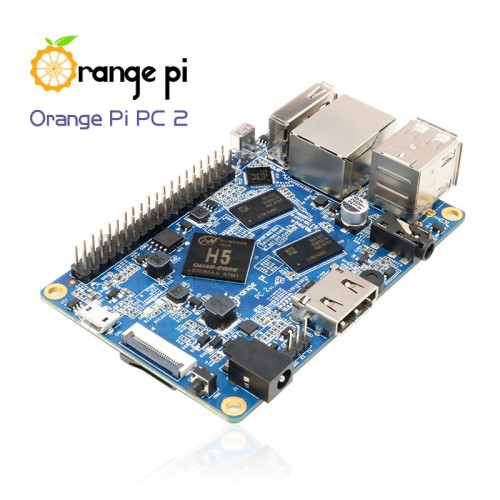

Orange Pi PC2 - Alwinner H5 Quad-Core 1GB RAM

Product Code: AN-07935
Availability: Temporarily Out Of Stock
57.70€
Ex Tax: 47.69€

What’s Orange Pi PC 2?

It’s an open-source single-board computer. It can run Android 5.1, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H5 SoC, and has 1GB DDR3 SDRAM

What can I do with Orange Pi PC 2?


Build…
  • A computer
  • A wireless server
  • Games
  • Music and sounds
  • HD video
  • A speaker
  • Android
  • Scratch
  • Pretty much anything else, because Orange Pi PC 2 is open source


Who’s it for?

Orange Pi PC 2 is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

Hardware specification

CPU

• H5 High Performance Quad-core 64-bit Cortex-A53

• Integrated multimedia acceleration engine

• Hardware Java acceleration

• Integrated hardware floating-point coprocessor

GPU

• Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage

• High Performance Hexa-core Mali450

• OpenGL ES 2.0/1.1/1.0, OpenVG 1.1, EGL

• 40 GFlops, Pixel fill rate greater than 2.7GPixel/s

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 64GB) / NOR flash(2MB)

Onboard Network

1000M/100M Ethernet RJ45

Video Input

A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input

MIC

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Integrated CVBS

Supports simultaneous output of HDMI and CVBS

Audio Output

3.5 mm Jack and HDMI

Power Source

DC input can supply power, but USB OTG input don’t supply power

USB 2.0 Ports

Three USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button(SW4)

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi B+



GPIO(1x3) pin

UART, ground.

LED

Power led & Status led

Key

IR input, POWER

Supported OS

Android, Ubuntu, Debian, Rasberian

Interface definition

Product size

85 mm × 55mm

Weight

70g
