32u4 Feather Adalogger with microSD card reader, compatible with Arduino - Adafruit 2795

Product Code: AN-05414
Availability: 3-5 business days
Planned delivery date after ordering: 2022-12-09
36.80€
Ex Tax: 30.41€

Qty

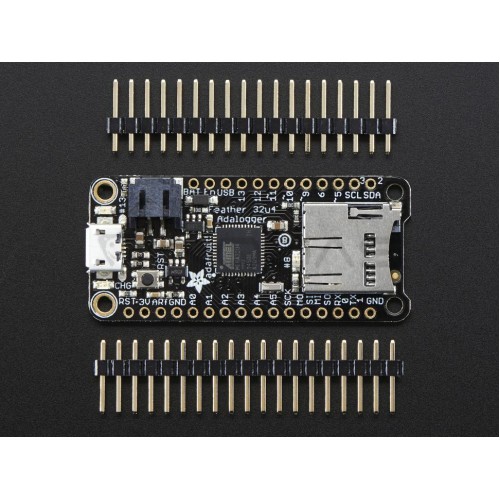

A small module with a microcontroller AVR Atmega 32u4. Feather is designed for portable projects. Thanks to the microUSB connector and uploaded bootloader, the module can be programmed directly from the Arduino IDE environment. Board has a small size (51 x 23 x 8 mm) and can be powered by voltage from the USB port or from a rechargeable Li-Pol battery of 3,7 V Li-Pol. The module has a slot for microSD memory cards, which allows it to store large amounts of data (memory cards sold separately).

Specification:
  • Supply voltage: li-pol 3.7 V or USB 5 V slot
  • Microcontroller AVR Atmega32u4 3.3 V:
    • Flash memory: 32 kB (2.75 kB of which is occupied by the bootloader)
    • SRAM: 2 KB
    • Clock frequency: internal oscillator 8 MHz
  • Installed Arduino bootloader
  • Works with a modified version of the Arduino IDE
  • Slot for microSD card for recording and reading data
  • Connector for microUSB for programming
  • Installed voltage regulator 3.3 V with current delivery up to 500 mA
  • Power supply from the USB port or with a li-pol battery 3.7 V
  • 20 GPIO pins
  • 8 PWM pins
  • 10 analog inputs (one for the battery voltage measurement)
  • Built-in li-pol charging module 100 mA with LED indicator, which informs about the status
  • LED for pin 13
  • The reset button
  • Dimensions: 51 x 23 x 8 mm
  • Weight: approx. 5 g
