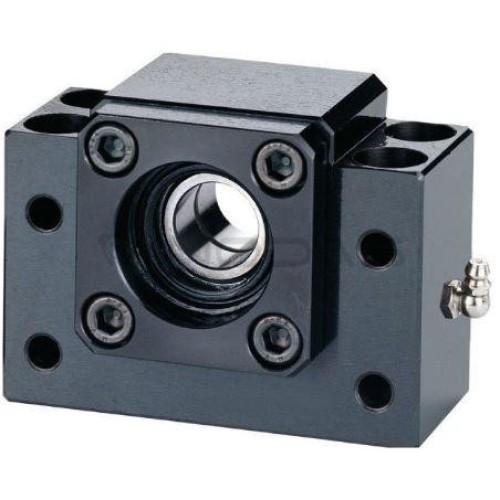

Bearing block BK35 C7 drive side
Brand: Sonyung Industry Co.
Product Code: MX-IW-BK-35
Availability: 6-10 business days
Planuojama gavimo data po užsakymo: 2024-05-13
Product Code: MX-IW-BK-35
Availability: 6-10 business days
Planuojama gavimo data po užsakymo: 2024-05-13
Ex Tax: 188.43€
Characteristics :
- BK35 bearing block mounted on the drive side of the screw
- Two angular contact bearings with an internal diameter of 35 mm are used
- The bearings transfer thrust loads in both directions
- Sealing rings protect the bearings against dirt
- Bearings lubricated with high-quality grease
- The design of the bearing block allows for mounting in a vertical and frontal position
- Interchangeable with other brands such as THK, NSK, MISUMI, KURODA, SYK, HIWIN
- Accuracy class C7
- Suitable for bearing ball and trapezoidal screws with a diameter of 45 mm and any pitch
- Compatible with BF series blocks
Length (L): 50 mm
Height (H): 96 mm
Diameter (d1): 35 mm
Base Width (B1): 88 mm
Height with Base (H1): 79 mm
Total Width (B): 140 mm
Mounting Screw Size (M): M8
Screw Lengths:
L1: 14 mm
L2: 67 mm
L3: 12 mm
Pitch (P): 114 mm
Thickness (T): 50 mm
Counterbore Diameter (C2): 12 mm
Dimension X: 14 mm
Dimension Y: 20 mm
Dimension Z: 13 mm
Width Tolerance (B +/- 0.0): 70 mm
Height Tolerance (h +/- 0.02): 52 mm
Counterbore Diameter (C1): 26 mm
