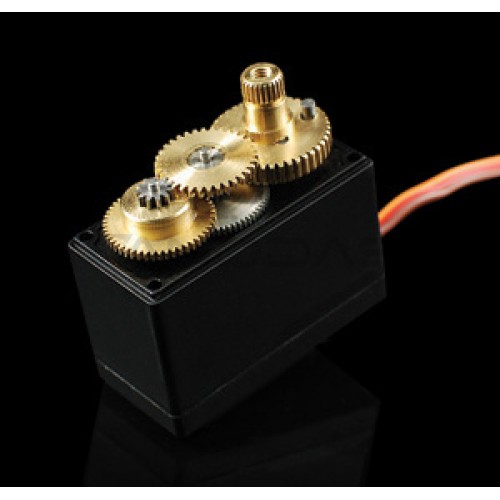

Servo PowerHD AR-1201MG Continuous Rotation

Product Code: MOT-01882
Availability: 3-5 business days
Planned delivery date after ordering: 2020-09-28
21.70€
Ex Tax: 17.93€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Movement range: unlimited
  • With potentiometer
  • Metal modes
  • Control signal: 50 Hz / 1 - 2 ms
  • Dimensions: 40,5 x 20,0 x 38,0 mm
  • Weight: 60 g



  • 4,8 V parameters:
    • Torque: 12,0 kg*cm (1,17 Nm)
    • Speed: 0,22 s/60°

  • 6,6 V parameters:
    • Torque: 20,0 kg*cm (1,96 Nm)
    • Speed: 0,16 s/60°

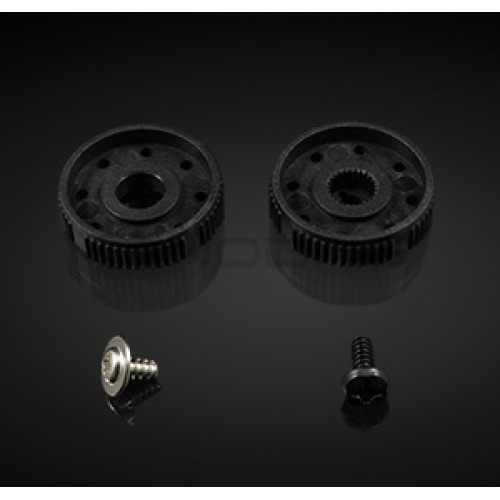

  • The kit includes servo horn set, spacers and screws.
