EMAX ES08MA II 12g Mini Metal Gear Analog Servo For RC Model

Product Code: AN0598
EAN: 4772164008081
Availability: Vilnius Store Out of Stock
Kaunas Store In Stock
12.00€
Ex Tax: 9.92€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Main Features:
Made of special engineering materials, the gear set and the case are super tough
NOBLE potentiometer assures high accuracy and coherence

Operating voltage: 4.8V - 6.0V
STD direction: Counter clockwise / pulse traveling 1500 to 1900usec
Stall torque (4.8V): 1.6Kgf.cm
Stall torque (6V): 2.0Kgf.cm
Operating speed (4.8V): 0.12 Sec / 60 degree at no load
Operating speed (6V): 0.1 Sec / 60 degree at no load
Dimensions: 23 x 11.5 x 24mm
Weight: 12g
Plug available: FUT / JR
Analog, metal

Specification

Specifications

Brand: EMAX
Type: Servo

Dimension and Weight

Package weight: 0.1 kg
Package size (L x W x H): 8 x 6 x 5 cm / 3.14 x 2.36 x 1.97 inches

Package Contents

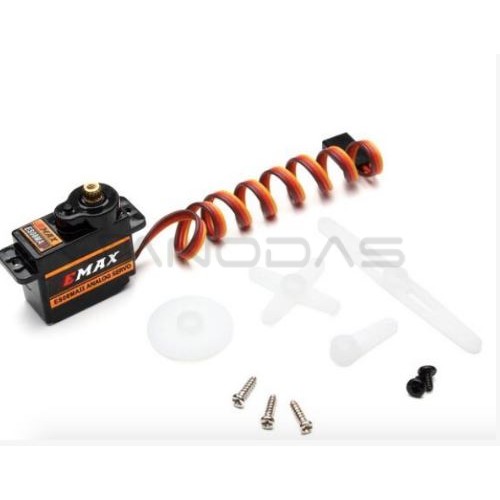

Package Contents: 1 x Servo, 1 x Set of Servo Arm (As the Pic), 1 x Pack of Screw (As the Pic)
