Waveshare Resistive Touch Dislpay for Raspberry Pi 3/2/B+ - LCD TFT 5" 800x480px HDMI + GPIO + Case

Product Code: WSR-04909
Availability: 3-5 business days
Planned delivery date after ordering: 2020-10-26
56.00€
Ex Tax: 46.28€

Qty

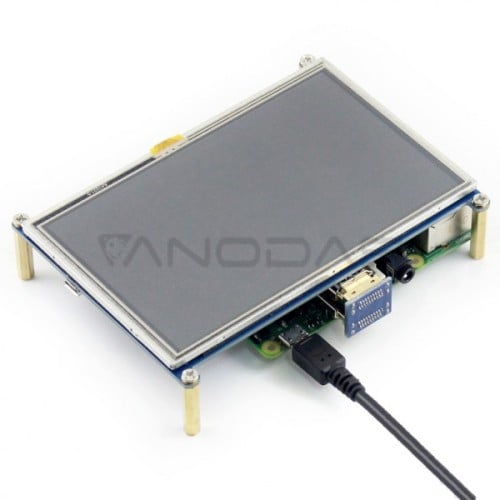

Wahvesahre resistive touch display 5" display for the Raspberry Pi with a resolution of 800 x 480 px. Works with Rasbperry Pi in version 3B+, 3B, 2B and B+ Zero via the HDMI connector and GPIO pins - all necessary hardware is included in the package, as well as a special bicolor case for Raspberry Pi and screen. The device also works with Banana Pi and Beagle Bone Black.

The LCD

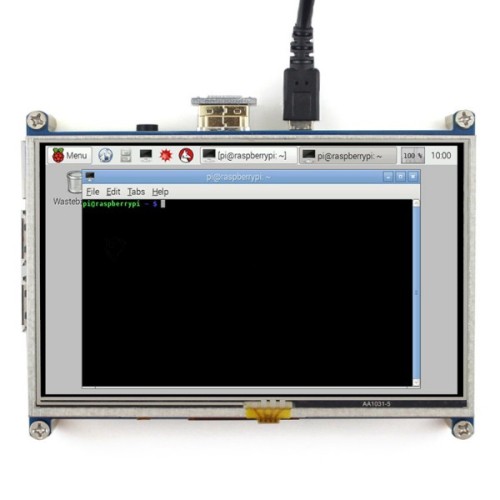

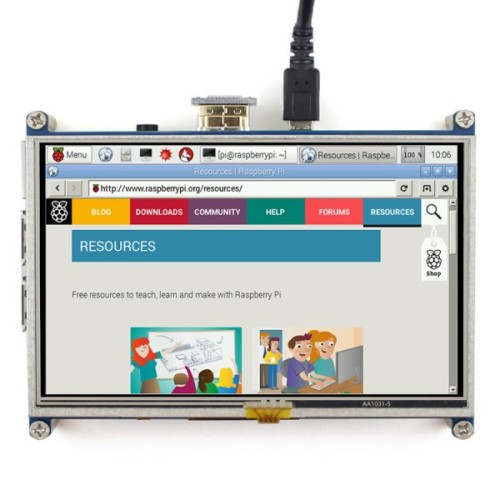

  • 800x480 high hardware resolution
  • Resistive touch control
  • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Backlight can be turned off to lower power consumption
  • High quality immersion gold surface plating

The Case

  • Material : high quality bicolor Acrylic, black and white
  • Comes with bottom holder, optional tilt angle, 45° or 60°
  • Features mounting holes for Raspberry Pi A+/B+/2B/3B/3B+

GPIO:

Pin GPIO Symbol Description
1, 17 3.3 V Power 3.3 V.
2, 4 5V Power Supply 5 V.
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC Not connected.
6, 9, 14, 20, 25 GND Mass.
19 TP_SPI Input data SPI for the touch panel.
21 TP_SO The data output SPI for the touch panel.
22 TP_IRQ The cessation of the touch panel defining the touch establishes a low state.
23 TP_SCK Clock signal SPI for the touch panel.
26 TP_CS Chip select for touch panel.
