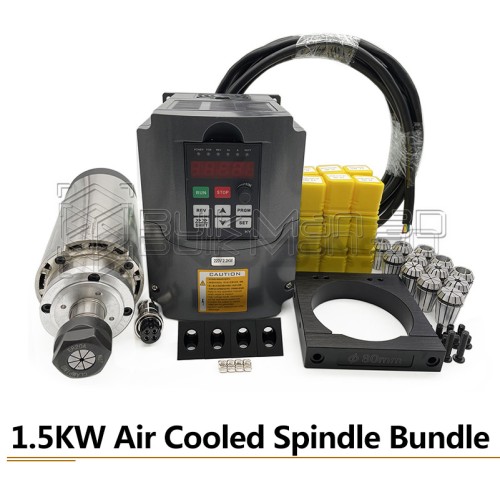

1.5KW Air Cooled Spindle Motor KIT

The 1.5KW Air Cooled Spindle Kit is a very powerful Spindle we offer, which is a must have for anyone who takes their CNC machine serious. The Spindle and VFD Inverter in this bundle are high quality from a well respected brand; Huanyang – an industry leader in CNC machining.

It contains all the hardware for mounting a 1.5KW Air Cooled Spindle on a Ultimate Bee, QueenBee Pro CNC Machine or other CNC machine.

Bundle: 1.5KW-220V with ER11 Collets (Spindle Dia: 65mm)

• 1x 1.5KW Air Cooled Spindle (DIA 65mm) N.W.=2.6kg
• 1x VFD Inverter
• 1x Cable 4 Core Shielded ( 5 meters)

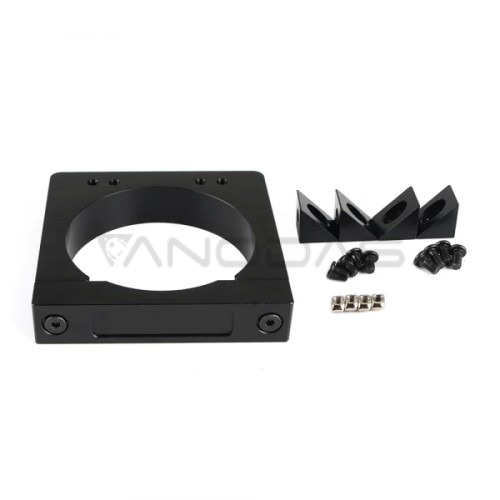

• 1x Spindle Mount Kit (ID 65mm)
• 15x ER11 collet chuck from 1 mm to 7 mm (1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm)

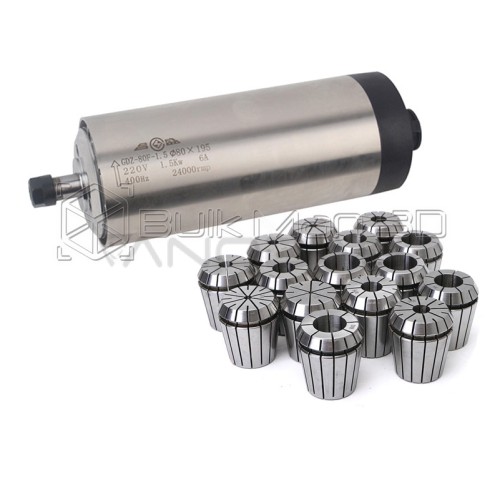

Spindle Specifications:

• 1.5KW Spindle Size: φ65 x 205 mm (Diameter: 65mm x Length: 205mm)
• Material: The cover is made of 304 stainless steel
• Power: 1.5kW
• Voltage: 220V, 110V
• Frequency: 0-400 Hz
• Speed: 8000-24000 R/min
• Air Cooling
• Runout: less than 0.005 mm
• Grease Lubrication
• Power interface: GX16 water proof aviation plug marked with numbers 1, 2, 3, 4
• Numbers 1, 2 and 3 are connected to the inverter power U, V, W respectively. Number 4 is connected to the Earth wire Lubrication: High temperature resistance grease lubrication

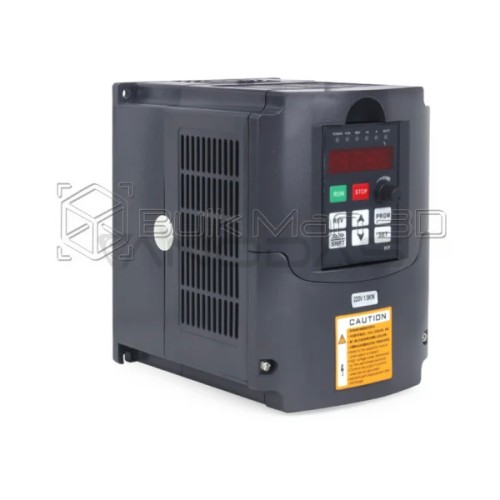

VFD Specifications:

• Brand: Huanyang
• Input Voltage: 220V or 110V
• Output Voltage: 208-240 VAC ( analogous to Input Voltage )
• Input Frequency: 48-63 Hz
• Output Frequency: 0-400 Hz
• Input Phase: 1 or 3 phase as you like
• Output Phase: 3 phase
• Control Mode: SPWM
• Input Power: 220V class：220±15%
• 5 Digits Display & Status Indicator Lamp: Displaying frequency, current, revolution, voltage,
• counter, temperature, FOR or REV rotation, and fault, etc.
• Working Temperature:-10~40 ℃
• Humidity: 0-95% Relative Humidity (without dew)
• Vibration: Below 0.5G
• Dimension: 22 x 18 x 21 cm (L x W x H)

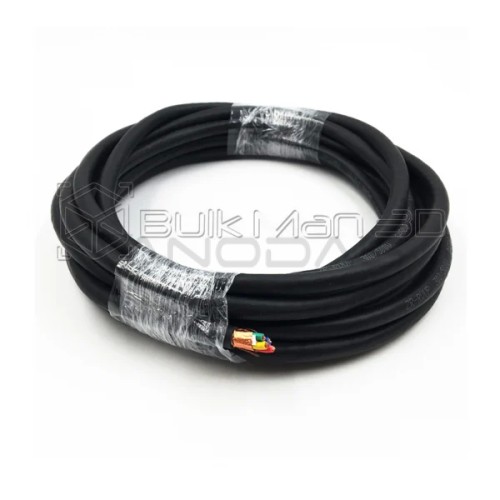

Cable Specifications:

• Type: ZR-RVVP
• External Material: PVC
• Rated Voltage: 300/500V
• Core: 4 Core
• Core Nominal Area: 1.5mm2
• Note : Any Mains power connections must be installed by a Licensed electrician or suitability qualified person.

• Spindle Motor instruction (3.92MB)
• VFD instruction (12.13MB)
