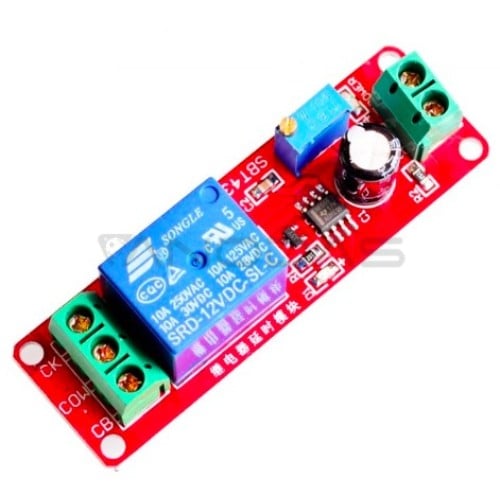

1 channel relay module with timer

Product Code: AN0214-94A
EAN: 4779044510245
Availability: Vilnius Store In Stock
Kaunas Store In Stock
2.80€
Ex Tax: 2.31€

Qty

With this timer relay module you will be able to intelligently control car or home electrical appliances using logic signals. The module uses high-quality electrical components, so it can control high-current and high-voltage car or home electrical appliances.

Technical data and features:

  • 1 channel relay module with logic signal control and timer
  • Potentiometer adjustable timer, from 0 to 10 seconds.
  • Timer module: NE555
  • Logic signal voltage: 12V DC
  • Relay controlled current: up to 250V 10A AC, 30V 10A DC
  • The LED indicates the operating status of the relay and the board
  • Normally open and normally closed lines (NC normally closed, NO normally open)
  • Screw connections ensure strong contact
