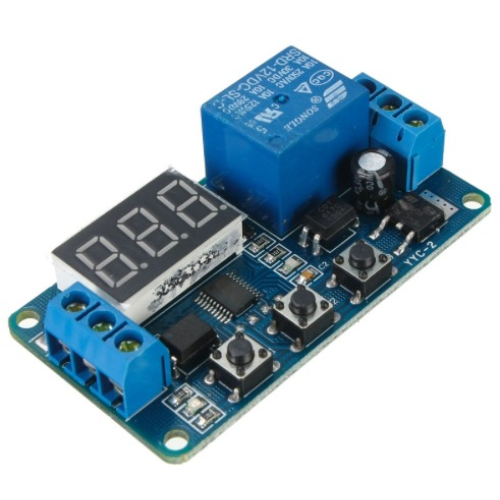

12V LED Display Digital Programmable Timer Timing Relay Module Self-lock Switch

Product Code: AN0214-90A
EAN: 4779044514717
Availability: Vilnius Store In Stock
Kaunas Store In Stock
8.16€ 9.60€
Ex Tax: 6.74€

Qty

The time relay module can operate in seven user-selected modes tailored to individual needs.

Technical data:

  •  Supply voltage 5 - 30VDC
  •  Output load: 15A (400W)
  •  Time intervals: from 0.1 sec. up to 999 min.
  •  Operating temperature from -40 to 80C
  •  Dimensions 55.8 mm × 33 mm × 12 mm

Instruction

  • Operating Mode: P1: trigger signal, the relay is on "OP" time, and then disconnect; in the "OP" time, as follows:
  • P1.1: signal is triggered again, invalid
  • P1.2: signal is triggered again, the clocking is reset
  • P1.3: Signal is trigger again reset, relay off, and stop the clocking;
  • P-2: trigger signal, the relay off "CL" of time, the relay on "OP" time, and then disconnect
  • relay after clocking;
  • P3.1: trigger signal, the relay is turned on after the "OP" time, the relay off "CL" time, then the
  • operation cycles; if trigger signal again during the cycle, the relay off, stop clocking; the number of cycles times ( "LOP ") can be set.
  • P3.2: without triggering signal after power on, the relay is on "OP" time, the relay off "CL" time, then the operation cycles; the number of cycles times ( "LOP ") can be set.
  • P-4: signal holding function. If there is trigger signal, clocking is reset, the relay remains on; when the signal disappears, after clocking "OP" time, the relay is off; if another signal is triggered during clocking, clocking will be reset.
  • How to Set Clocking Range:
  • After setting the parameter value at mode selection, press "STOP" button to set the clocking range;
  • XXX. The last decimal point lights up, range: 1 second to 999 seconds.
  • XX. X The second last decimal point lights up, range: 0.1 seconds to 99.9 seconds
  • X. X. X. all 3 decimal points light up, range: 1 minute to 999 minutes.
  • For example, if you want to set
  • "OP" as 3.2 seconds, light up the second last decimal point, and set
  • digit display as 03.2
