Feature:
Can use the computer USB port 5V power supply or using a mobile phone charger USB port 5V power supply
Battery power can also be used
High efficiency: 90%
Can provide 3W (left channel) + 3W (right channel) output power in the 4Ω load and 5V power supply conditions
A class, B class amplifier such efficiency is only about 30%
D class amplifier is highly respected today
D class amplifier efficiency is extremely high, not because of temperature affect the sound quality
But do not add heat sink and take less space noise cancelling circuit was built in the amplifier board
Power on / off without pop noise
Module has a short-circuit current protection and over-temperature protection
Specification:
Operating Voltage: 2.5V ~ 5.5V
Speaker With: 4Ohm ~ 8Ohm (recommended: 4Ohm)
Speaker Power: 2W ~ 8W
Size: 21 x 18 x 3.4mm (L x W x H)
Net Weight: 1g
Application:
LCD TVs, monitors
Laptop
Portable Speakers
Portable DVD players, game consoles
Phone / speakerphone
Note:
First turn OFF and then powered speakers , or likely to cause damage to the chip;
Because digital volume control module has a great gain , so do not let too much leaving the audio signal input signal cut limiter.
Raspberry Pi PicoRaspberry Pi 4 and kitsRaspberry Pi 3B+ and kitsRaspberry Pi 3B and kitsRaspberry Pi Zero and accessoriesScreens for Raspberry PiRaspberry Pi Camera modulesCases for Raspberry PiHAT extension for Raspberry PiRaspberry Pi 3/2/+ accessoriesPower Supply for Raspberry PiRaspberry Pi memory cards with NOOBS
STM32 MicrocontrollersATmega microcontrollersTeensy - ARMAdafruit FeatherESP8266 / ESP32 WiFi Modules
BlitzWolfTuya Smart LifeShelly home automation WiFiBleBox WiFi Smart SwitchGate Automation SystemsSonoff WiFi Smart SwitchWireless Remote Control RelayLED strip controllersHumidifiersFIBARO home automation
Sensors - modulesWireless Communication ModulesRelay modulesLCD/OLED/TFT DisplaysMotor controllersProgrammers and convertersConnectorsSwitchesVoltage RegulatorsBasic Starter KitPrototypingAudio Amplifiers / Speakers / OtherDiodesPassive electronic componentsCoolingElectromagnets and solenoids
Servo motors and accessoriesDC motorsStepper motorsVibration MotorsBrushless Motors and ControllersElectric Linear Actuators and CylinderWater pumpsWheels and mounting parts for motors
Charger for Electric BikesEV Car accessoriesRechargeable batteryUninteruptable power supply UPSAlkaline BatteriesAdjustable Lab Power SuppliesBattery Chargers Ni-Mh / Ni-Cd / Li-Ion / Li-Pol / Li-FeLi-Ion battery charging and balancing boardsAC/DC Mains powers supply adapterPower Supplies AC/DCMean Well power suppliesLaptop adapterInverters DC/ACSolar Panels And AccessoriesPower Supply Accessories
Soldering toolsBattery Welding Machines and accessoriesMeasuring equipmentChemicalsTweezersScrewdrivers and wrenchesHot Glue GunPlier and cutting nipperInsulation removal and crimping toolKnives and scissorsElectric engraver toolsMagnifying glassesInsulating materialsAluminum enclosurePlastic enclosureStorage boxes and OrganizersUltrasonic cleanersPersonal protective equipment
CNC machines and accessoriesCNC machine frame kitsLaser engravers and accessoriesAluminum Extrusion ProfilesLinear ActuatorBracketsLinear guides and garriagesTrapezoidal Lead Screws and NutsLinear Chromed Steel RodsBearingsTiming BeltsTiming PulleyLinear Rod SupportSpindle motors and mount bracketsScrews and NutsCable ChainsDrills and Cutters
3d printer spare parts3D printersDLP resin3D printing penABS 3D filamentsPLA 3D filamentsPET-G 3D filamentTPU / Fiberflex filamentMediena / FiberwoodFiberSilk MetalicImpact PLAPP 3D POLYPROPYLENE
USB cablesVideo cables and connectorsUSB HUBComputer network cablesNetwork equipmentAudio cables and connectorsConnection Cables, ExtendersData storages and their accesoriesKeyboard and Mouse

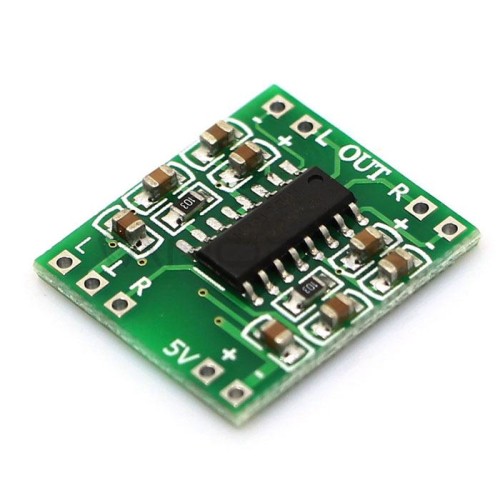

2x3W PAM8403 Digital Power Amplifier Board
