Adafruit QT Py ESP32-S2 WiFi - WiFi module with STEMMA QT/Qwiic connector - Adafruit 5325

Brand: Adafruit
Product Code: AN-20791
Availability: Temporarily Out Of Stock
23.50€
Ex Tax: 19.42€

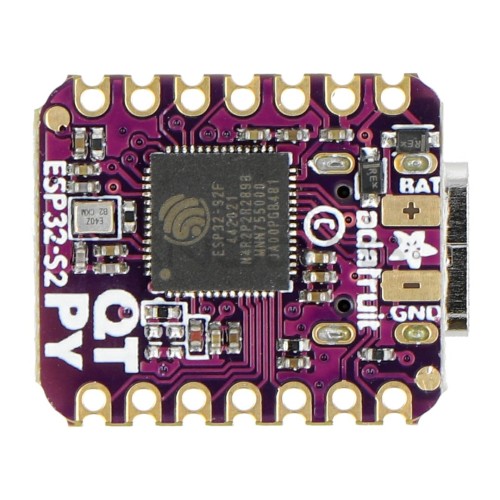

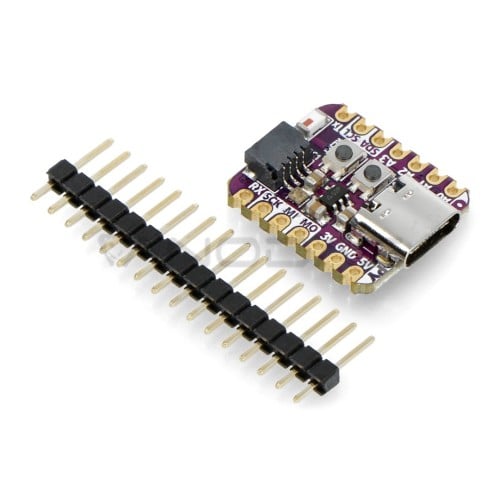

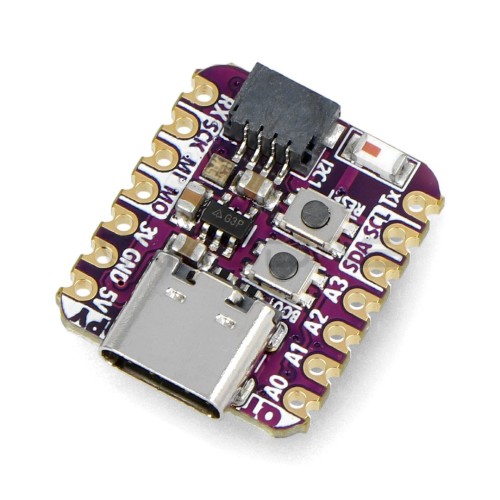

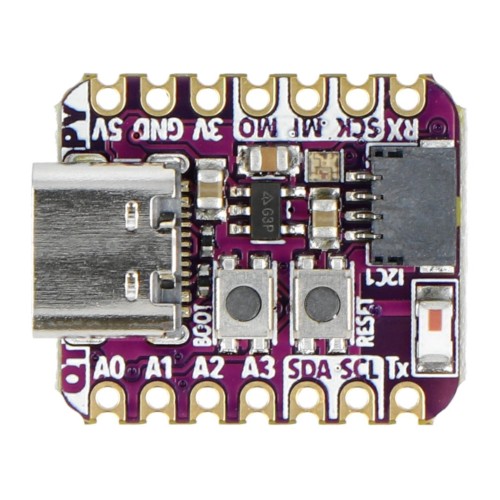

Small size QT Py module created by Adafruit. It is equipped with a single-core ESP32-S2 system clocked at 240 MHz, 4 MB Flash memory and 2 MB PSRAM. ESP32-S2 enables wireless 2.4 GHz WiFi communication but does not support Bluetooth communication. On the board, you can find a native USB type C port, which is also used to power the board and a Qwiic / STEMMA QT connector, two buttons and a NeoPixel RGB LED. The distribution of pins and the dimensions of the module are in accordance with Seeed Xiao.

Specification:
  • System: ESP32-S2
  • Processor: Tensilica Single-Core 240 MHz
  • Flash memory: 4 MB
  • PSRAM memory: 2 MB
  • Native USB port supported by any operating system - can be used with Arduino or CircuitPython as a USB serial console, MIDI, HID keyboard/mouse, or even as a compact drive for storing Python scripts
  • Works with Arduino IDE or CircuitPython
  • Built-in RGB NeoPixel LED with power control to reduce power consumption in deep sleep mode
  • Battery connection pads on the bottom of the board with a protective diode for an external battery pack up to 6 V
  • 13 GPIO pins:
    • 11 pins on the pads, 2 more on QT connectors
    • 10x 12-bit analog inputs (SPI high speed and others with plug-n-play STEMMA QT connector)
    • UART hardware
    • SPI hardware on high-speed SPI peripheral pins
    • I2C hardware on all pins
    • 5x capacitive touchpads without the need for additional components
  • A 3.3 V voltage regulator with an instantaneous output of 600 mA
  • Light Sleep current consumption: 2 to 4 mA
  • Deep Sleep power consumption: up to 70 uA
  • Reset button
  • Dimensions: 21.8 x 17.9 x 5.7 mm
  • Weight: 2.1 g
