Arducam IR-CUT IMX477 camera 12.3MPx HQ with 6mm CS-mount lens - for Raspberry Pi 4B/3B+/3A+/2B/Zero - Arducam B0270

Brand: ArduCam
Product Code: AN-20120
Availability: Temporarily Out Of Stock

92.80€
Ex Tax: 76.69€

Qty

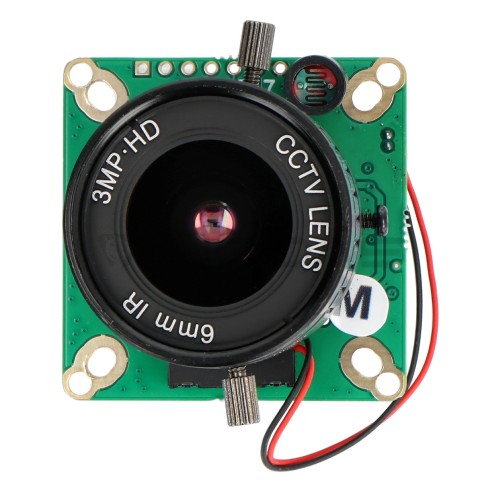

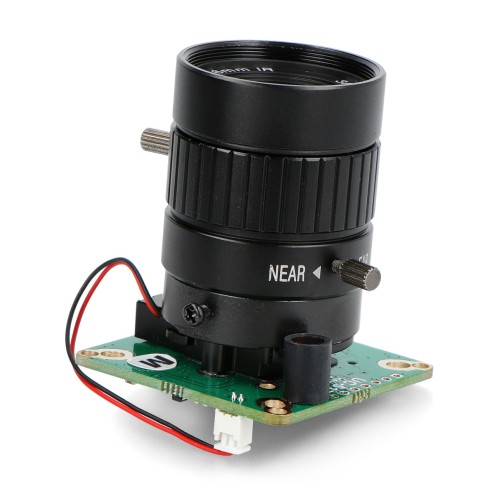

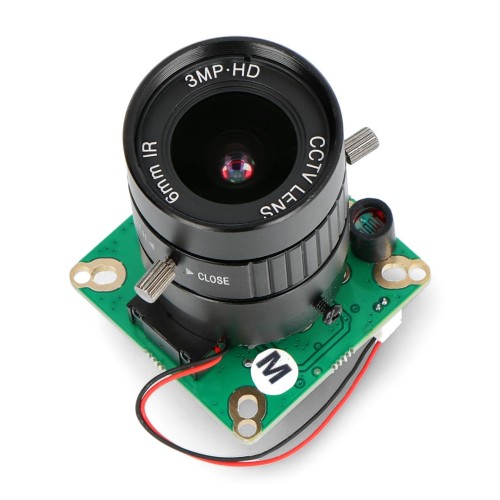

Camera equipped with IMX477 sensor in 1/2.3" format and 12.3 MPx resolution. The module has an IR-CUT filter. The device is compatible with minicomputers Raspberry Pi 4B / 3B+ / 3A+ / 2B / Zero. The module communicates via the connector CSI-2. The camera comes with a lens with a focal length of 6 mm, mounted with a CS-mount connector. The presented camera module supports the latest version of Raspberry Pi OS Bullseye (released on January 28, 2022) and libcamera applications.

Main features:

The camera is equipped with an IMX477 sensor in the format 1/2.3” 12.3 Mpx, ensuring a clear, sharp image. Maximum resolution 4056x3040px
Automatically activated depending on the lighting conditions IR-CUT filter
The set includes a dedicated CS lens with a focal length of 6 mm
The kit includes two cables to connect the Raspberry Pi in versions A and B as well as Zero

Specification:

Camera:

sensor: IMX477
format: 1/2.3 mm (diagonal 7.857 mm)
resolution: 4056x3040px, 12.3 MPx
pixel size: 1.55 x 1.55 um
built-in IR-CUT filter (supports both day and night vision)
interface: 4-line MIPI CSI-2
lens mounting method: CS-Mount
peak current: 300 mA

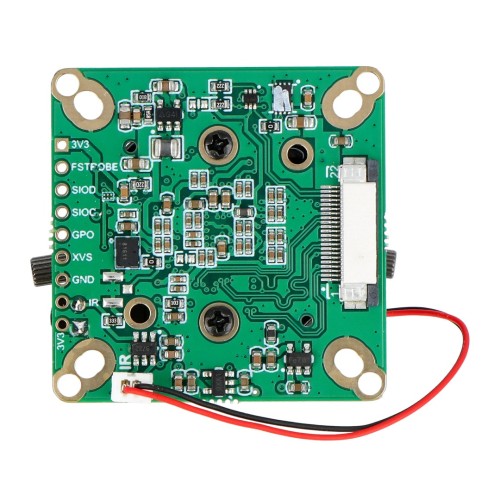

PCB size: 38 x 38 mm

Lens:

format: 1/2,3"
focal length: 6 mm
aperture: F1.2
viewing angle: 65°
assembly: CS-Mount
rear focal length: 7.53 mm
MOD (minimum distance to the object): 0.2 m
Dimensions: 30 x 31 mm
Weight: 53 g

Set includes:

Camera IR-CUT IMX477 12.3MPx HQ - 1 pcs
6 mm CS-Mount lens - 1 pcs
Ribbon cable 15-22 pin 12'' - 300 mm (for RPi A and B series) - 1 pcs
22-pin ribbon cable 3.15'' - 300 mm (for RPi Zero) - 1 pcs
