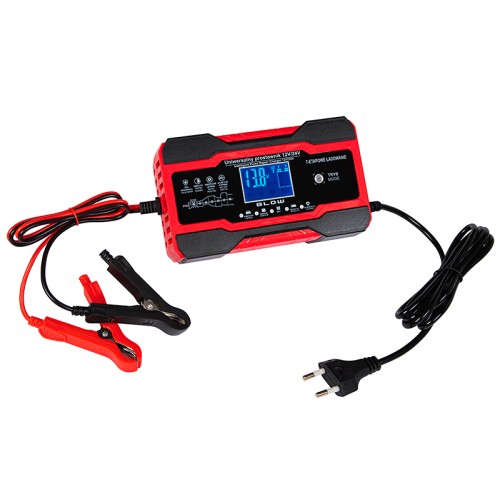

Automatic rectifier 12V/10A-24V/5A BLOW

RECTIFIER POWER IS VERY IMPORTANT

Please note that this battery generates a current of up to 10A, which guarantees quick charging of any 12V and 24V battery. WORKS WITH START & STOP BATTERIES

FITS ALL 12V AND 24V BATTERIES FROM 4Ah TO 150Ah

KEY FEATURES:

• BATTERY REPAIR MODE
• FAST CHARGING 12V and 24V
• AUTOMATIC SUMMER AND WINTER MODE
• EASY TO READ LCD DISPLAY
• MODERN MICROPROCESSOR
• MULTIPLE SECURITY SYSTEMS
• SMALL SIZE
• FOR BATTERIES FROM 4Ah TO 150Ah

FOR CARS, MOTORCYCLES, BOATS AND OTHER VEHICLES WITH A 12V OR 24V BATTERY

AUTOMATIC SMART RECTIFIER ALLOWING TO CHARGING BATTERIES IN:

• PASSENGER CARS
• TRUCKS
• MOTORCYCLES
• BOATS
• FORKLIFTS
• LAWNMOWERS
• BICYCLES
• TOYS
• ALARMS
• AND MANY OTHERS

EASY TO USE

This charger comes with an automatic charging function, which means it is extremely simple to use.

Once connected to the battery, it automatically adjusts the charging parameters, eliminating the need for manual setting.

HIGHEST QUALITY COMPONENTS - GUARANTEE OF FAILURE-FREE OPERATION FOR YEARS

• overcharge protection
• fire protection
• overvoltage protection
• overheating protection
• protection against incorrect connection of connectors
• inductive protection
• connectors insulated with a thick layer of PVC
• air cooling
• thick wires

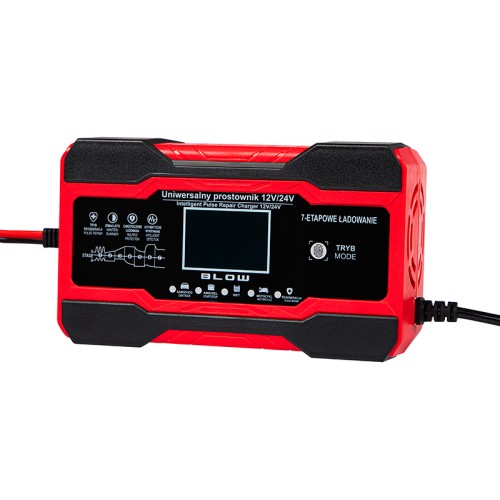

TOUCH PANEL

The automatic charger has a practical and intuitive control panel. Its operation resembles that of a mobile phone, which makes it easy to use.

EASY TO READ LCD DISPLAY
The clear display provides the user with all the information, for example:

• temperature
• battery charge level expressed in volts
• charging intensity level expressed in amps
• information about full battery charge
• battery repair mode
• incorrectly installed connectors (plus confused with minus on the battery terminals)
• the charger does not charge
• battery charge level indicator

4 WORKING MODES:

• CAR/TRUCK - for charging large batteries (maximum current load 12V - 10A, 24V - 5A)
• AGM - for charging AGM, Gel and other batteries
• MOTORCYCLE - for charging small batteries (current load will not exceed 1.5 A)
• REPAIR - battery repair mode
  The MODE button is used to change operating modes.

BATTERY REPAIR MODE

The repair mode is designed to regenerate batteries that have lost their capacity. The repair mode helps restore the internal structure of the battery. This allows you to extend the life of a poorly performing battery. Instead of replacing the battery with a new one, the repair mode gives you a chance to restore its efficiency and continue using it for a longer period of time.

This is not only an economical solution, but also friendlier to the environment and your wallet.

SECURITY

The rectifier is equipped with an intelligent microprocessor which cuts off the power in the event of undesirable situations that may result in danger or a threat to health and life.

The processor protects against:

• short circuit,
• overload,
• overheating,
• fire,
• too low voltage,
• too much tension,
• reverse connection of cables
• paralysis

FOR START & STOP SYSTEMS

A specialized charger optimized for charging batteries with the Start & Stop system, which is a solution increasingly common in new cars.

On the one hand, this system provides many benefits, e.g. it minimizes exhaust emissions, but on the other hand it uses the battery very intensively. You can also charge the battery used in the Start & Stop system with the charger.

SUMMER AND WINTER MODE

In case the rectifier detects temperature:

above 29°C - summer mode is activated
below 11°C - winter mode is activated
Depending on the detected temperature, the appropriate icon will light up on the screen and the charger will optimally charge the connected vehicle/device.

SUITABLE FOR DIFFICULT CONDITIONS

BUILT-IN FAN

The rectifier is equipped with a fan that ensures the correct operating temperature of the device and prevents overheating.

STRONG HOUSING MADE OF DURABLE ABS MATERIAL

The rectifier is equipped with a thick housing made of durable ABS plastic, which is highly resistant to cracks and both low and high temperatures.

APPLICATION

• SLA batteries
• VRLA Batteries
• AGM Batteries
• Gel batteries
• Lead-acid batteries
• Liquid electrolyte batteries

• Passenger cars
• Trucks
• Toys for children
• Emergency power source
• Cordless lawnmowers
• Cordless scythes

TECHNICAL DATA:

• power supply: 230V AC
• output voltage: 12/24V
• output voltage without load: 13.8V
• Initial minimum voltage: >2V
• output current: 12V 10A, 24V 5A
• air cooling (fan)
• battery charge level indicator
• voltage and charging current indicator
• ambient temperature sensor (if the temperature drops below 10 degrees Celsius)
• the charger will increase the charging voltage if the temperature rises above 29
• degrees Celsius the rectifier will reduce the charging voltage)
• signaling bad battery connection/contamination
• contacts/battery damage
• dimensions: 158x95x62mm
• power cord length: about 150 cm
• Length of cables with terminals: about 65 cm

4 WORKING MODES:
car battery charging (30-150Ah) - (12V - max. charging current 10A) / (24V - max. charging current 5A)
charging an AGM or calcium battery
charging a small capacity battery (6-30Ah) - max. charging current 1.5A
battery repair: repair of old, sulphated batteries (not all batteries are repairable)

HOW TO CORRECTLY CONNECT THE RECTIFIER?

1. Connect the RED charging clamp to the + POSITIVE terminal on the battery.

2. Connect the BLACK charging clamp DIRECTLY TO THE BATTERY. (Do not attach clamps to the carburetor, fuel lines, painted or sheet metal body parts)

3. Insert the plug into the electrical outlet and turn on the charger.
