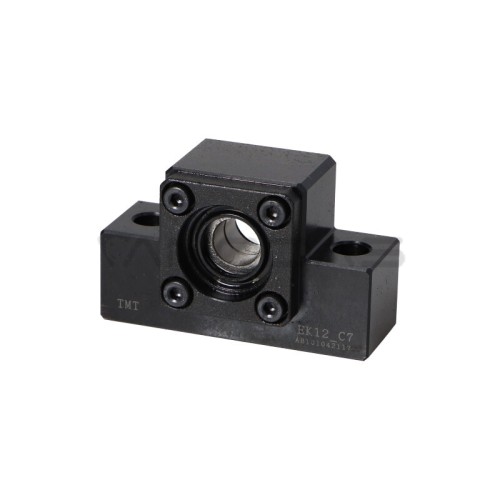

Bearing block EK12 C7 drive side
Ex Tax: 58.68€
Characteristics :
- The EK12 bearing block is mounted on the drive side of the screw
- Two angular contact bearings with an internal diameter of 12 mm are used
- The bearings transfer thrust loads in both directions
- Sealing rings protect the bearings against dirt
- Bearings lubricated with high-quality grease
- The design of the bearing block allows it to be mounted in a vertical position
- Interchangeable with other brands such as THK, NSK, MISUMI, KURODA, SYK, HIWIN
- Accuracy class C7
- Suitable for bearing ball and trapezoidal screws with diameters from 14mm to 16mm and any pitch
- Compatible with EF series blocks
Length (L): 24 mm
Height (H): 43 mm
Diameter (d1): 12 mm
Base Width (B1): 36 mm
Height with Base (H1): 24 mm
Total Width (B): 70 mm
Mounting Screw Size (M): M4
Screw Lengths:
L1: 6 mm
L2: 29.5 mm
L3: 6 mm
Pitch (P): 52 mm
Thickness (T): 19 mm
Width Tolerance (B +/- 0.02): 35 mm
Height Tolerance (H +/- 0.02): 25 mm
Dimension X: 9 mm
