BleBox dacBoxD DC - 2-channel WiFi controller - dimmer/speed controller - 5-24V - Android/iOS application

Brand: BleBox
Product Code: AN-25353
Availability: 4-7 business days
Planuojama gavimo data po užsakymo: 2026-06-15

51.80€
Ex Tax: 42.81€

Qty

Add to Wish List

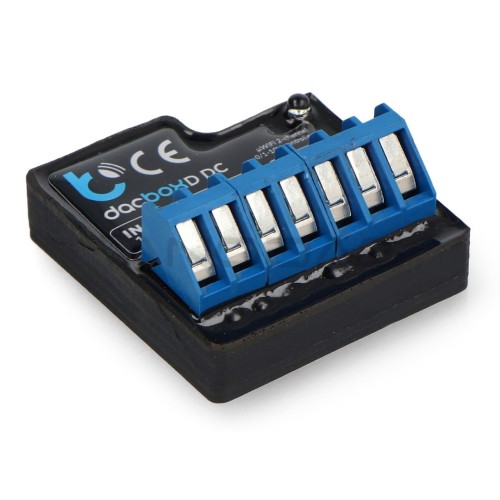

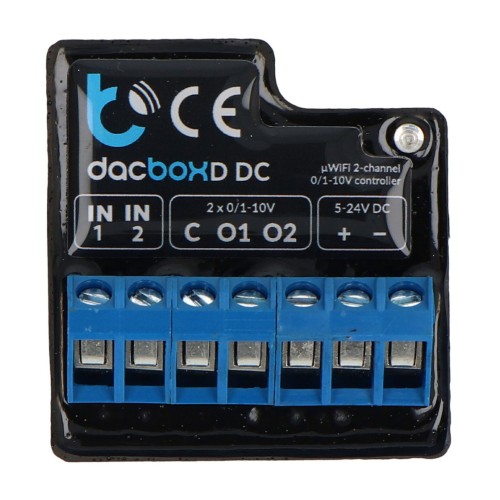

The BleBox dacBoxD DC is a two-channel controller that allows you to control the intensity of lighting, the speed of the device and the power of heaters and pumps. It supports analog signal standards from 0V to 10V and from 0V to 5V, and thanks to the safe power supply from 5V to 24V DC, it is ideal for home and industrial automation systems. The device allows local and remote control via Wi-Fi with a smartphone and offers a schedule with an astronomical clock function.

Specifications:

Model: dacBoxD DC
Power supply: 5V to 24V DC
Power consumption: < 1W
Protection: short circuit, reverse polarity
Number of outputs: 2
Output type: analog voltage output
Output voltage range: 0V to 10V / 1V to 10V / 0V to 5V
Maximum load: 20 mA per channel
Number of inputs: 2
Input type: optically isolated, logic, configurable, 5V to 24V DC, short-circuited to GDN
Supported buttons: monostable and bistable (without backlight)
API: open
Communication standard: µWiFi, compatible with WiFi 802.11g
Transmission frequency: 2.4 GHz
Transmission type: bidirectional, encrypted
Operating mode: direct connection, WiFi via router, remote access
Encryption: WPA2-PSK, authenticated encryption (AEAD)
Compatibility: iOS, Android, Windows (x64), macOS (ARM)
Mounting: in a flush-mounted box or in the device housing
Housing: polyurethane, self-extinguishing (class B)
Protection class: IP20
Operating temperature: from -20°C to 50°C
Dimensions: 41x39x17mm

Tags: blebox, dacboxd, 2-channel, wifi, controller, dimmer/speed, 5-24v, android/ios, application, led, strip, lighting, controllers
