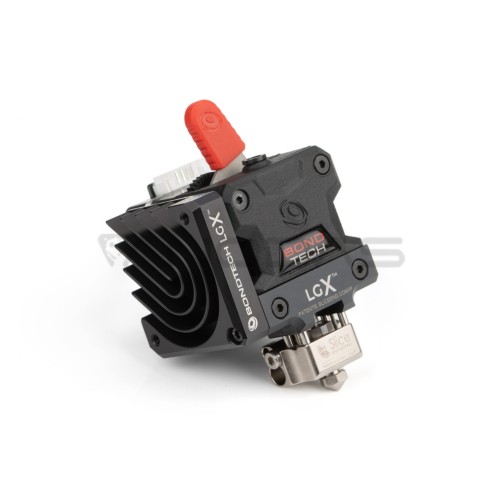

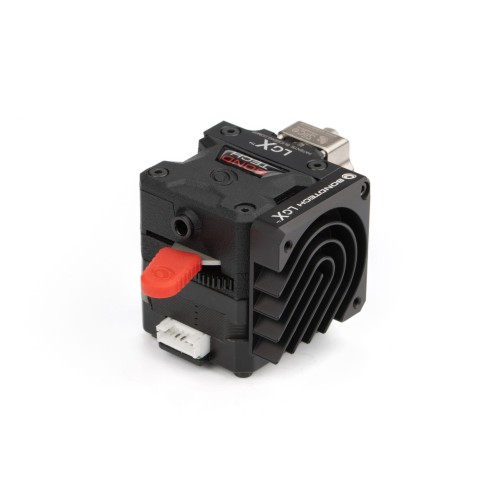

Bondtech LGX Shortcut Mosquito Printhead

The LGX Shortcut Mosquito Printhead is a special unit that includes the LGX Large Gears eXtruder and the LGX Shortcut short filament path hotend based on Copperhead, that will master all materials and excel with the soft and flexible.
The LGX Shortcut Mosquito Hotend includes a reversible heat sink that can be installed on the left or right-hand side of the cold block. The heat sink also includes the hole pattern for attaching 40 × 40 fans.
Our tests suggest a 4010 fan is enough to cool down the cold block and the cold zone of the heat break, even with such a small contact surface to the heat sink.
In case you have an application where additional cooling is required, try using a 4020 fan or 2 LGX heat sinks, one on each side.

Main features:

• Gives access to all available materials
• Enables to print flexible and soft materials faster
• It is small and light
• Allows mounting in many different ways


Specification:

• E-steps value: 400 using 16 micro steps; 800 using 32 micro steps
• Drive wheels: hardened steel
• Materials compatibility: abrasive; rigid; semi-flexible; flexible; and soft
• Mounting holes: M3
• Mounting patterns: bottom anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points)
• Holes on the sides of the LGX: 5 mm depth
• Holes on the bottom of the LGX: 12 mm depth
• Max. tightening torque on the extruder screws is 0.3 Nm
