CAN Bus module CA-IS3050G - Unit expansion module for M5Stack development modules

Brand: M5Stack
Product Code: AN-19119
Availability: 4-6 business days
Planned delivery date after ordering: 2025-08-08

22.30€
Ex Tax: 18.43€

Qty

Add to Wish List

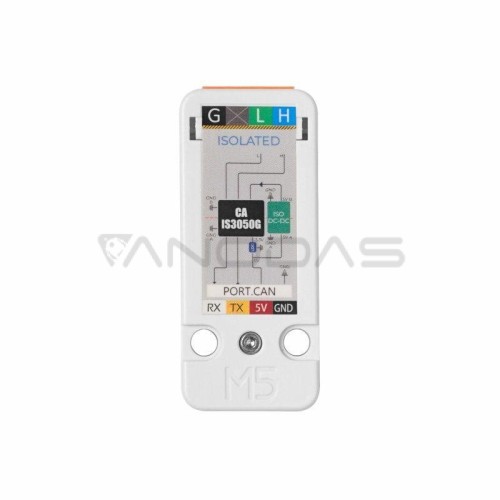

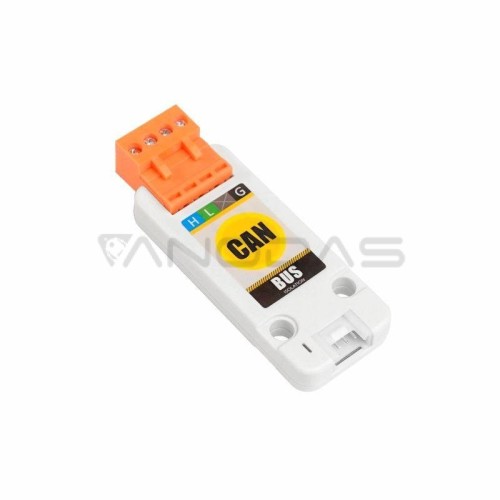

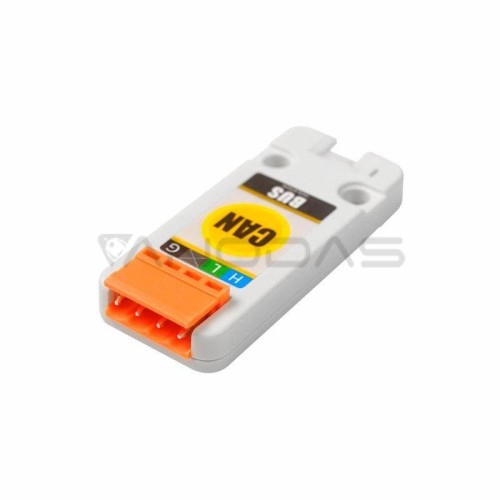

CAN transceiver unit in the form of a Unit type extension to the M5Stack family of development modules. It is a model of isolated CAN transceiver that can provide differential reception and differential transmission. CAN is an international ISO serial communication protocol and belongs to the Fieldbus category. The communication distance can reach 10 km - the transmission speed is then lower than 5 kbps. On the other hand, to maintain the maximum transmission speed of 1 Mb/s - the communication range should be less than 40 m.

Main features:

Used as CAN bus communication module
Used in industrial field control projects, security systems
Compatible with a series of development modules M5Stack
Supported programming platforms: Arduino, UIFlow (Blockly, Python)
Equipped with two holes compatible with LEGO standard

Specification:

Type: CAN bus transceiver unit
Embedded chip: CA-IS3050G
Rated maximum voltage: 1000 V
Maximum transmission speed: up to 1 Mb/s
Communication range:

up to 10 km - transmission speed less than 4 kb/s
up to 40 m - transmission speed of approx. 1 Mb/s

Number of nodes: 110
Delay: - 150ns
Operating voltage in common mode: from -12 V to 12 V
Protection: current limit, overvoltage protection, signal isolation, dynamic time-out function
Housing material: plastic (PC)

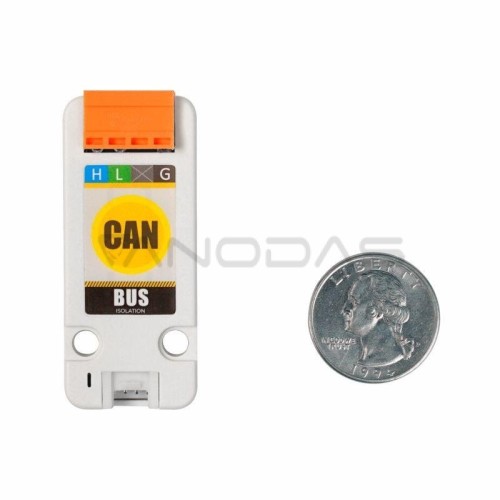

Module dimensions: 65 x 24 x 8 mm
Weight: 12 g

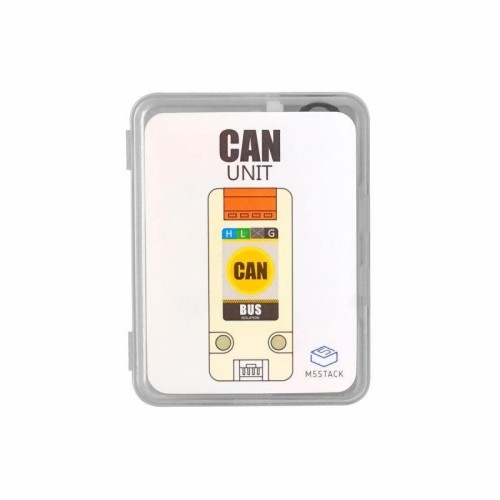

Set includes:

CAN Bus extension module Unit
Connection cable with Grove connector - length 5 cm

Tags: can, bus, module, ca-is3050g, unit, expansion, for, m5stack, development, modules, controller, and, accessories
