CDN-8 tool height sensor
Brand: Wagney
Product Code: MX-IW-CDN-8
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-06-09
Product Code: MX-IW-CDN-8
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-06-09
Ex Tax: 74.96€

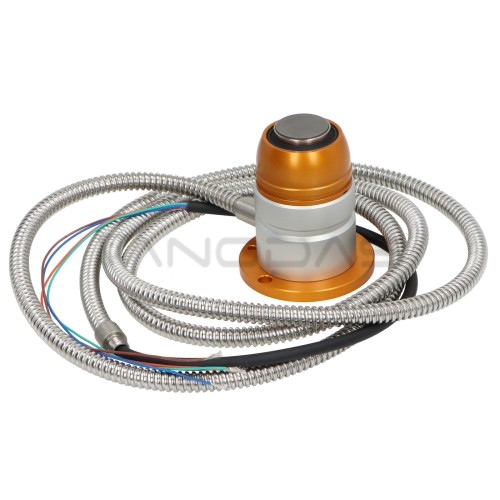

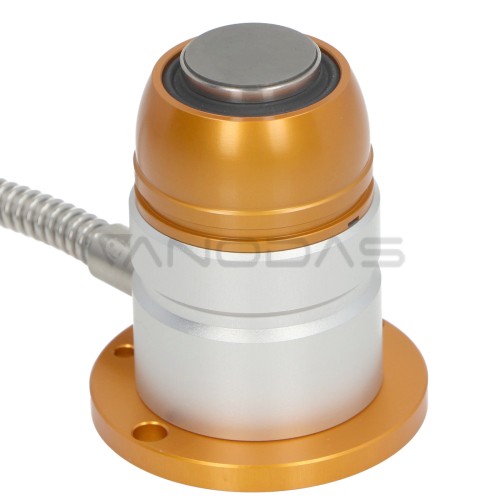

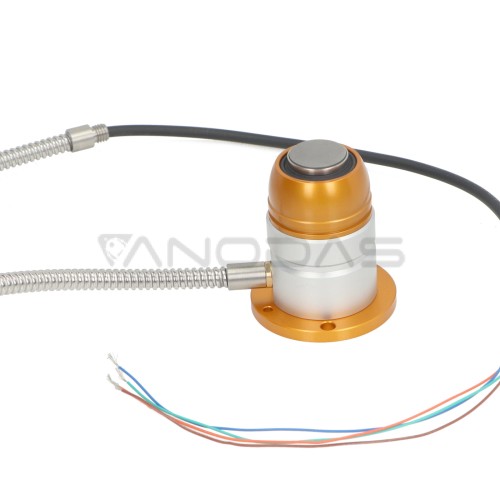

Professional tool length sensor with repeatability up to 0.01mm. The cable is routed in a metal armor that protects it against the effects of liquids and mechanical impacts. The measuring plate is made of ground carbide and allows you to measure the tool length during the rotation of the cutting tool. The measuring plate can be pressed in by a maximum of 5 mm and the force required to press is 1.5 Nm . Output mode: NC (normally closed)
Maximum stroke of the measuring plate: 5 mm
Repeatable positioning accuracy: 0.01 mm (working speed: 50-200 mm / min)
Service life: 3000000 times.
Pressure force: 1.5 N
Outer shell: anodized aluminum
Measuring plate: diameter 20 mm, ground carbide
Contact current: 20 mA (max.) Recommended value DC24V (10 mA) Resistive load
Cable: 1.5 meters. ,tensile strength 30 N, Minimum bending radius R7

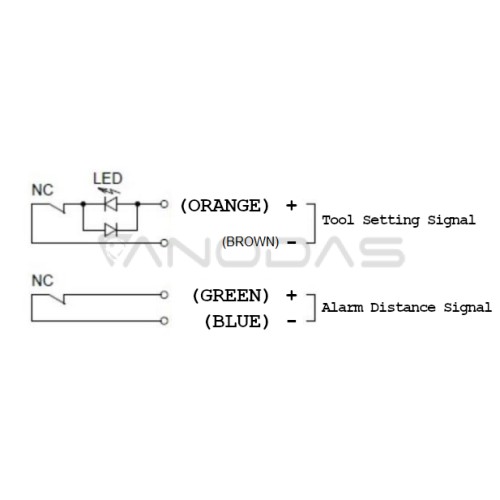

Stroke exceedance alarm : Exceeding the maximum stroke of the measuring plate: NC (normally closed), the signal is triggered at a distance of approximately 5 mm from the measurement signal.
Supply voltage: 24VDC
Maximum stroke of the measuring plate: 5 mm
Repeatable positioning accuracy: 0.01 mm (working speed: 50-200 mm / min)
Service life: 3000000 times.
Pressure force: 1.5 N
Outer shell: anodized aluminum
Measuring plate: diameter 20 mm, ground carbide
Contact current: 20 mA (max.) Recommended value DC24V (10 mA) Resistive load
Cable: 1.5 meters. ,tensile strength 30 N, Minimum bending radius R7
Stroke exceedance alarm : Exceeding the maximum stroke of the measuring plate: NC (normally closed), the signal is triggered at a distance of approximately 5 mm from the measurement signal.
Supply voltage: 24VDC
