COM.LoRaWAN 868MHz communication module

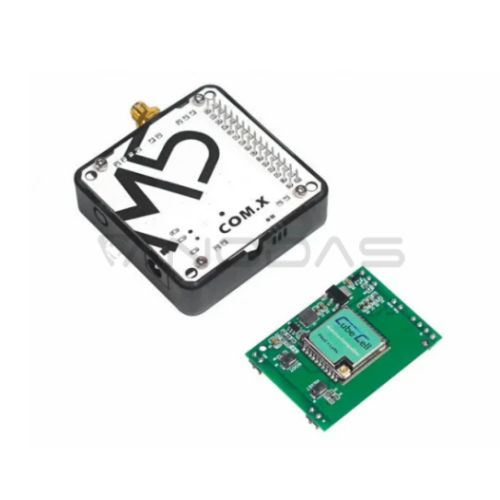

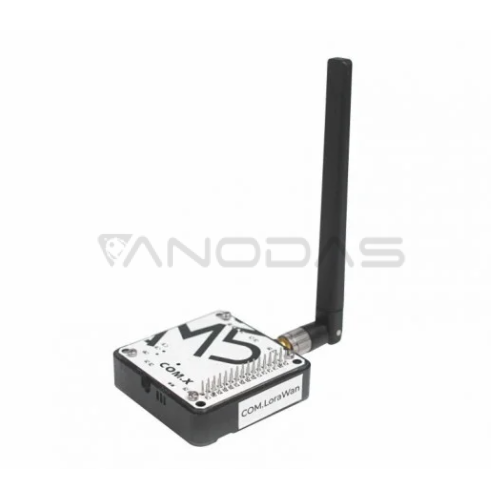

COM.LoRaWAN is an M5Stack series LoRaWAN communication module supporting node-to-node or LoRaWAN communication. LoRa is a wireless network technology, which is based on spectrum scattering technology and provides a transmission speed up to approx. 50 kbit/s. It enables communication over very long distances with extremely low power consumption. The module operates on the basis of ASR6501 chip and PSCoC4000 and SX1262 systems. The supported frequency band is 868 MHz and the specially designed design makes the device characterized by very low power consumption in deep sleep mode. On the underside of the module there is a direct current outlet, which can be supplied by an external power supply. There is also an external antenna included, used for better signal quality.

Suggested use:

• Automatic meter reading
• Home Automation
• Remote watering system

Pin configuration

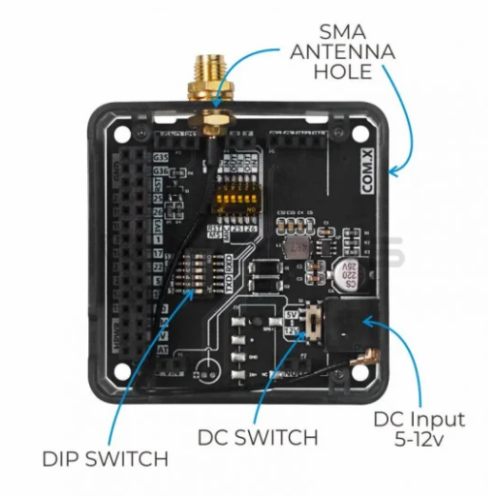

• Thanks to the DIP switch the configuration of pins should not be a problem even for the most beginner users. The relay is used to set the pins of the hardware serial port. The user only has to (if necessary) switch appropriate pins to ON status and specify them in the program.

Main features of the module:

• Modular construction
• LoRa / LoRaWAN support
• Module based on ASR6501
• 868 MHz frequency band
• UART communication interface
• SX1262 integrated circuit radio
• Arduino compatible module
• Very low power consumption design

Specification:

• Controller: ASR6501
• The frequency band: 868 MHz
• Communication interface: UART
• Protocol: AT Command
• Antenna: SMA
• Weight: 40 g
• Dimensions: 54.2 x 54.2 x 13.2 mm
