Controller Shelly PM Mini Gen3

Brand: Shelly
Product Code: PMminiGen3
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse Out of Stock

12.90€ 17.20€
Ex Tax: 10.66€

Qty

Add to Wish List

Description Product Delivery

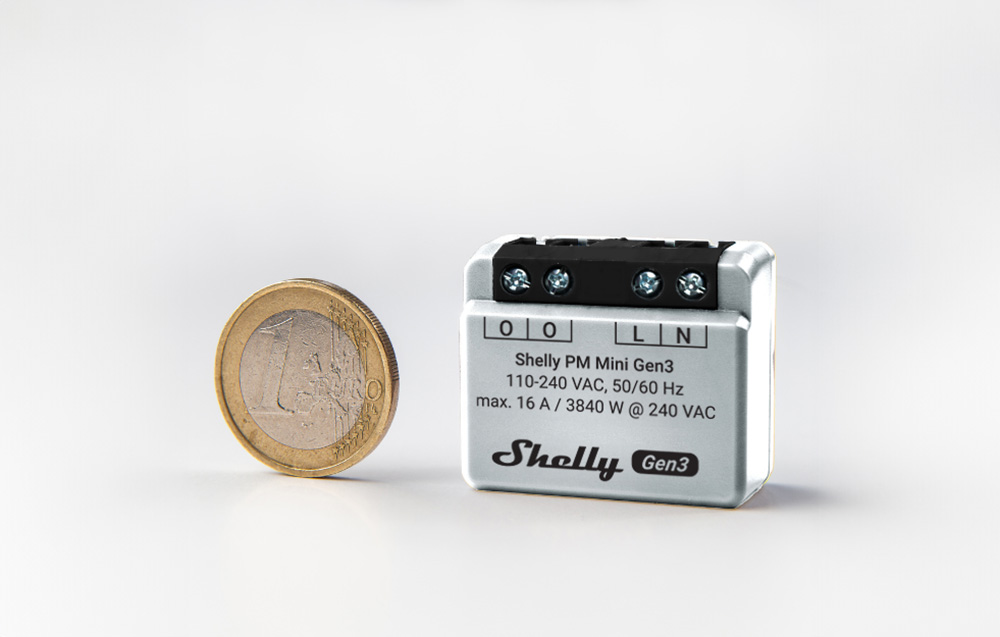

Shelly PM Mini Gen3 is a small, compact energy meter. For professional integrators, it provides additional options for end-customer solutions. It can run standalone on a local Wi-Fi network or be supported by cloud-based home automation services using MQTT, HTTP and WebSocket protocols. All incoming connections support TLS. The device is an updated version of the Shelly Plus PM Mini with a more advanced processor and larger memory.

The Shelly PM Mini Gen3 has remote control capabilities for configuration and monitoring. The device can also communicate with the automation system if they are on the same network infrastructure. It has a built-in web interface to monitor and control the device and customize its settings. In addition, the device comes with an improved processor and larger memory, which means performance.

The Shelly PM Mini Gen3 is designed as a small energy meter that allows you to monitor the energy consumption of connected devices. Thanks to its small form factor (29×34×16cm), PM Mini Gen3 can be easily placed in places that are difficult for other devices to reach.

The device has a BLE Gateway feature that acts as a bridge between Shelly BLU devices and the wider Shelly ecosystem. It can also act as a Wi-Fi range extender for IoT devices. In addition, it supports scripting and offers a wide range of integrations with third-party home systems using documented HTTP APIs, MQTT(s), webhooks over HTTP and HTTPS, UDP.

Shelly PM Mini Gen3 is mainly used to monitor the power consumption of connected devices in real time. This is useful for identifying devices that consume a lot of energy and optimizing their use to improve energy efficiency. You can also monitor the energy consumption of individual devices to assess their health and performance. Knowledge of energy consumption also allows you to estimate equipment operating costs and manage electricity costs. Due to its compact design, the device can be installed in standard electrical boxes and other places with limited space. It also supports remote access, so energy consumption can be monitored even when you are far from home.

Specifications:

Manufacturer: Shelly
Size: 29×34×16cm
Weight: 13g
Screw terminals maximum torque: 0.4 Nm / 3.5 lbs.
Wire cross section: 0.2 - 2.5 mm² / 24 - 14 AWG (single conductor, wire and sleeve tubes)
Cable length without insulation: from 6 to 7 mm
Installation: Wall box
Shell material: plastic
Ambient temperature during operation: -20°C to 40°C
Humidity: 30% to 70% relative humidity
Maximum height: 2000m
Power supply: 110-240 V AC
Energy consumption: < 1.2W
External protection: Tripping characteristic B or C, max. 16A max. nominal current, min. breaking capacity 6 kA, energy limit class 3
Power metering: Yes
Max. measuring voltage: 240V
Max. measuring current: 16A
Max. measuring power: 3840W
Wi-Fi protocol: 802.11 b/g/n
RF band: 2401 - 2495 MHz
Maximum RF power: < 20 dBm
Range: up to 30m / 100ft indoors and 50m / 160ft outdoors (depending on location conditions)
Bluetooth protocol: 4.2
RF band: 2400 - 2483.5 MHz
Maximum RF power: < 4 dBm
Range: up to 10 m indoors and 30 m outdoors (depending on local conditions)
Processor: ESP-Shelly-C38F
Memory: 8 MB

Tags: controller, shelly, mini, gen3, relay, and, meters smart, home controllers
