DAGU Wild Thumper motor 34:1 Neodymium iron boron magnet

Brand: Dagu
Product Code: DGU-09407
Availability: 3-5 business days
Planned delivery date after ordering: 2021-08-05
15.90€
Ex Tax: 13.14€

Qty

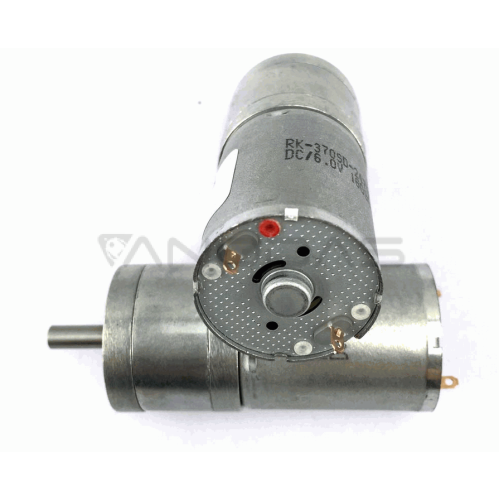

34:1 metal gearbox motor providing 7 kg/cm (0.69 Nm) of torque. The supply voltage is 6 V and the speed is 294 rpm.

Specification:

  • Supply voltage: 6 V to 7.5 V
  • Rated voltage: 6 V
  • Gearbox: 34:1
  • No-load current: 350 mA
  • The current at the stopped rampant: 3,4 A
  • Idle speed: 294 rpm
  • Torque at stopped shaft; 7 kg/cm (0.69 Nm)
  • Output shaft diameter: 4 mm type D
  • Output shaft length: 8 mm
  • Dimensions: 51 x 24 x 24 mm
  • Weight: 90 g
