DC 12V/24 brush motor - class 795 - 5mm axis -16000RPM - bearing - high torque

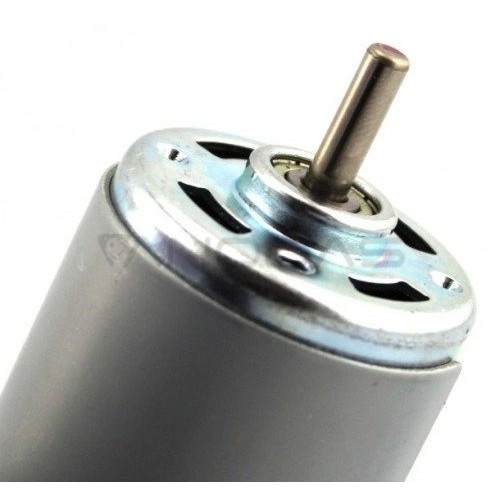

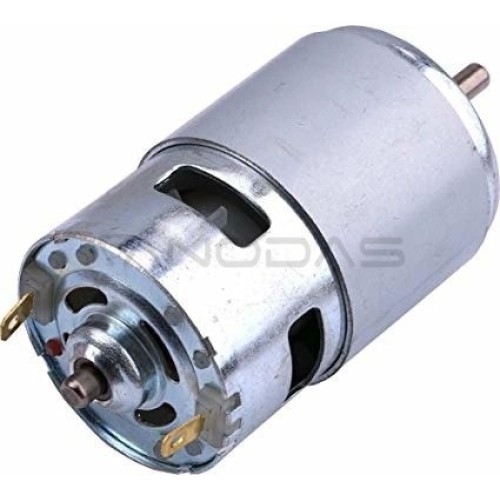

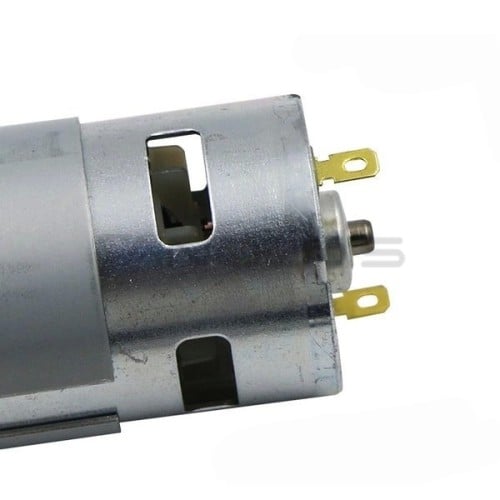

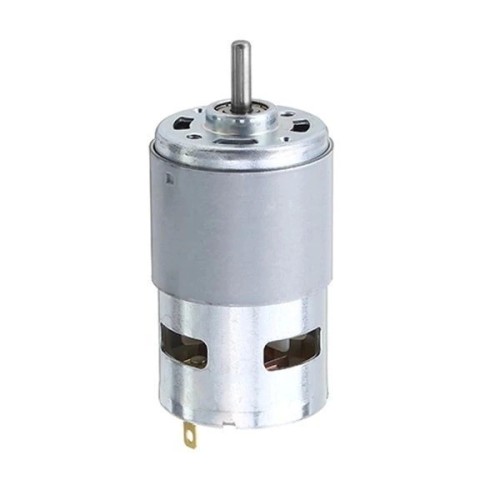

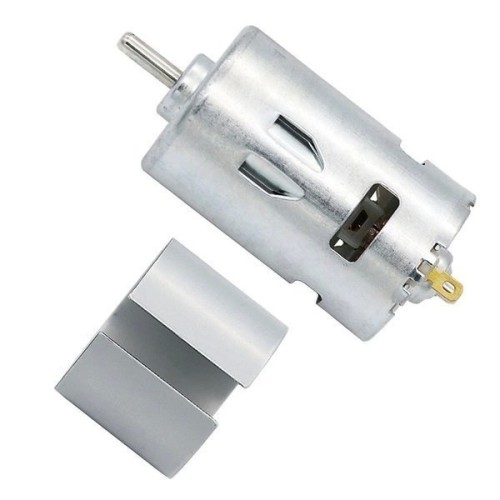

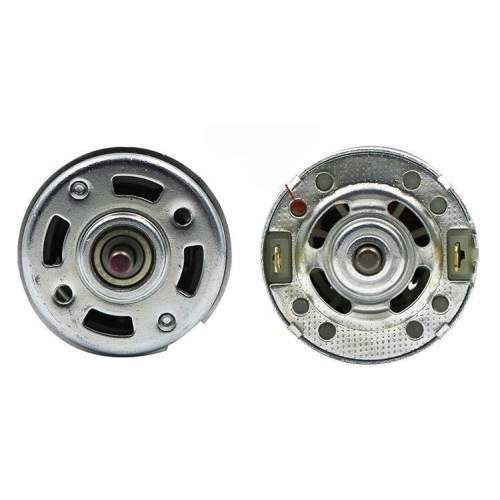

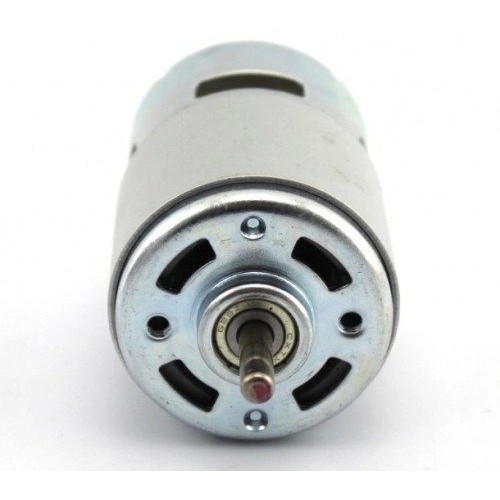

DC 12/24V brush motor class 795 - 5mm axis - 8000RPM (12V), 16000RPM (24V) Class 795 DC brush motor with an axis length of 16mm and a diameter of 5mm (with undercut), powered by DC 12/24V. The motor has a high-quality ball bearing on the shaft side and high torque. Dedicated to use in robotics, DIY projects, electrical devices, electric drives, etc. Product features
- Typical DC motors consist of the following components:
- rotor through which the external axis passes,
- windings wound on the rotor,
- the stator surrounding the rotor, which contains permanent magnets,
- a commutator that switches the windings on the rotor,
- brushes supplying power to the commutator.
- a built-in fan provides cooling to the winding

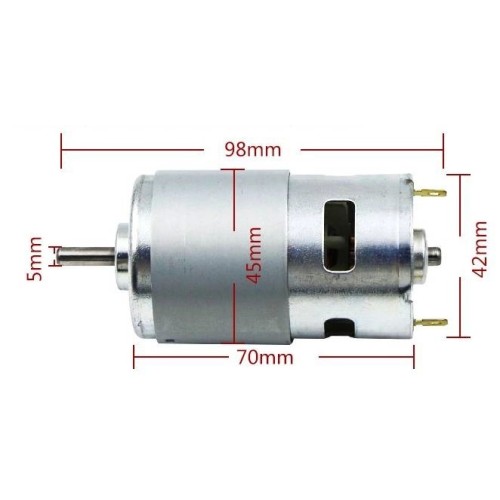

- Shaft length: 16 mm (axis length above step level)
- Shaft diameter: 5 mm
- Motor diameter: 42 mm
- Motor length: 70 mm
- Weight: 379g
- Spacing of mounting holes: 29mm
- Diameter of mounting holes: 2x M4
- Rotational speed: 8000RPM at 12V and 16000 at 24V
- Current consumption without load: 1.35A
- Max. current consumption: 10A
- Rated power: 100W
- DC brush motor 12/24V - class 795 - 1 pc.
