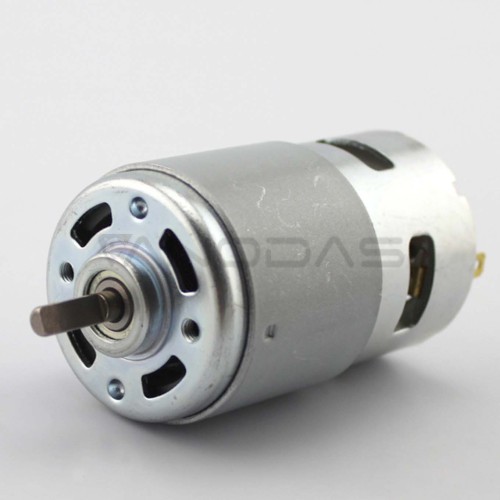

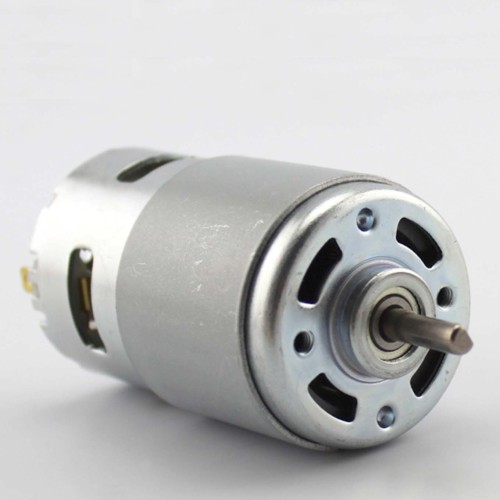

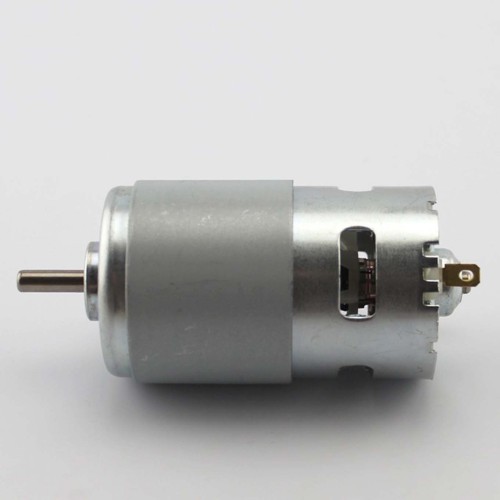

DC Motor Large Torque High Power 795 12V 8000rpm - 24V 16000rpm

Product Code: EL-10199
EAN: 4772164002218
Availability: Temporarily Out Of Stock
9.00€
Ex Tax: 7.44€

Qty

Specification:

  • Rated voltage: DC12V -24V Universal
  • No-load current: 2.05A (the size of the current fully reflects the solid workmanship)
  • No load speed: 12V10000-24V20000 turn
  • Motor step diameter: 17.5mm
  • Motor diameter: 42mm
  • Motor step height: 4mm
  • 795 Motor length (without shaft): 70.5mm
  • Out shaft length: 16mm
  • Motor tail step height: about 5mm
  • Motor tail shaft length: about 6mm
  • Mounting hole pitch: approx. 29mm
  • Mounting hole diameter: M4 screw
  • Rated power: 60W
  • Motor weight: 400g
  • Stent weight: 105g
  • Color: silver
  • material: metal
  • Product size: 9.8*4.5*0.5cm
  • Package Contents: 1* 795 DC Motor
