DFRobot Gravity Formaldehyde (HCHO) sensor 3.3~6V 0~5ppm 0.01ppm

This is a HCHO(CH2O) sensor module. It can be used to measure HCHO in air. Through it, you can know the air quality. This sensor module is widely used in many air testing applications, such as indoor air quality, real time quality monitoring stations. Our HCHO sensor module can detect and measure HCHO accurately. Many advantages are available, such as strong anti-jamming capability, high stability, ATC, high sensitivity(up to 0.01ppm) and long life(2 years in air). Integrated with Gravity Interface which is easy to used, wide input voltage, and optional output signal, Our module can be almost compatible with all MCU. According our sample codes , an HCHO detector can be made very quickly.

FEATURES

High stability and sensitivity

Automatic temperature compensation

Wide input voltage(3.3~6V)

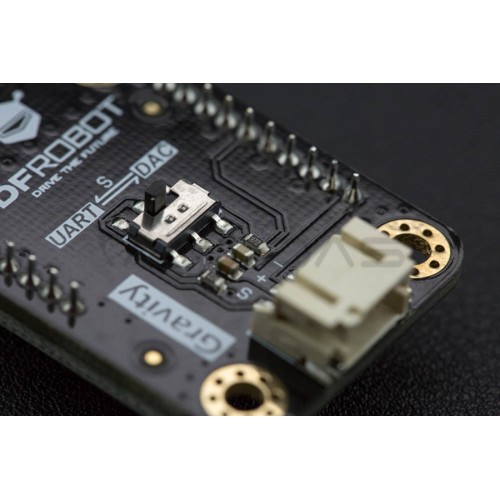

Support DAC and UART output

Long life(2 years in air)

High resolution (0.01ppm)

SPECIFICATION

Input Voltage: 3.3~6V

Target Gas: HCHO

Interference Gas: Alcohol, CO & etc

Detection Range: 0~5ppm

Resolution: 0.01ppm

Warm Up Time: ≤3 minutes

Response Time: ≤60 seconds

Resume Time: ≤60 seconds

Interface Type: Gravity-3Pin

Output Signal: Optional DAC(0.4～2V,for 0-5ppm) or UART(9600)

Operating Temp: 0~50℃

Operating Hum: 15%RH-90％RH(No Condensation)

Storage Temp: 0~50℃

Working Life: 2 years(in air)

Dimension: 38*28*15mm/1.50*1.10*0.59inches

Weight: 22 g

DOCUMENTS

Product WIKI

More Documents

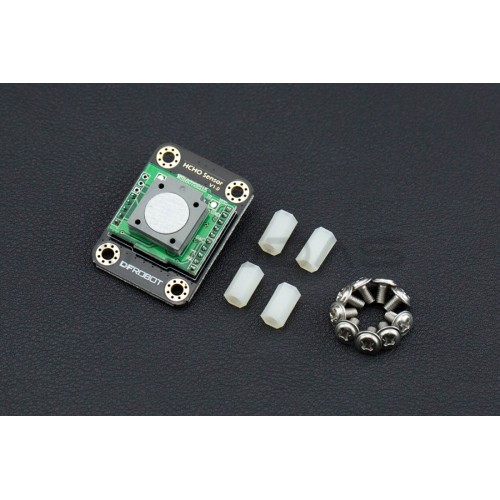

SHIPPING LIST

HCHO Sensor Module x1

Digital Gravity 3Pin Cable x1

M3 * 10 nylon column x4

M3 * 5 screw x8
