DFRobot module W5500 Ethernet + PoE, compatible with Arduino

Brand: Dfrobot
Product Code: DFR-04278
Availability: 3-5 business days
Planned delivery date after ordering: 2021-08-05
61.90€
Ex Tax: 51.16€

Qty

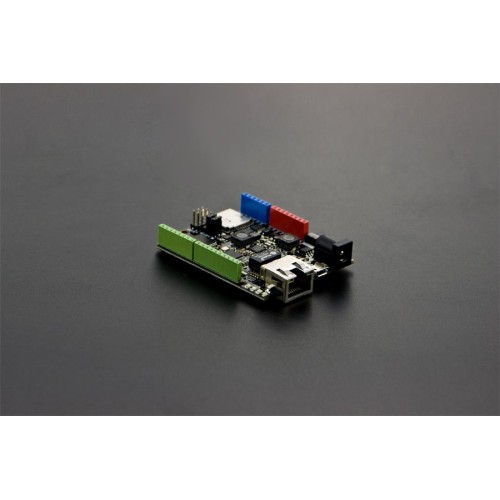

The DFRobot module with AVR Atmega32U4 microcontroller. It is equipped with 20 digital inputs/outputs, 7 of which are PWM channels, 6 analog, and interfaces: UART, SPI, I2C, USB. This version has a W5500 Ethernet network controller and a slot for microSD cards.

Specification:
  • Supply voltage from 7 V to 12 V
  • Input voltage PoE (Power Over Ethernet): 48 V AC/DC (standard 802.3 af)
  • Microcontroller: ATmega32u4 known with Arduino Leonardo
  • The number of digital pins: 20
  • The number of PWM channels: 7
  • Number of analog inputs: 6
  • Timing: 16 MHz
  • Flash memory: 32 KB (4 KB is reserved for the bootloader)
  • SRAM: 2.5 KB
  • EEPROM: 1 KB

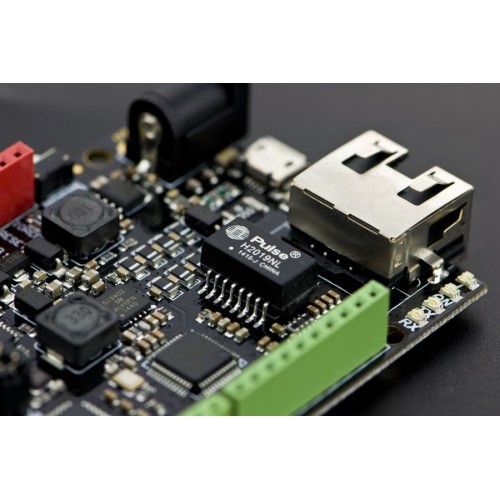

  • Ethernet Controller: W5500
  • Built-in reader for  microSD memory cards
  • Built-in RJ45 connector
  • Status LEDs

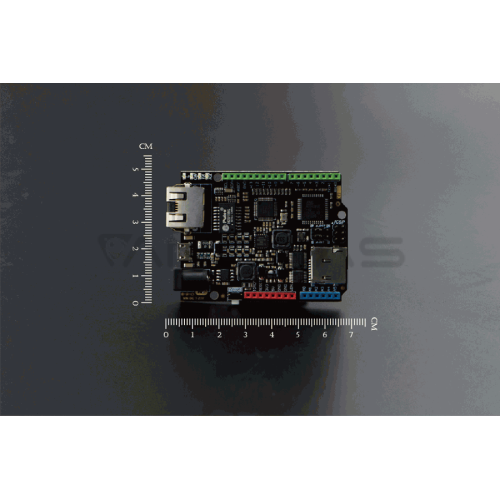

  • Board sizes: 73.5 x 53.5 x 15 mm
Set includes:
  • Green protection board made of acrylic
  • Mounting nylon screws
