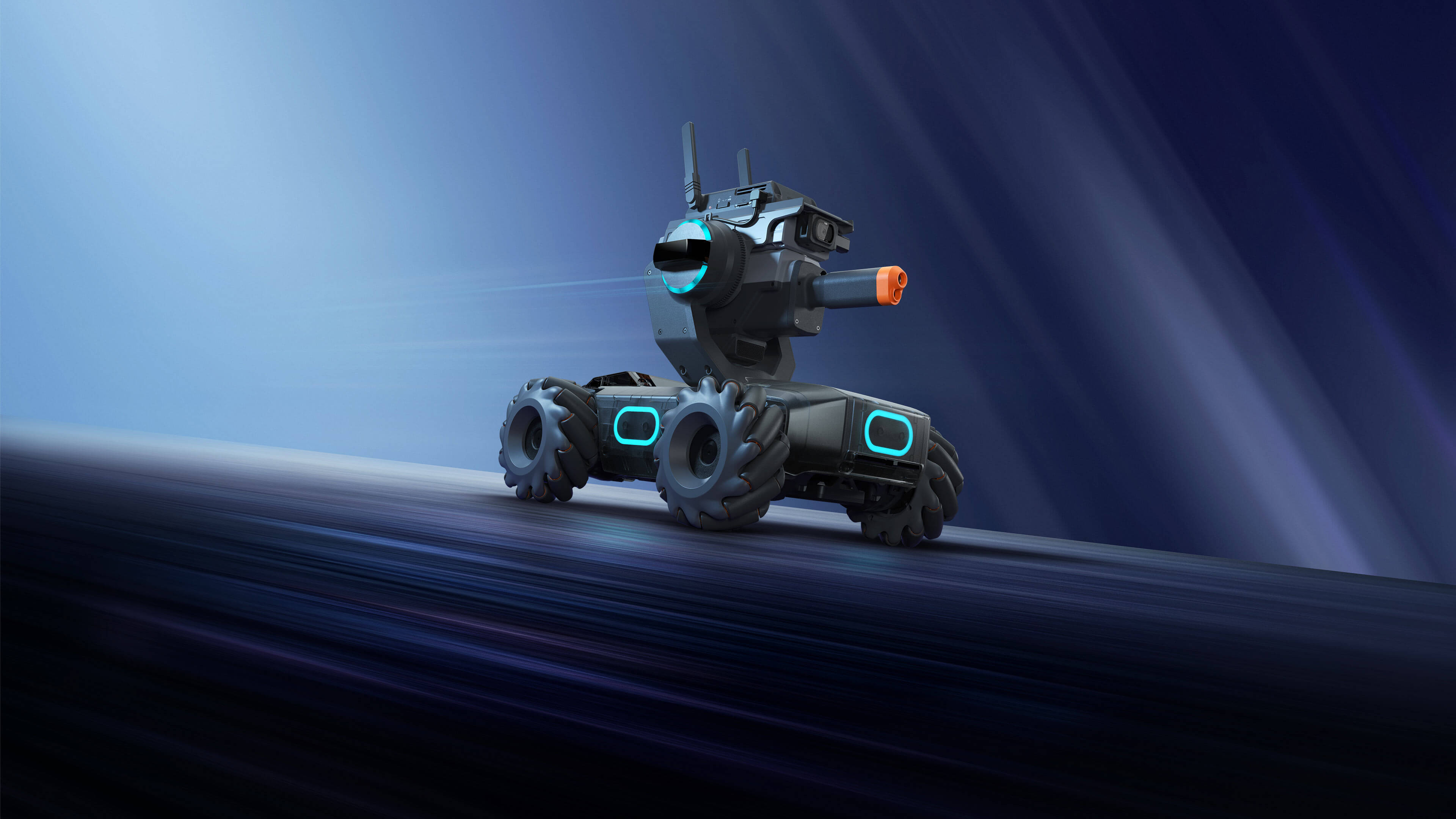

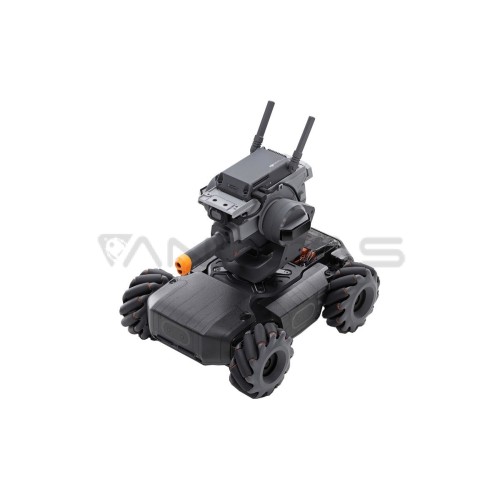

DJI RoboMaster S1

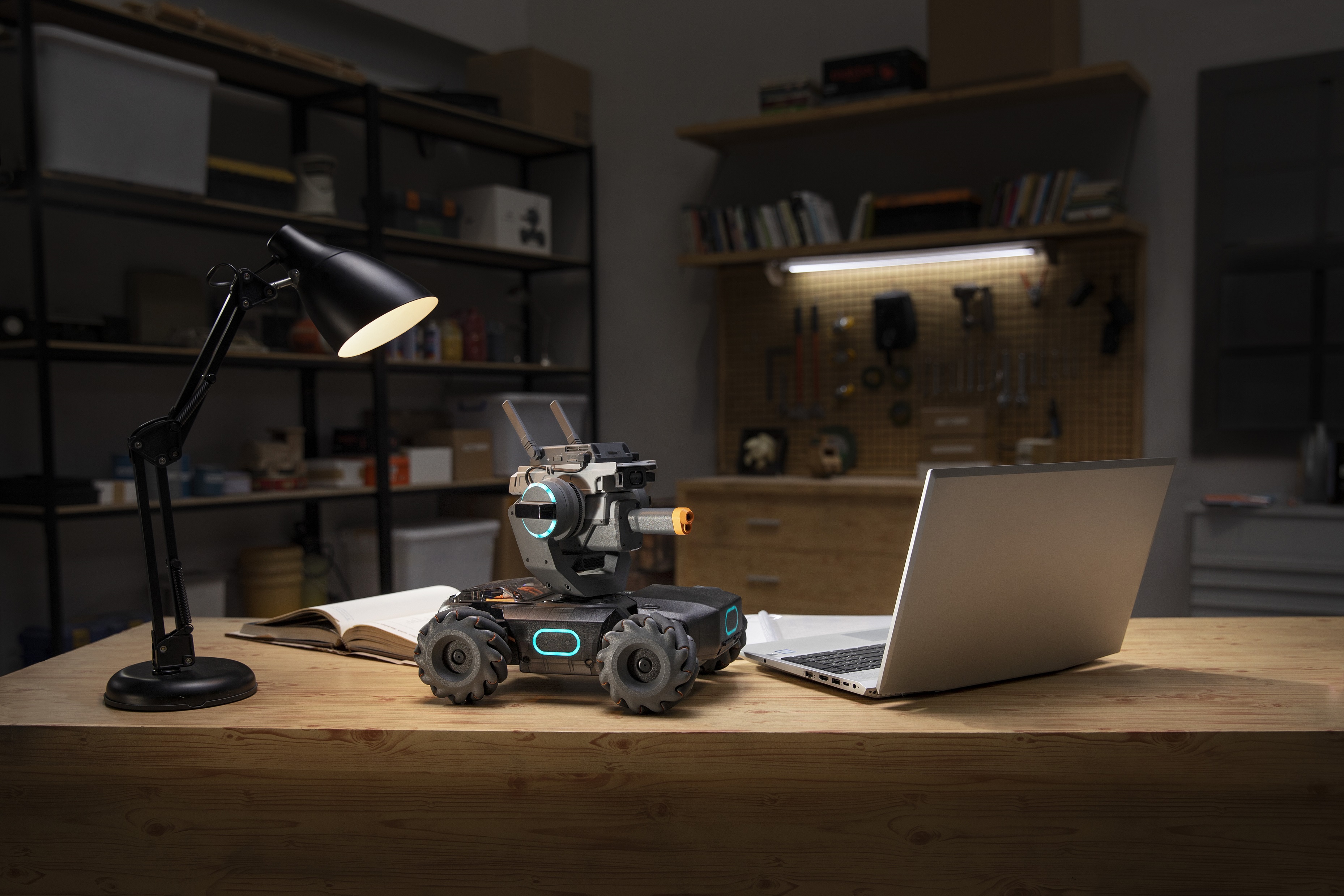

The RoboMaster S1 is an amazing educational robot, created for all fans of learning, programming and great fun at the same time. It will allow you to acquire knowledge in such fields of science as mathematics, physics, programming, and other issues, thanks to interesting gameplay modes and intelligent functions. It has 46 programmable DIY components, 6 programmable AI modules, low latency HD FPV transmission, many exciting combat modes, and armor with intelligent sensors. Thanks to the robot, you can learn Scratch & Python programming as well as move around with the 4WD drive.

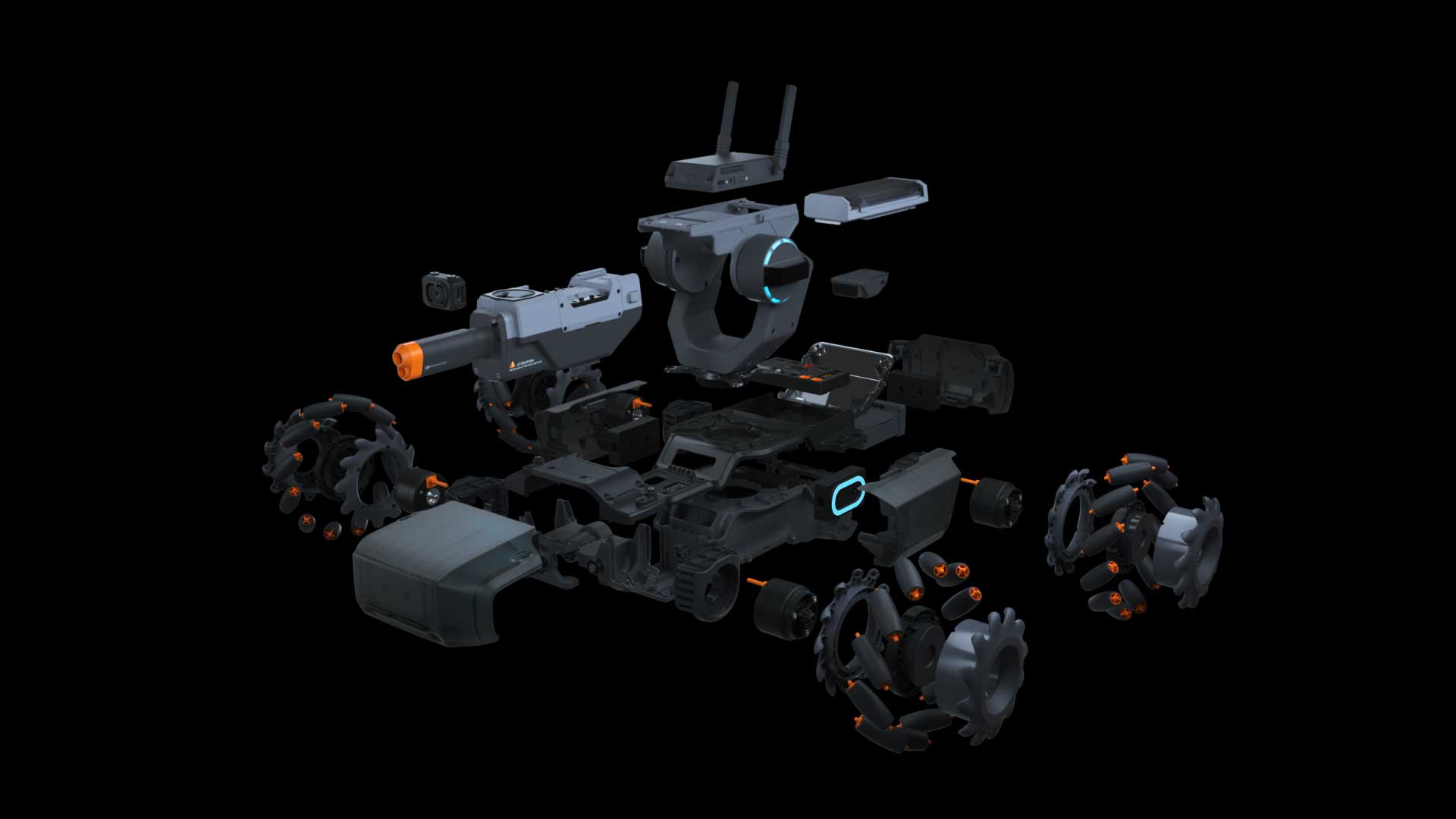

The Robomaster S1 is great fun not only because of its wide range of possibilities, but also because you have to assemble it yourself! It is great fun, will provide you with an extraordinary experience and will be a nice puzzle.

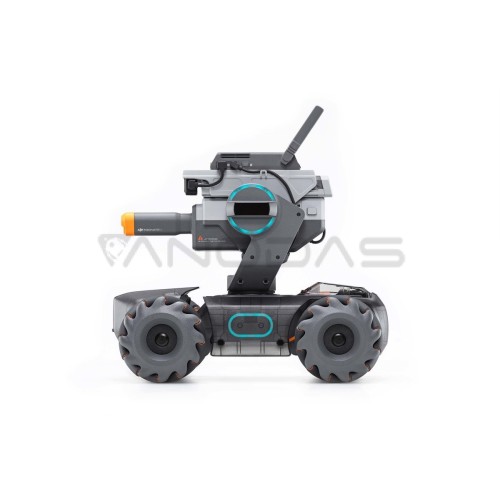

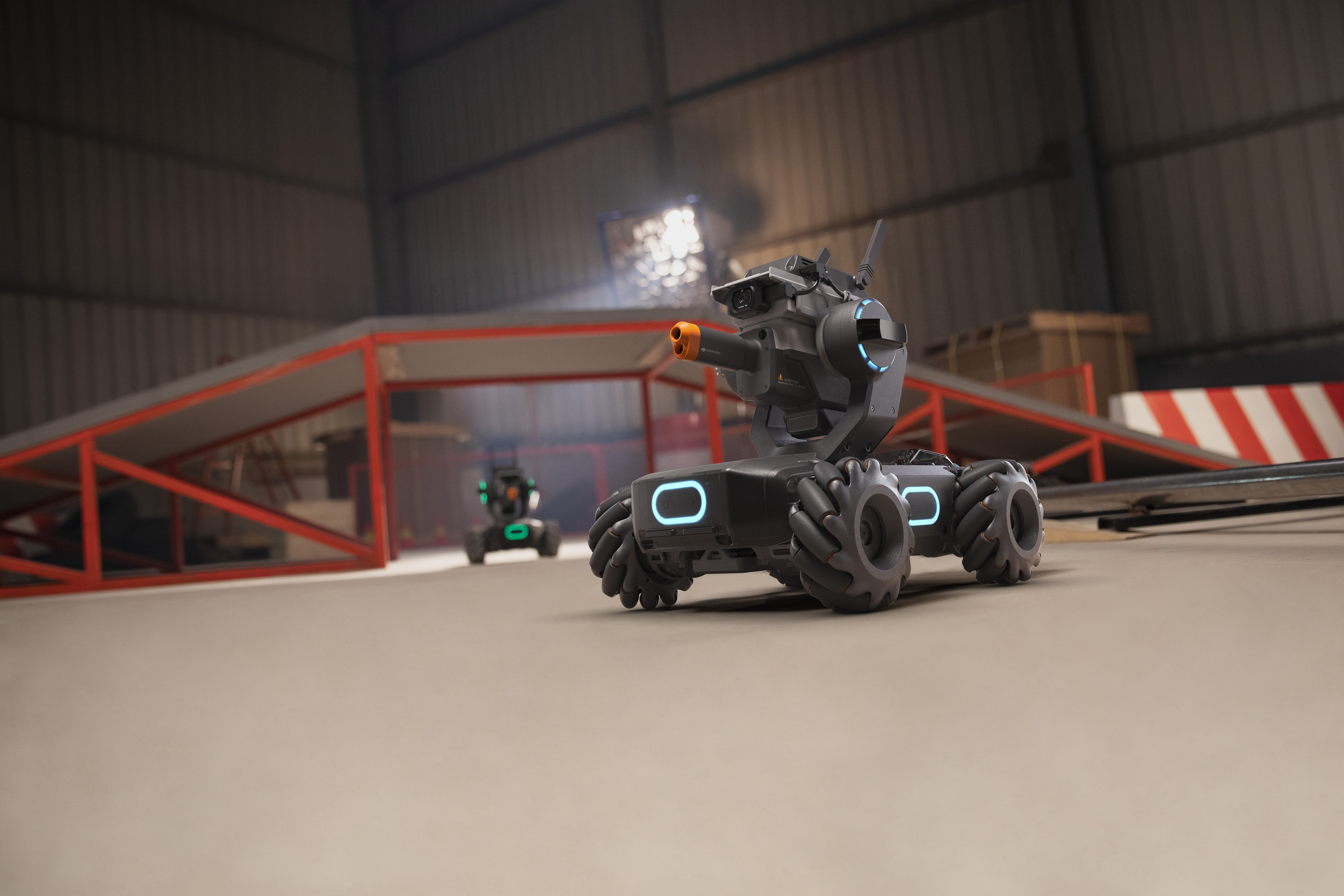

The robot has an intelligent controller that allows for high-resolution and low-latency image transmission and smooth transmission, enabling quick response to your commands. It also includes a 2-axis mechanical gimbal, a brushless motor, and Mecanum wheels that allow for multi-directional movement and extremely precise control. On the other hand, the armor with intelligent sensors protects the S1 robot by detecting the impact of gel balls or infrared beams. Thanks to the advanced system, the robot analyzes the hits and incorporates them into the game in real time.

Thanks to the ability to learn programming in Scratch & Python languages, it allows users to learn mathematics, physics and artificial intelligence technology in the most modern and extremely interesting way.

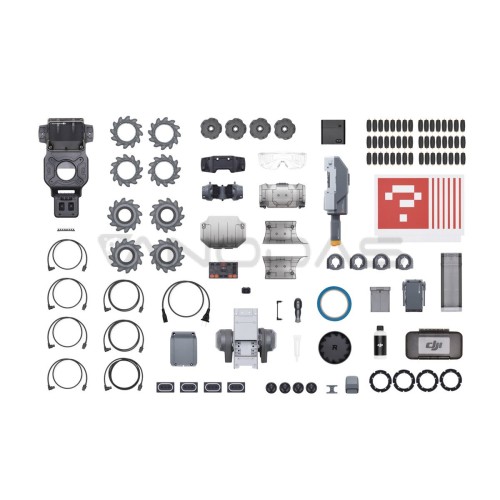

Thanks to the fact that the robot has as many as 46 configurable components, it gives you the opportunity to create your own innovations, helps you learn in an extraordinary and interesting way that will increase not only the S1's capabilities, but also yours. Artificial intelligence technology allows you to recognize gestures, sounds and even other S1 robots.

The set has vision markers with which you can create obstacles and even traffic lights. Write your own programs to let the S1 drive automatically and perform complex tasks. Thanks to the robot, you will learn the secrets of artificial intelligence, and at the same time you will have a lot of fun.

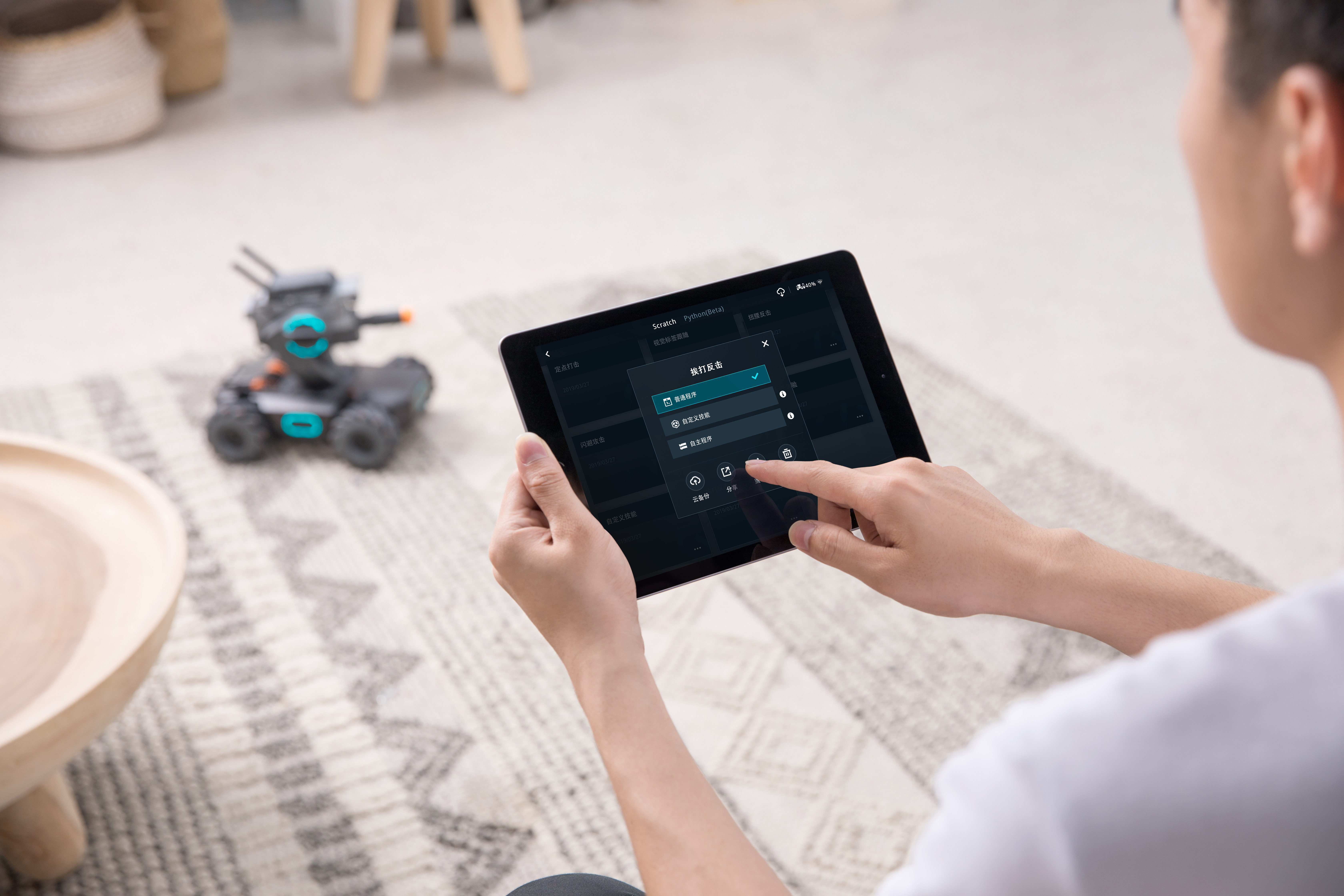

The RoboMaster app supports cross-platform interactions and a variety of operational methods for the S1 as well as rich educational resources and multiple combat modes. All functions and gameplay modes are available for iOS, Android and Windows, so you can control the robot not only with your smartphone or tablet, but also your computer. Write programs and share them with your friends by sharing them with the RoboMaster app.

Specification:

Camera:

• FOV: 120°
• Max Still Photo Resolution: 2560×1440
• Max Video Resolution: FHD:1080/30fps, HD:720/30fps
• Photo Format: JPEG
• Video Format: MP4
• Sensor: CMOS 1/4″; Effective pixels: 5 MP
• Operating Temperature Range: -10 to 40 °C (14 to 104 °F)

Narrow Infrared Units

• Effective Range [1]: 6 m (in indoor lighting conditions)
• Effective Area: Varies from 10° to 40° Effective area decreases as distance from the target increases.

Wide Infrared Units

• Effective Range [1]: 3 m (in indoor lighting conditions)
• Effective Width: 360° (in indoor lighting conditions)

Hit Detector

• Detection Requirements: For the Hit Detector to be activated, the following conditions must be met: Gel bead diameter ≥ 6mm, launching speed ≥20m/s, and the angle between the hit direction and hit detector plane is no less than 45°.
• Maximum Detection Frequency: 15 Hz

S1

• Weight: Approx. 3.3 kg
• Dimensions: 320×240×270 mm (length × width × height)
• Chassis Speed Range: 0-3.5 m/s (forward); 0-2.5 m/s (backward); 0-2.8 m/s (sideways)
• Max Chassis Rotational Speed: 600°/s

M3508I Brushless Motor

• Max Rotational Speed: 1000 rpm
• Max Torque: 0.25N·m
• Max Output Power: 19 W
• Operating Temperature Range: -10 to 40 °C
• Driver: FOC
• Control Method: Closed-loop speed control
• Protection: Overvoltage protection; Overtemperature protection; Soft-start; Short-circuit protection; Chip and sensor anomaly detection

Blaster

• Controllable Launching Frequency: 1-8/s
• Max Launching Frequency: 10/s
• Initial Launching Speed: Approx. 26 m/s
• Average Load: Approx. 430

Gimbal

• Controllable Range: Pitch: -20° to +35°; Yaw: ±250°
• Mechanical Range: Pitch: -24° to +41°; Yaw: ±270°
• Max Rotational Speed: 540°/s
• Vibration Control Precision (on the flat surface and with the Blaster idle): ±0.02°

Intelligent Controller

• Latency [2]: Connection via Wi-Fi: 80-100ms; Connection via Router: 100-120ms (unobstructed, free of interference)
• Live View Quality: 720p/30fps
• Max Live View Bitrate: 6 Mbps
• Operating Frequency [3]: 2.4 GHz, 5.1 GHz, 5.8 GHz
• Operating Mode: Connection via Wi-Fi, Connection via Router
• Transmission Standard: IEEE802.11a/b/g/n

Intelligent Battery

• Capacity: 2400 mAh
• Nominal Charging Voltage: 10.8 V
• Maximum Charging Voltage: 12.6 V
• Battery Type: LiPo 3S
• Energy: 25.92 Wh
• Weight: 169 g
• Operating Temperature Range: -10 to 40 °C (14 to 104 °F)
• Charging Temperature Range: 5 to 40 °C (41 to 104 °F)
• Maximum Charging Power: 29 W
• Battery Life in Use: 35 minutes (measured at a constant speed of 2 m/s on a flat surface)
• Battery Life on Standby: Approx. 100 minutes

Charger

• Input: 100-240 V, 50-60Hz, 1A
• Output: Port: 12.6 V=0.8A or 12.6 V=2.2A
• Voltage: 12.6 V
• Rated Voltage: 28 W

Gel Bead

• Diameter: 5.9-6.8 mm [2]
• Weight: 0.12-0.17 g [2]

App

• App: RoboMaster
• iOS: iOS 10.0.2 or later
• Android: Android 5.0 or later
