Dobot Magician - Robot Vision Kit

Product Code: ROB-13698
Availability: Temporarily Out Of Stock
2,832.90€
Ex Tax: 2,341.24€

Qty

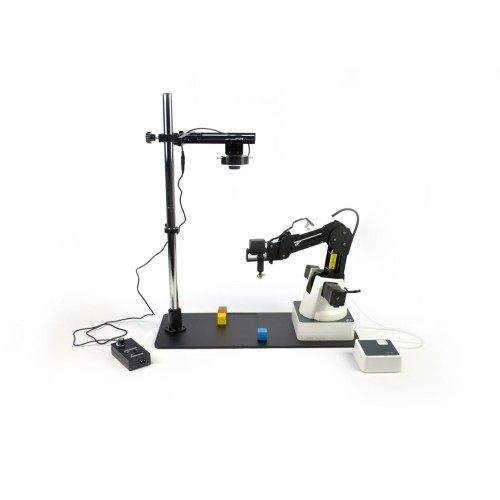

Set hardware platform for development of visualization system of robots, along with Dobot Magician allows you to integrate your surveillance system with the automation system robots. With this system you can also carry out research on vision, modeling, artificial intelligence or to develop applications, and industrial, based on the image.

In addition to the basic software to support the vision of the robot, the manufacturer has provided the source code for the study of software development associated with the robot. The demo project consists of two parts: the calibration of the robot and sort based on color.

Attention!

Set contains manipulator Dobot MAG, they must be purchased separately.

Specification

Surveillance camera - color HD
Product number JHSM300f
Sensor size 1/2'CMOS
Sensor type MT9T001
Number of effective pixels 3 million
Color

Color

Pixel size

3.2 x 3.2 µm

Frame rate / resolution

12 / 2048 x 1536

Filter

650 nm

SNR

42 dB

Dynamic range

61 dB

Shutter type

Exposure

The exposure time

50,8 µm - 3329 ms

Exposure control

auto / manual

Size

45 x 45 x 40 mm

Data interface

USB 2.0

Operating temperature

0 °C to 70 °C



A white light source
Product number JHZM-A40-
Color White
The number of LEDs 48
Lighting 40000 lux
Brightness

Smoothly adjustable, color remains constant in an adjustable range from 0 % to 100 %

The length of the beam

from 455 nm to nm at the rate of 457.5

Output voltage

12 V

Output power

from 3.5 V to 5 V

Work distance

from 35 mm to 11 mm

Dimensions

Inner diameter: 40 mm

Outer diameter: 70 mm

Height: 25 mm

The outer diameter of the lamp

Max. Φ 39 mm

Weight

0.48 kg

Working conditions

Temperature: 0 °C to 40 °C

Humidity: 20% to 85% RH

Storage conditions

Temperature: -20 °C to 40 °C

Humidity: 20% to 85% RH

16mm lens
Type M1614-MP2
Focus 16 mm
The maximum ratio of lens diameter to its focal length 1: 1,4
The maximum image size The 8.8 x 6.6 x (φ 11) mm
Operating range

Hole: F1. 4 - F16C

Focus point: 0.3 m-Inf



Control

Hole: mechanical

Focus point: malunala

The size of the object

16.5 mm x 12.4 mm x 2/3 "

Angle:
D   38.0°   28.2°
H 2/3" 30.8° 1/2" 22.7°
V   23.4°   17.1°
Operating temperature

-20 °C to 50 °C

The permission indicator

In the center and the edge, more than 100 (lines/mm)

The indicator strain
2/3"

-0,1%

(y =5,5)

1/2 "

-0,3%

(y = 4,0)

Back focus

13.1 mm

The length of the lining collar

17,526 mm

The lens mount

Mount C

Filter size

M30,5P + 0.5 mm

Size

φ 33.5 mm × 28,2 mm

Weight

65 g

Working distance (mm)
300 250 200 150 100
Optical zoom
0.05 X 0.06 X 0.08 X 0.10 X 0.15 X
Spring ring (mm)
Null 0.5 0.5 1.0 1.5



Set includes

  • Base:
    • dimensions: 560 x 220 x 7 mm
    • working area: 205 x 118 mm
  • Camera lens industrial
  • Set oświetlacza camera:
    • Power adapter x1
    • The light source x1
  • Telescope x2
  • Black and white plate for calibration
  • The pedestal for a telescope
  • Holder for camera in the form of H
  • Video camera, and USB cable
  • Building blocks:
    • 10x red
    • 10x yellow
    • 10x blue
    • 10x green
  • Mounting kit
    • 18x bolts for mounting
    • 6x nut
    • 6x washer
    • 2x key 2,5 / 5 / 6 mm
