Dual-channel RS485 Expansion Hat - for Raspberry Pi 4B - DFRobot DFR0824
Brand: Dfrobot
Product Code: AN-22929
Availability: 4-6 business days
Planned delivery date after ordering: 2024-05-21
Product Code: AN-22929
Availability: 4-6 business days
Planned delivery date after ordering: 2024-05-21
Ex Tax: 33.80€

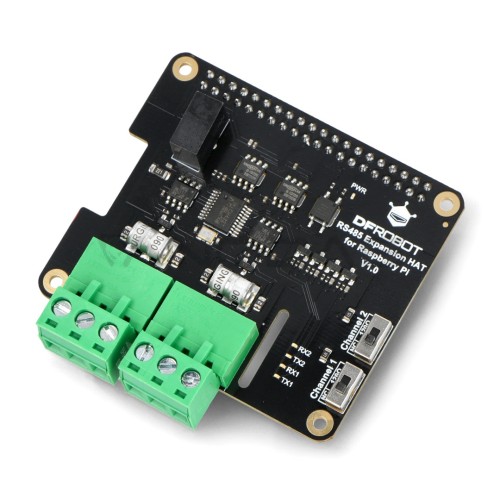

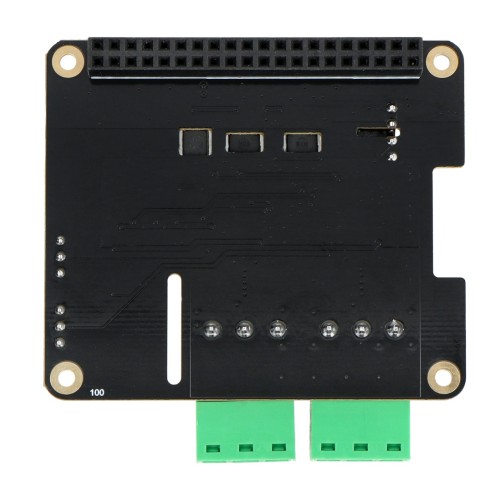

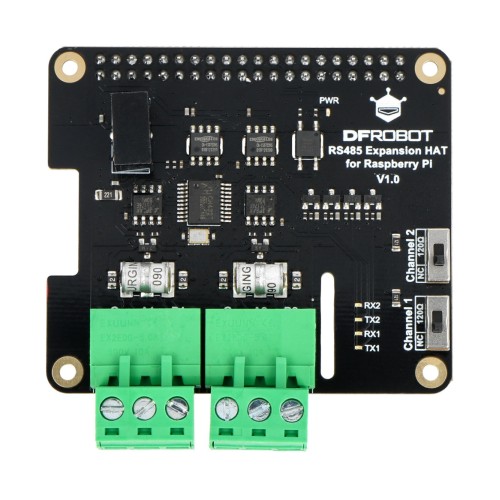

Dual-channel RS485 Expansion Hat is an overlay designed for the Raspberry Pi 4B minicomputer. It was designed to extend the functionality of the module with RS485 communication and thus increase the reliability of connections and prevent possible interference in data transmission. The shield has been equipped with protection circuits, such as lightning and surge protection, it also has a TVS diode and power supply isolation. In the extreme part of the board, there are pins in the form of screw connectors that enable simple and quick connection with other peripheral devices.
Main features:
- Two-channel RS485 shield for Raspberry Pi 4B
- Electrical and signal isolation
- Lightning and surge protection
- Transient voltage suppressor
- RX/TX data transmission and reception indicator
Specification:
- Operating voltage: 3.3 V
- Built-in RS485 transceiver: TP75176E
- Serial chip: CH432T
- Communication interface: RS485 x2
- Power indication: red LED
- TX communication signaling: blue LED
- RX communication signaling: green LED
- Terminal resistance: 120 Ohm x2
- Terminals: terminal strip (screw connector) 3-pin, raster 5.08 mm
- Compatibility: Raspberry Pi 3B+ / 4B
- Mounting hole diameter: 2.5 mm
- Board dimensions (measured without screw connections): 56 x 65 mm

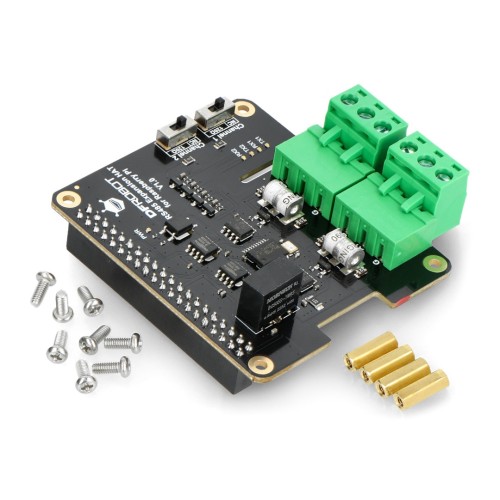

Set includes:
- Dual-channel RS485 Expansion Hat - two-channel shield for Raspberry Pi 4B - 1 piece
- Mounting screws - 8 pieces
- Spacer sleeves - 4 pieces
