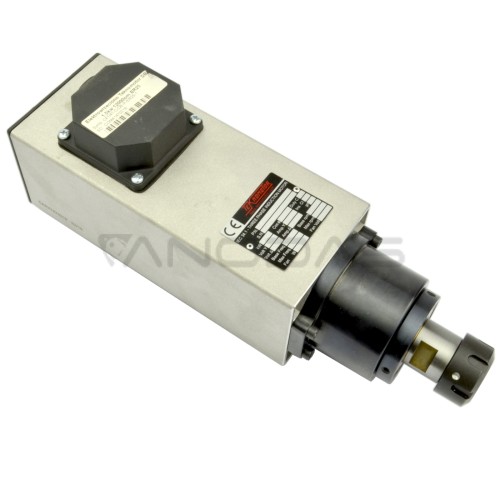

Electrospindle Teknomotor DB 1.5kW 18000rpm ER25
Product Code: MX-C41-47-C-DB-P-ER25-1
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2026-12-04
Ex Tax: 975.04€
Electric motor units, such as those in the Teknomotor DB series, are dynamically balanced at the factory and designed for continuous operation. The permissible rotational speed range for these motors is 6,000 to 18,000 rpm. DB series motors are protected against the ingress of contaminants such as wood chips, dry sawdust, aluminum shavings, and PVC debris.
DB series motors are primarily used in CNC plotters, drilling machines, trimming/deburring machines, and equipment for the production of PVC or aluminum windows and doors, as well as in robotic manufacturing processes (where the motor is mounted directly onto an anthropomorphic robot).
Teknomotor DB series motors—with rated frequencies of 100 Hz, 200 Hz, and 300 Hz—must be operated using a frequency converter (commonly referred to as an inverter). The converter can be powered by a single-phase 230V (1x230V) supply, in which case the motor is connected in a "delta" configuration. Alternatively, a three-phase 400V (3x400V) converter can be used, in which case the motor is connected in a "star" configuration.
Specifications:
- Motor power: 1.5 kW
- Frequency: 300 Hz
- Tool holder: ER25
- Supply voltage: 220/380V
- Nominal speed: 18,000 rpm Maximum speed: 18,000 rpm
- Automatic Tool Change (ATC): No
- Bearing type: Angular contact

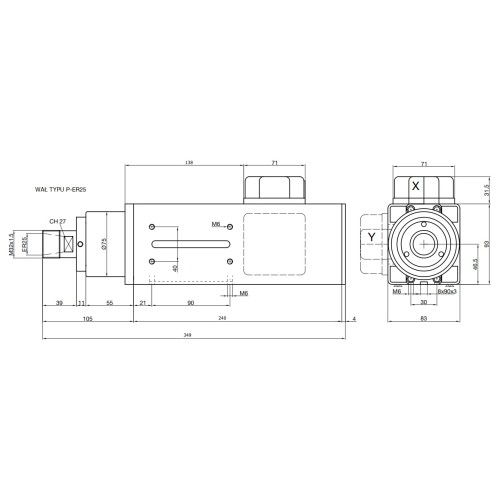

- Size: C41/47
- Cooling type: Air
- Protection class: IP54
