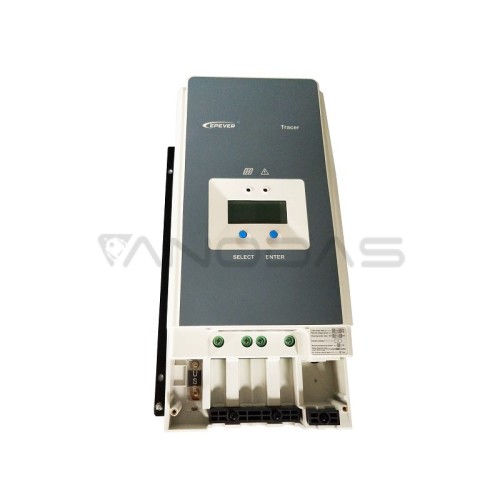

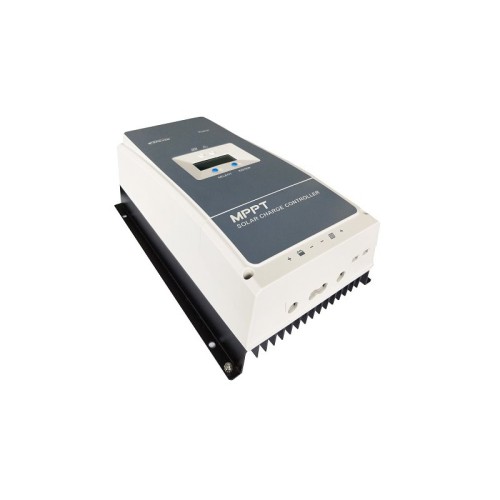

Epever MPPT Tracer 5420AN 50A 12/24/36/48V charge controller

Thanks to the algorithm of the MPPT charge regulator, in any situation, the products of this series can quickly and accurately track the Maximum Power Point (MPP) of the solar panel, in order to obtain the maximum solar energy over time, which significantly increases the energy efficiency.

Main features:

• Tracer AN series controller, based on multi-phase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with the dual-core processor architecture
• MSRT can guarantee very high conversion efficiency at any charging power, which greatly improves the efficiency of the solar system
• Advanced MPPT control algorithm minimizes the maximum power loss time. It provides tracking efficiency, adequate speed, and high conversion efficiency under high or low power, so as to ensure the highest possible module efficiency in any situation
• Tracer AN can quickly track the Maximum Power Point (MPP) from PV panels to get maximum energy from the panel
• The function of limiting the power and charging current and the function of automatic power reduction fully ensures the stability of work with oversized photovoltaic modules and operating in a high-temperature environment
• Thanks to the adaptive three-stage charging mode based on the digital control circuit, the Tracer AN series regulators can effectively extend the working time, and battery life cycle and greatly improve the system efficiency
• Possibility to create hybrid power systems
• Universal electronic protections, including overcharge, over-discharge and PV reverse polarity protection, effectively ensure safer and more reliable operation of the solar system for a longer service time
• The controller has an Isolated RS485
• The interface with standard MODBUS communication protocol and 5 V power supply makes it easy for the customer to extend the application by supporting up to 8 charge regulators in parallel to expand the system and meet different monitoring requirements, so it can be used for various applications


Specification:

• Model: Tracer 5420AN
• Nominal system voltage: 12 V / 24 V / 36 V / 48 V
• Rated charging current: 50 A
• Rated discharge current: 50 A
• The battery input voltage range is 8 V ～ 68 V
• Max. open circuit voltage PV: 200 V
• MPP voltage range: VBAT + 2 V ～ 144V
• Max. PV input power: 625 W / 12 V, 1250 W / 24 V, 1875 W / 36 V, 2500 W / 48 V
• Own power consumption: 98 mA / 12 V; 60 mA / 24 V; 50 mA / 36V ; 46 mA / 48 V
• Temperature Compensation Coefficient: -3 mV / ºC / 2 V (Default Value)
• Communication: RS485 (RJ45 interface)
• Grounding: Negative grounding
• LCD temperature range: -20 ºC ～ 70 ºC
• Working environment, Temperature range: -25 ºC ～ 60 ºC
• Storage temperature: -30 ºC ～ 85 ºC
• Humidity range: 5% to 95% (N.C.)
• IP20 housing
• Size: 261 mm x 216 mm x 119 mm
• Mounting hole diameter: 7
• Weight: 3.5 kg
