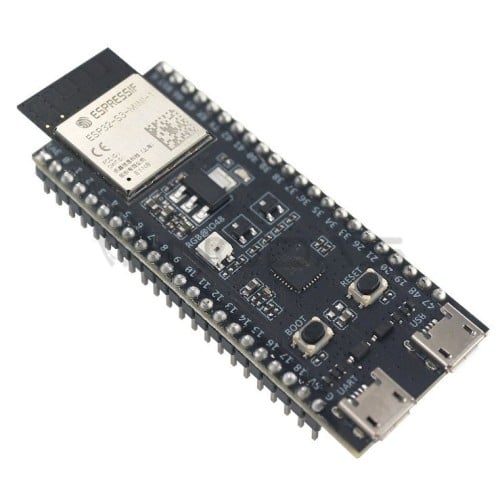

ESP32-S3-DevKitM-1-N8 - WiFi + Bluetooth - mini development board with ESP32-S3-MINI-1/1U chip

Product Code: AN-20740
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
48.70€
Ex Tax: 40.25€

Qty

ESP32-S3-DevKitM-1-N8 mini development board based on ESP32-S3-MINI-1/1U chip. It supports WiFi wireless communication in the 2.4 GHz band and Bluetooth LE in the 5.0 standard. It has 8 MB of SPI Flash memory, 512 kB of SRAM (including 16 kB in RTC memory) and 384 kB of ROM. The board dimensions are 24.4 x 62.74 mm

Main features:
  • Higher computing power and low power consumption compared to the previous version - ESP8266
  • System on chip (SoC) family
  • Allows communication via WiFi 802.11 b/g/n and Bluetooth BLE 5 Mesh
  • Designed for use in compact projects
  • ESP32 wireless communication modules form the basis of IoT
Specification:
  • Circuit: ESP32-S3-MINI-1/1U
  • Chip: ESP32-S3FN8
  • Processor: Dual-Core 32-bit Xtensa LX7
  • Clock speed: up to 240 MHz
  • Wireless communication: WiFi and Bluetooth
  • WiFi Standard: IEEE 802.11 b/g/n (802.11n up to 150 Mbps)
  • A-MPDU and A-MSDU aggregation
  • Bandwidth: 2.412 GHz to 2.484 GHz
  • Bluetooth Standard: LE 5 Mesh
  • SRAM: 512 kB (including 16 kB in RTC memory)
  • ROM memory: 384 kB
  • SPI Flash memory: 8 MB
  • Quartz oscillator: 40 MHz
  • Interface: 45x GPIO, 4x SPI, 3x UART, 2x I2C, 14x Touch, 2x ADC, 1x LCD, DVP
