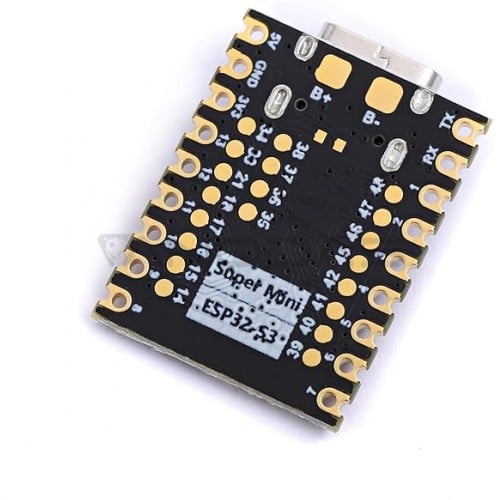

ESP32-S3 SuperMini Development Board

Product Code: EL-YXS2170
Availability: Vilnius Store Out of Stock
Kaunas Store Out of Stock
Central Warehouse In Stock

9.90€
Ex Tax: 8.18€

Qty

Add to Wish List

The ESP32S3SuperMini is an IoT mini development board based on the ESP32-S3 WiFi/Bluetooth dual-mode chip.The ESP32-S3 is a 32-bit CPU containing a FPU (Floating Point Unit) for 32-bit single-precision arithmetic with powerful computational capabilities. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. The board comes with an external antenna to enhance signal strength for wireless applications. It also features a small and compact form factor combined with a single-sided surface mount design. It is equipped with a rich set of interfaces, with 11 digital I/Os that can be used as PWM pins and 4 analogue I/Os that can be used as ADC pins, and it supports four serial interfaces, including UART, I2C and SPI. There is also a small reset button and a bootloader mode button on the board.

Features

ESP32S3 SuperMini is positioned as a high-performance, low-power, cost-effective IoT mini development board for low-power IoT applications and wireless wearable applications.
Powerful CPU: ESP32-S3, 32-bit single-core processor running at 160 MHz.
WiFi: 802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, and mixed mode.
Ultra-low power consumption: deep sleep power consumption of about 43μA
Rich board resources: 400KB, 384KB ROM 4Mflash built-in.
Ultra-small size: as small as a thumb (22.52x18mm) Classic form factor for wearables and small projects.
Reliable security features: cryptographic hardware accelerator with support for AES-128/256, hash, RSA, HMAC, digital signature and secure boot
Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC

Tags: esp32-s3, supermini, development, board, esp8266, wifi, modules
