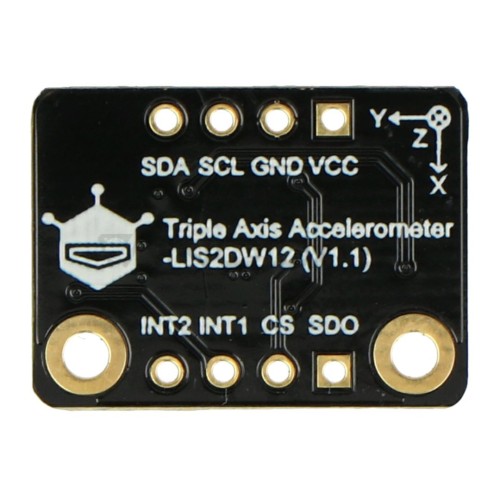

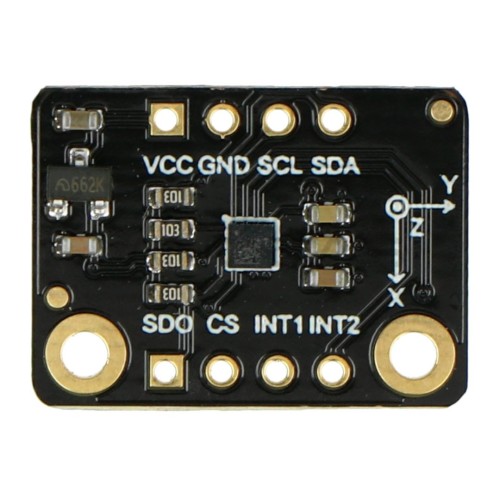

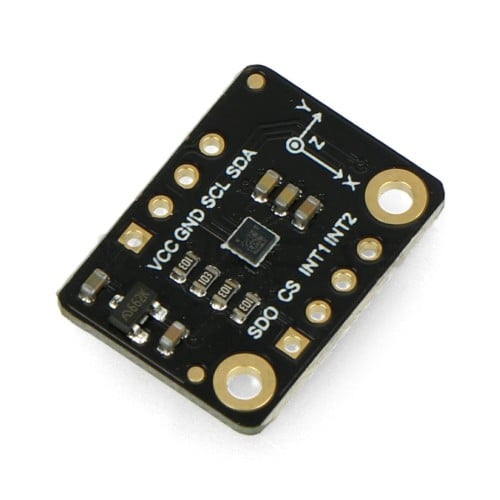

Fermion, 3-Axis Accelerometer, I2C LIS2DW12, DFRobot SEN0405

Brand: Dfrobot
Product Code: AN-19909
Availability: Temporarily Out Of Stock
Ex Tax: 7.27€
Fermion series module with powerful 3-axis accelerometer LIS2DW12, manufactured by DFRobot. It features low power consumption (50 nA), as well as low noise. The module has a user-selectable measurement scale (±2 g / ±4 g / ±8 g / ±16 g) and is able to measure accelerations with a data rate of 1.6 Hz to 1.6 kHz. It communicates over an I2C interface and is powered by 3.3 V. The sensor features two independent programmable interrupt outputs and internal circuitry for motion and acceleration detection, free-fall detection and orientation determination, as well as single/double touch recognition.

Main features:
  • Selectable measurement scale: ±2 g / ±4 g / ±8 g / ±16 g
  • Two independent programmable interrupt outputs
  • Intelligent sleep and wake-up function
  • Freefall detection
  • Dedicated internal circuitry to perform various functions such as 6D / 4D orientation detection, configurable single touch, double touch recognition, etc.
  • Operating voltage: 3,3 V
  • Operating current:
    • 50 nA (low power mode)
    • 0.17 mA (high performance mode)
  • Interface: SPI / I2C
  • I2C address: 0x19 (default address) / 0x18 (selectable)
  • Optional measuring scale: ±2 g / ±4 g / ±8 g / ±16 g
  • Operating temperature: -40 °C to 85 °C
  • 16-bit data output
  • Frequency: 1.6 Hz to 1600 Hz
  • Very low noise level: 1.3 mg RMS (low power mode)
  • 32-level FIFO
  • Shock resistance 10000 g
  • Module dimensions: 15 mm x 20 mm

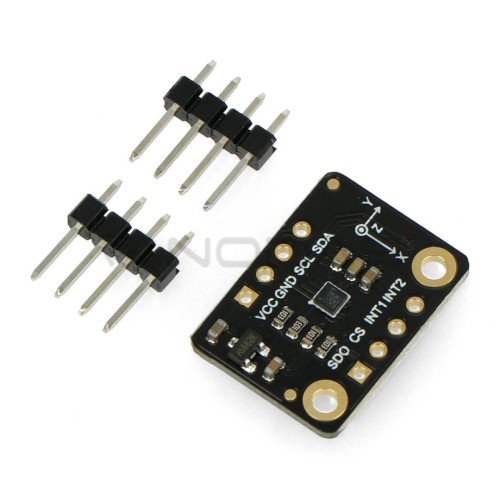

Set includes:
  • 1x Fermion - I2C LIS2DW12 3-axis accelerometer
  • 2x 4-pin goldpin connector - 2.54 mm pitch
