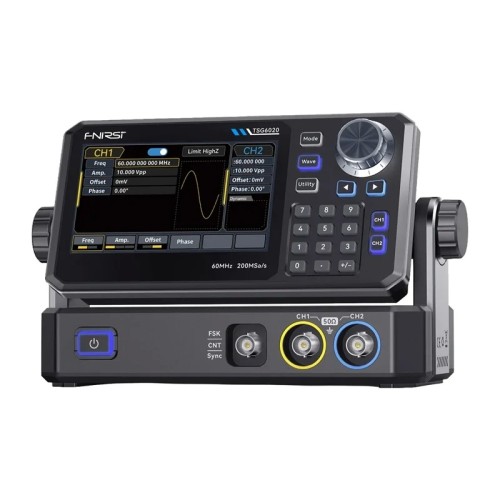

FNIRSI TSG6020 Function Generator

Brand: FNIRSI
Product Code: TSG6020
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2026-10-05

268.20€
Ex Tax: 221.65€

Qty

Add to Wish List

Precise signal generation, extensive configuration options and advanced measurement functions make the FNIRSI TSG6020 ideal for use in laboratories, as well as for maintenance work and electronic circuit design. The dual-channel design, output frequency up to 60 mHz and 200 MSa/s sampling rate with 14-bit resolution ensure accurate waveform reproduction and high operating accuracy. The generator supports many modulation types, allows you to create your own arbitrary waveforms and offers a frequency sweep function and an integrated frequency counter. The intuitive touch screen, quick access to saved settings and a robust design ensure that the device is easy to use even during intensive, long-term use.

High-quality generated signals

The FNIRSI TSG6020 has two independent output channels, allowing you to generate two different signals simultaneously and conveniently perform more complex tests and analyses. The generator offers an output frequency of up to 60 mHz, and the 200 MSa/s sampling rate and 14-bit vertical resolution ensure very accurate waveform reproduction with minimal distortion. The output voltage range is optimized for a variety of load configurations - from 2 mVpp to 20 Vpp at high impedance at frequencies below 10 mHz, from 2 mVpp to 10 Vpp at frequencies above 10 mHz, as well as from 1 mVpp to 10 Vpp and from 1 mVpp to 5 Vpp at a load of 50 Ω. This flexibility allows the device to be used in many complex laboratory and design applications.

Standard waveforms and advanced modulations

The generator supports all commonly used waveforms, such as sine, square, sawtooth, pulse, noise and DC. In addition to the preset waveforms, it allows you to recreate your own arbitrary waveforms point by point, ensuring that all waveform details are preserved. VeriPoint technology uses a sampling rate of 1 µSa/s to 200 MSa/s and very low jitter of less than 200 ps, ensuring accurate reproduction of even the most complex waveforms. The device also supports six modulation types (AM, FM, PM, FSK, ASK and PSK), making it ideal for testing digital communication circuits and radio systems.

Even greater accuracy

ZeroSurge technology significantly reduces overshoot in square, pulse and sawtooth signals. Overshoot does not exceed 1%, and rise and fall times are no more than 13.5 ns, so the generated waveforms are sharp and very accurate. The generator is also equipped with a seven-digit frequency counter that measures the frequency, period and duty cycle of TTL-level signals in the range from 100 mHz to 100 mHz, with an accuracy of ±51 ppm. The high signal quality is also confirmed by such parameters as a low phase noise level of up to -125 dBc/Hz at 10 mHz (10 kHz offset) and harmonic distortion of less than -40 dBc in the range from 30 to 60 mHz.

Frequency sweeping and convenient control

The FNIRSI TSG6020 offers frequency sweeping in both linear and logarithmic modes. The sweep time can be adjusted from 1 ms to 500 s, and the accuracy is ±0.1%, which, among other things, facilitates the analysis of filter characteristics and testing the response of various electronic circuits. Operation is simplified by a 4.3-inch color TFT-LCD touch screen that works in conjunction with traditional physical buttons. The screen displays a real-time preview of the generated waveform and key operating parameters, allowing you to quickly check settings and make necessary changes.

Stable operation even during long-term testing

The generator is designed for reliable operation under intensive use. Effective heat dissipation is ensured by an aluminum radiator supported by a quiet fan that maintains the correct temperature of the components even after many hours of operation. The design also provides output channel protection, isolation and ground protection, and a TTL-compatible sync output improves integration with other measurement devices. Non-volatile memory allows you to store up to 24 custom arbitrary waveforms that can be instantly recalled without the need for reconfiguration. The generator also supports multiple operating modes, including continuous, swept, modulation and spread modes, providing great flexibility in setting up even complex test benches.

In the kit:

function generator
charging adapter
Type-C charging cable
data cable
measuring cable
alligator clips
instructions

Specifications:

Manufacturer: FNIRSI
Maximum output frequency: 60 MHz
Sampling frequency 200 MSa/s
Vertical resolution 14 bits
Channels 2
Maximum output amplitude 20 Vpp (<10 mHz) / 10 Vpp (>10 mHz)
Sine wave frequency 1 µHz–60 MHz
Square wave frequency 1 µHz–24 MHz
Pulse wave frequency 1 µHz–24 MHz
Modulation types AM, FM, PM, FSK, ASK, PSK
Sweep modes Linear sweep, logarithmic sweep
Integrated frequency counter 7 digits
Display 4.3 inch TFT LCD screen, 480x272

Tags: fnirsi, tsg6020, function, generator, measuring, equipment
