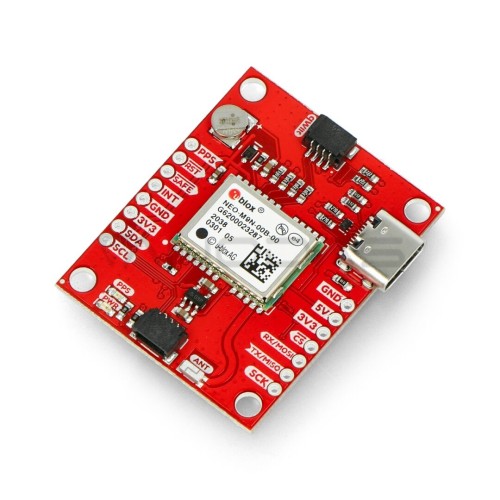

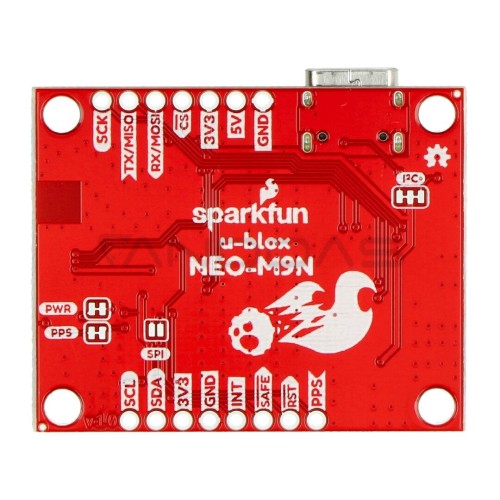

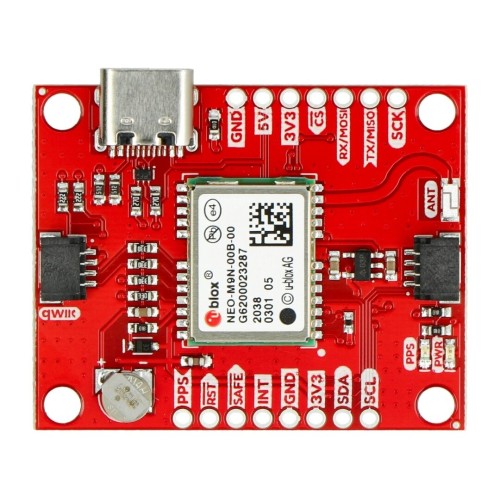

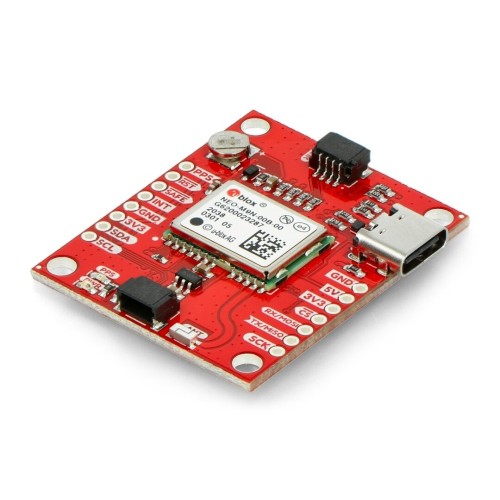

GPS NEO-M9N module with built-in antenna, Qwiic, SparkFun GPS-15733

Brand: Sparkfun
Product Code: AN-18450
Availability: Temporarily Out Of Stock

118.50€
Ex Tax: 97.93€

Qty

NEO-M9N high-quality module with 92 channel GNSS receiver and built-in antenna. It allows receiving signals from GPS, GLONASS, Beidou, and Galileo with an accuracy of 1.5 m. It can process 4 readings at the same time, so it can precisely determine the position even in difficult conditions. For communication, it uses UART, SPI, and I2C interfaces, and built-in Qwiic connectors allow to connect the board with other elements without the need of soldering. In addition, the module has leads to which it is possible to solder goldpin connectors in case of a project with a prototype board. On the board, there is a lithium RTC battery, which reduces time-to-first-fix. The power supply voltage is 3,3 V.

Specification:

Integrated antenna
92-channel GNSS receiver
Horizontal accuracy: 1.5 m
Maximum update frequency: 25 Hz (4 simultaneous GNSS)
TTFF:

Cold: 24s
Hot: 2s

Maximum height: 80000 m
Maximum G: ≤4
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Course accuracy: 0.3 degree
The accuracy of the time pulse: 30 ns
Power supply: 3.3 V VCC
Power consumption: ~31 mA (GPS + GLONASS tracking)
Configurable software:

Geofencing
Odometer
Spoofing Detection
External Interrupt
Low Power Mode

It supports protocols: NMEA, UBX and RTCM via UART or I2C interfaces
