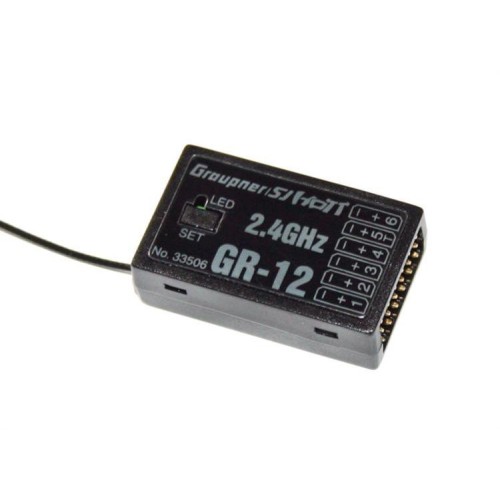

GR-12 RECEIVER HOTT

The GR-12 receiver can control up to 6 servos

The receiver, equipped with GRAUPNER HoTT 2.4 GHz technology, features a new high-frequency HoTT component with state-of-the-art components and state-of-the-art software. The receiver's voltage, temperature, and signal strength parameters are transferred without additional sensors.

Characteristic:

• The use of up to 75 channels ensures exceptional safety of use and insensitivity to external interference.
• The exceptionally wide operating voltage range of the receiver from 3.6 V to 8.4 V (efficient up to 2.5 V) ensures full functionality even with voltage fluctuations
• Green LED indicates operating status
• Possibly reduced size and weight

• The input sensitivity of the receiver has been improved, and therefore the range
• Programmable fail safe, hold, OFF and standard functions (channel 1 "fail safe", all others hold")

SMART BOX Features:

• Possibility to program 3 mixers
• Possibility of programming the servo in a linear, degressive and exponential manner
• On channel 5 it is possible to use a servo instead of a telemetry port
• Possibility to program a composite signal on the highest output of the highest channel (e.g. for the V stabilizer, Microbeast system, quadcopter, wireless learner function with mc-19/22 HoTT, flight simulators)
• Limiting and changing the servo travel direction are also possible in the receiver
• Fail safe, hold and OFF functions can be programmed separately for servo channels
• Possibility to program warning thresholds
• Servo test function

Technical data:

• dimensions: 36 x 21 x 10 mm.
• operating voltage: 3.6V - 8.4V
• frequency: 2400-2483.5 MHz
• weight: 7 g.
• modulation: 2.4 GHz FHSS
• range: approx. 2000 m.
• current consumption: 70 mA
• antenna length: 145 mm.
• operating temperature range: -15°C to 55°C
