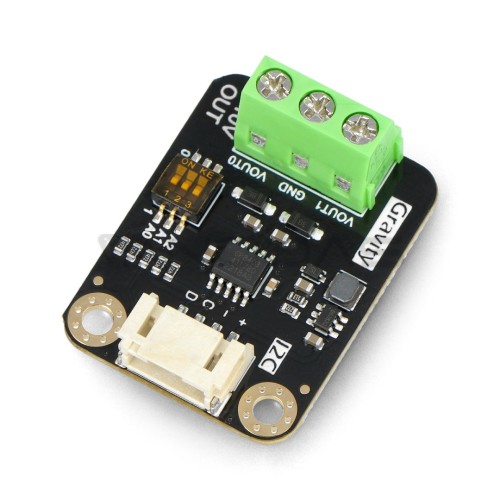

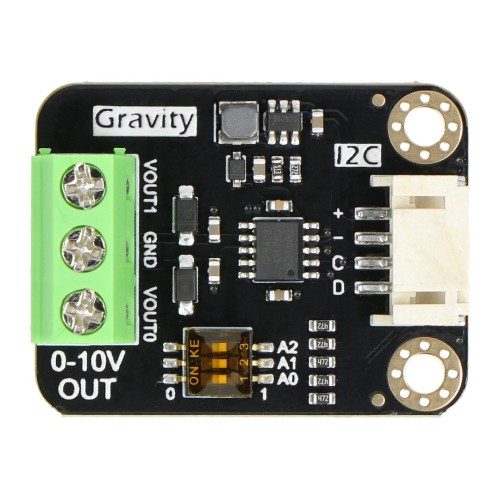

Gravity - 2-Channel I2C DAC Module 0-10V - DFRobot DFR0971
Brand: Dfrobot
Product Code: AN-21993
Availability: 4-6 business days
Planned delivery date after ordering: 2024-04-26
Product Code: AN-21993
Availability: 4-6 business days
Planned delivery date after ordering: 2024-04-26
Ex Tax: 14.88€
Gravity - 2-channel DAC 0-10 V I2C module allows you to operate industrial devices with a voltage from 0 V to 10 V. It is supplied with a voltage from 3.3 V to 5 V. It can be used with most devices on the markets, such as light controllers, inverters, valves and pumps, using the Arduino board. Besides, this module supports 8 different I2C addresses, which can be changed using the built-in DIP switch.
Main features:
Main features:
- Built-in chip: GP8403
- The supply voltage range is from 3.3 V to 5 V
- The output voltage error is less than 0.5%
- The power consumption is less than 4 mA
- Short-circuit protected outputs
- Dual-channel 0 V to 5 V / 0 V to 10 V output for connection and control of standard voltage/analog devices
- Adjustable I2C addresses: 0x58, 0x59, 0x5A, 0x5B, 0x5C, 0x5D, 0x5E, 0x5F
- Supply voltage range: 3.3 V to 5 V
- Communication interface: I2C
- I2C addresses: 0x58, 0x59, 0x5A, 0x5B, 0x5C, 0x5D, 0x5E, 0x5F
- Built-in chip: GP8403
- Input signal: 12 bits
- Output voltage VOUT0: 0 V to 10 V
- VOUT1 output voltage: 0 V to 10 V
- Output voltage error: less than 0.5%
- Power consumption: less than 4 mA
- Connector standard: Gravity PH2.0-4P
- 2-channel DAC I2C module
- Connection cable with Gravity connector
