Grove, Blueseeed, HM11 Bluetooth module, Seeedstudio 113020007

Brand: Seeedstudio
Product Code: AN-15571
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
31.80€
Ex Tax: 26.28€

Qty

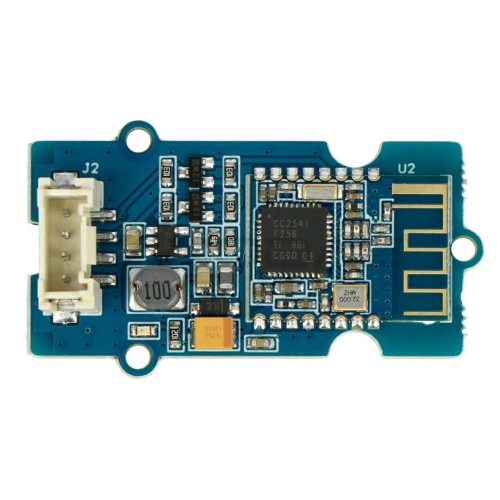

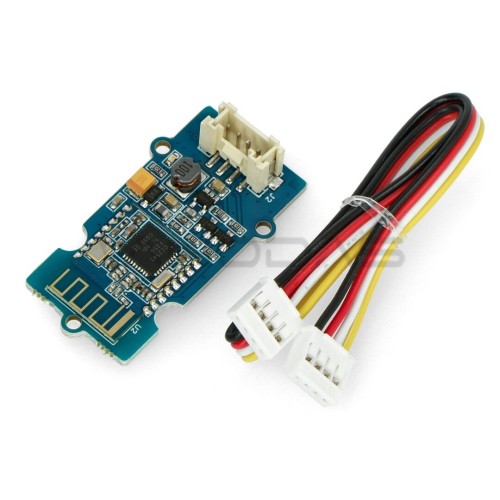

Bluetooth module based on HM11 chip. It allows extending the functionality of Arduino or Seeeduino with wireless communication LE 4.0. With support for BLE ComAssistant, the module can communicate with the phone without pairing and directly through AT commands. It communicates through the UART serial interface. The board is equipped with a Grove connector for quick connection with a Base Shield cover.

Specification:

  • System: HM11
  • Bluetooth version: BLE 4.0
  • Power supply voltage: 3.3 V or 5 V
  • Current consumption during operation: up to 10 mA
  • Current consumption during connection: up to 20 mA
  • Current consumption at rest: up to 1 mA
  • Frequency of operation: 2.4 GHz ISM band
  • Modulation method: GFSK
  • RF power: -23 dbm, -6 dbm, 0 dbm, 6 dbm - modified by AT+POWE command
  • Speed: asynchronous - 6 kB, synchronous - 6 kB
  • Affection: -84 dBm at 0.1% BER
  • Security: authentication and encryption
  • Operating temperature: -5 °C to 65 °C
  • Dimensions: 40 x 20 mm

Useful links:
Manufacturer website
Manual
