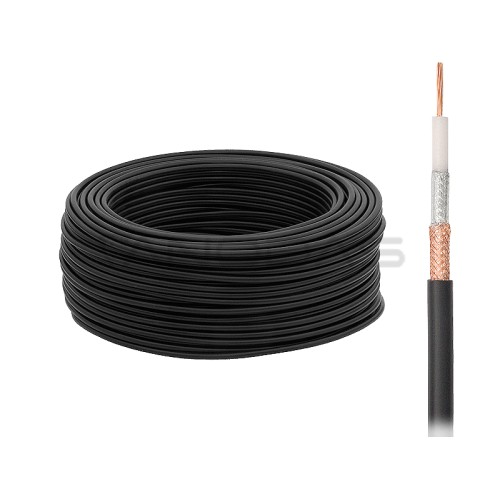

H155 2.4G stranded EK coaxial cable
Ex Tax: 81.24€
H155 EK coaxial cable
CONSTRUCTION
- Inner wire: 19 x 0.28
- Core insulation: Foam [FOAM]
- Diameter: [mm] 3.9
- Outer conductor: Cu wire braid 80% + foil
- Coating: PVC black
- Outer diameter: [mm] 5.4
- Effective capacitance: [pF/m] at f=1 kHz 82
- Wave shortening factor: [%] 81
- DC resistance: [m Ohm/m] 32
- Wave attenuation [dB/100 m] - average 3.0
at frequency [MHz]:
50 6.5
100 9.3
230 14.1
300 16.3
470 16.9
600 18.2
1000 30.9
1350 35.9
2150 46.9
OTHER DATA:
- Temperature range: [°C] -40 to +80
- Bending radius: 35
- Finish: [m] 100
CONSTRUCTION
- Inner wire: 19 x 0.28
- Core insulation: Foam [FOAM]
- Diameter: [mm] 3.9
- Outer conductor: Cu wire braid 80% + foil
- Coating: PVC black
- Outer diameter: [mm] 5.4
ELECTRICAL PROPERTIES AT 20 °C:
- Effective capacitance: [pF/m] at f=1 kHz 82
- Wave shortening factor: [%] 81
- DC resistance: [m Ohm/m] 32
- Wave attenuation [dB/100 m] - average 3.0
at frequency [MHz]:
50 6.5
100 9.3
230 14.1
300 16.3
470 16.9
600 18.2
1000 30.9
1350 35.9
2150 46.9
OTHER DATA:
- Temperature range: [°C] -40 to +80
- Bending radius: 35
- Finish: [m] 100
