Hackster & DFRobot AI Starter EEDU Kit – Artificial Intelligence Sensor Kit – ESP32 – DFRobot TEM2022A-EN-1

Brand: Dfrobot
Product Code: AN-22933
Availability: Temporarily Out Of Stock

102.80€
Ex Tax: 84.96€

Qty

The Hackster & DFRobot AI Starter EEDU Kit is a set of boards and peripherals that allow users to implement smart home, smart city, and broadly defined home automation projects. It helps users immerse themselves in the world of artificial intelligence and allows them to create simple and advanced AI-related applications. The kit includes the FireBeetle ESP32-E IoT WiFi and Bluetooth board, which is the heart of the project, and the HuskyLens AI camera, which is ideal for easily exploring classic and practical AI applications.

HuskyLens camera specifications:

Processor: Kendryte K210, dual-core RISC-V 64-bit 400 MHz
Image sensor: OV2640, 2 MP
Power supply: 3.3V-5V
Current consumption: 310 mA at 3.3V; 220 mA at 5V
Communications: UART, 9600-115200 bps; I2C, 100-400K
Screen: 2-inch IPS display, 320 x 240 pixel resolution
Integrated functions
Object tracking
Object recognition
Symbol recognition
Face recognition
Color recognition
Line tracking
Dimensions: 52x44.5mm

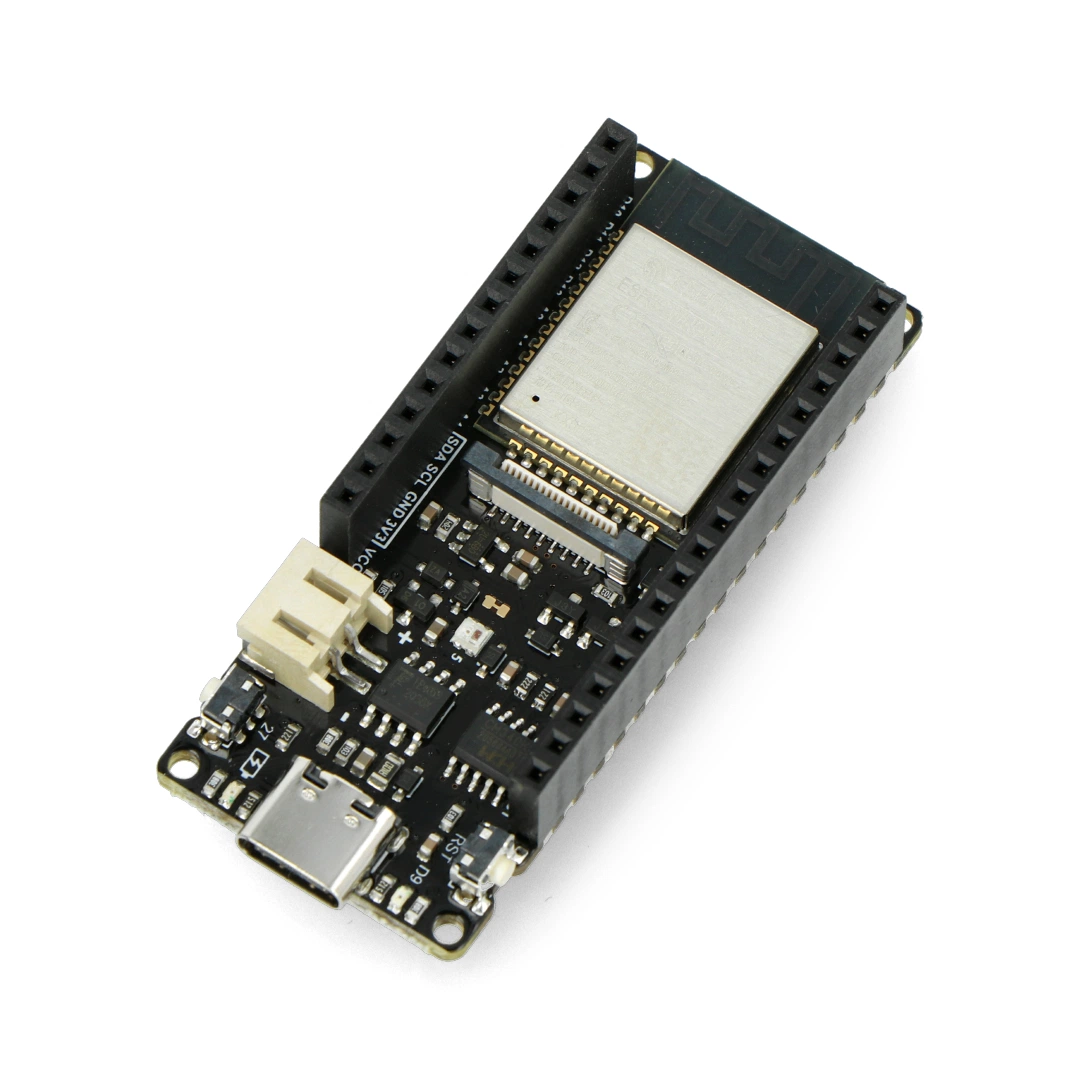

FireBeetle technical specifications:

Chipset: ESP-WROOM-32
Processor: dual-core Tensilica LX6 with a clock frequency of up to 240 MHz, 4 MB Flash memory and 520 kB SRAM
WiFi standard: 802.11 b / g / n / d / e / i / k / r
Supported frequency range: from 2.4 GHz to 2.5 GHz
Bluetooth protocol: compatible with Bluetooth v4.2 BR / EDR and BLE
Connector: USB Type-C, supports charging via USB
USB to UART converter: CH340K
Supply voltage: 3.3V / 5V
Power consumption: 10 µA
Contacts: 5x analog contacts, 10x digital contacts, 1x UART, 1x I2C, 1x SPI, 1x GDI
Indication: built-in RGB LEDs
Connectors compatible with the FireBeetle V2 series
Operating temperature: from -40 °C to 85 °C
Mounting hole diameter: 2mm
Board dimensions: 25.4x60mm
Board weight: 23g

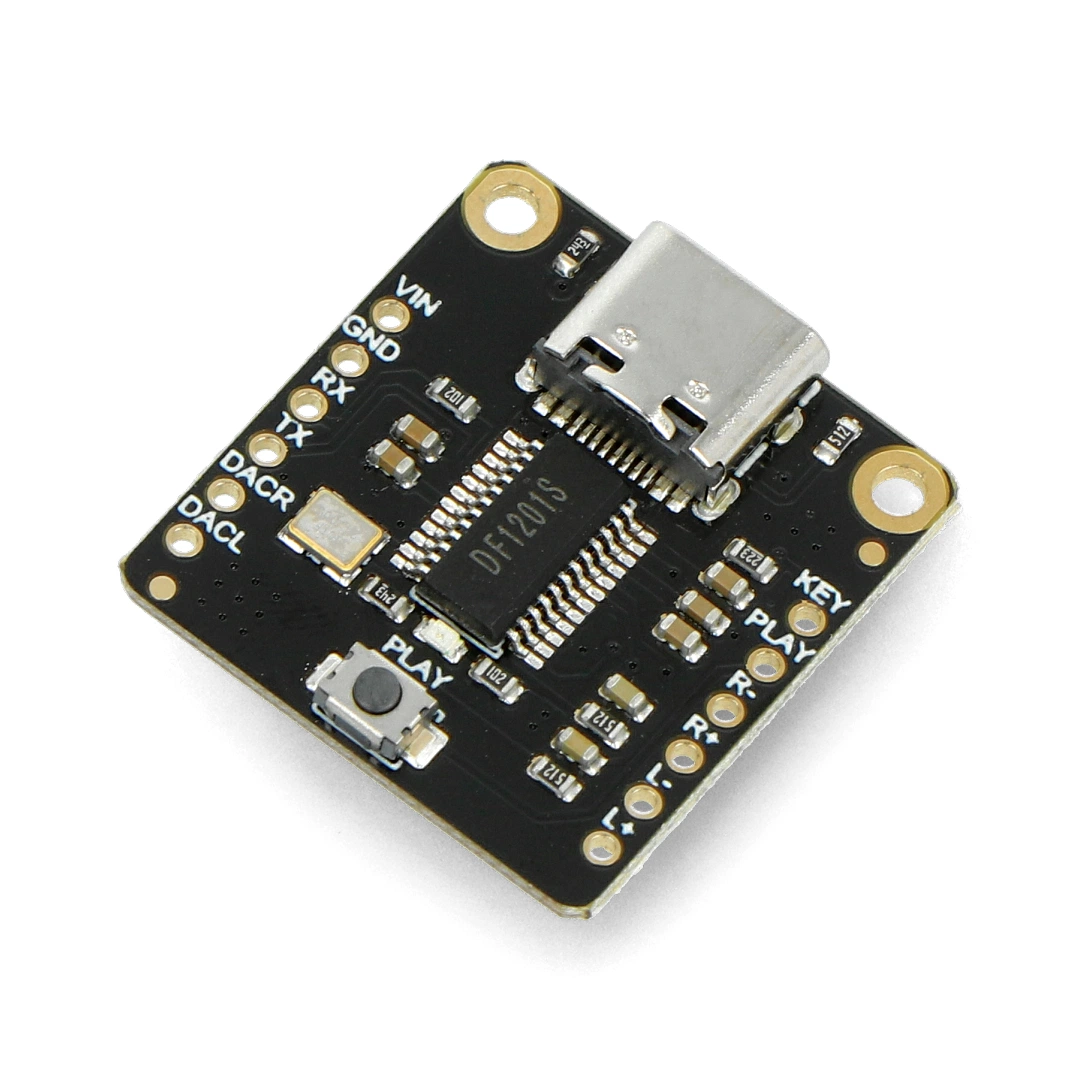

DFPlayer Pro technical specifications:

Type: mini MP3 player
Number of channels: 2
Built-in memory: 128 MB
Support for analog USB drives: yes
Control options:
Controlled via Arduino ADKEY
via AT commands
Physical control via built-in buttons
Integrated power amplifier: yes
Supported audio formats: MP3, WAV, WMA, FLAC, AAC, APE
Communication interface: UART
Supply voltage: 3.3V / 5V
Operating current: > 20mA
Operating temperature range: from -20 °C to 70 °C
Recommended operating humidity: from 5% to 95% RH
Module dimensions: 23x24.5mm

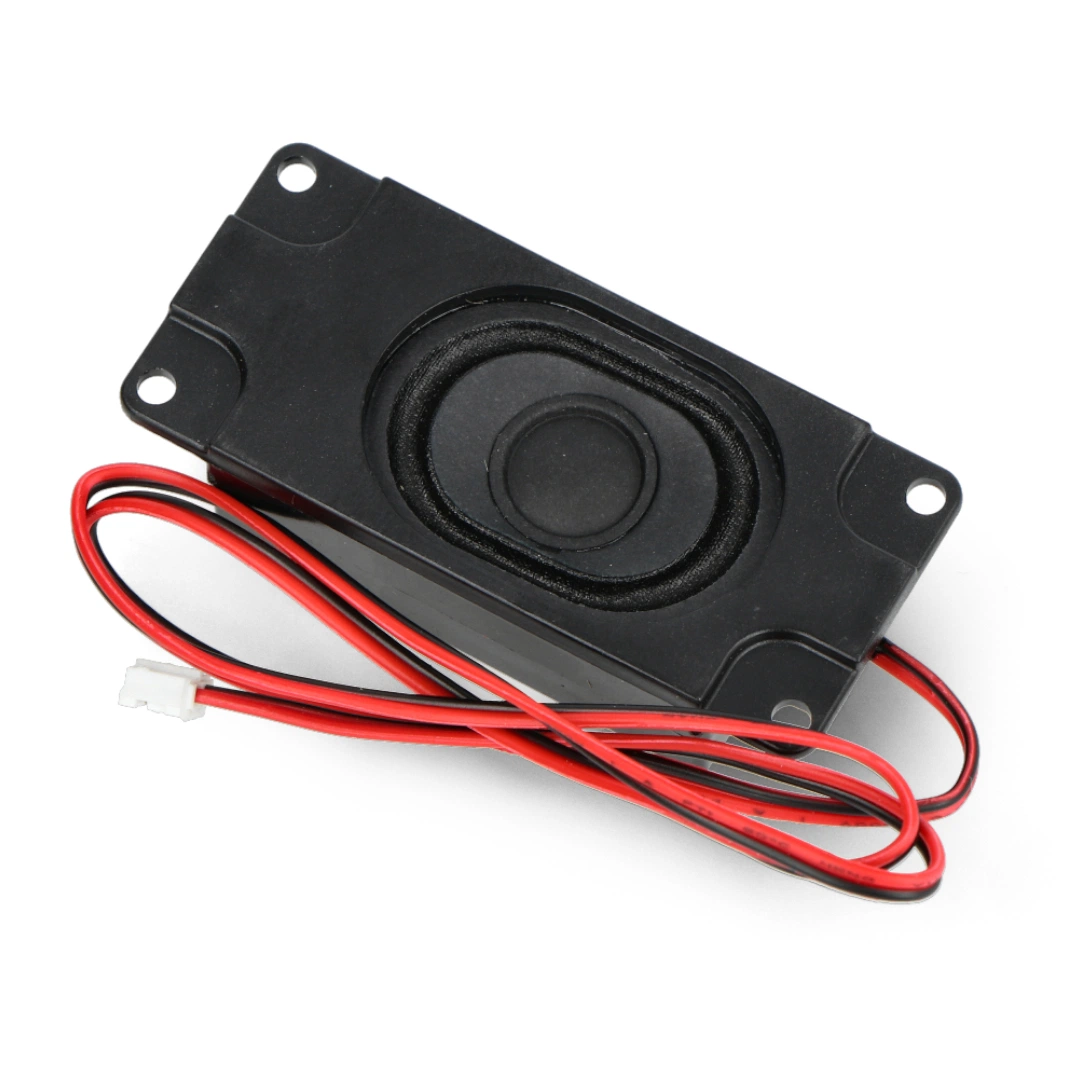

Speaker technical specifications:

Type: Stereo speaker
Power: 3W
Impedance: 8 ohms
Distortion: < 10%
Connectors: Wires connected with JST PH2.0 plug
Housing: yes
Color: black
Dimensions: 70x30x16mm
Weight: 24g

Specifications: Gravity IO Shield technical specifications:

12 digital ports
5 analog ports
3 I2C ports
1 UART port
1 SPI port
GDI display interface
Resistive connector for external power supply
Board dimensions: 60x25.4mm
Mounting hole diameter: 2mm
