HRB8825 2-channel stepper motor driver 28V/2.5A - HAT For Raspberry Pi - Waveshare 22311
Brand: Waveshare
Product Code: AN-21705
Availability: 4-6 business days
Planned delivery date after ordering: 2024-04-26
Product Code: AN-21705
Availability: 4-6 business days
Planned delivery date after ordering: 2024-04-26
Ex Tax: 19.67€

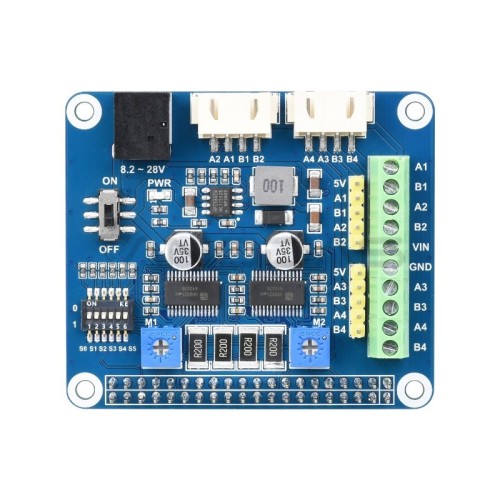

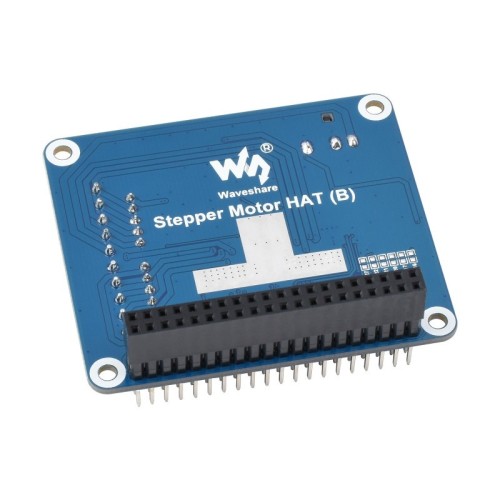

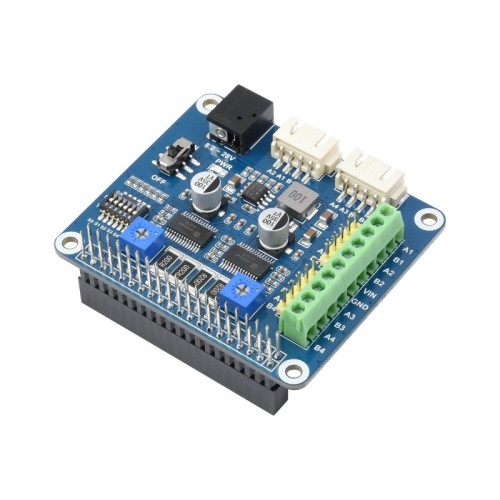

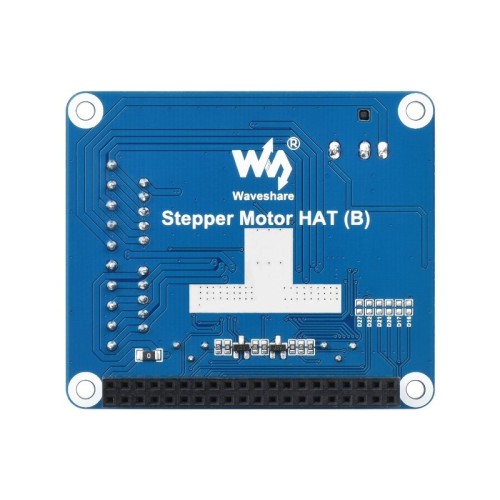

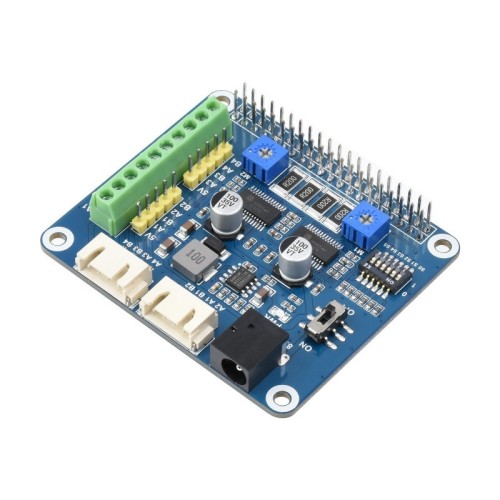

Two-channel stepper motor driver from Waveshare, in the form of a HAT shield for the Raspberry Pi. The controller is based on two HR8825 systems, it works with a voltage from 8.2 V to 28 V and a current intensity of up to 2.5 A. The module works in 6 micro-step modes: full step, half step, 1/4 step, 1/8 step, 1/16 step, and 1/32 step. It is equipped with overcurrent protection (OCP), shutdown after exceeding a given temperature (TSD), and VM undervoltage blockade (UVLO).
Main features:
Main features:
- Standard 40-pin, compatible with the Raspberry Pi and Jetson Nano series boards
- Two HR8825 motor drivers with built-in micro step indexer
- 6 available micro-step modes, configurable via DIP switch: full step, half step, 1/4 step, 1/8 step, 1/16 step and 1/32 step
- Motor current adjustable with potentiometers, maximum 2.5 A
- Protections: overcurrent (OCP), thermal shutdown (TSD), VM undervoltage blocking (UVLO)
- Integrated 5 V regulator provides power to the Raspberry Pi
- Built-in multi-connector options for stepper motors of different specifications
- The manufacturer has prepared programming resources and instructions
- Chip: 2x HR8825
- Supply voltage: 8.2 V to 28 V
- Amperage for motors: 2.5 A
- Logic voltage: 3.3 V
- Mounting holes size: 3 mm
- Dimensions: 65 x 56 mm
