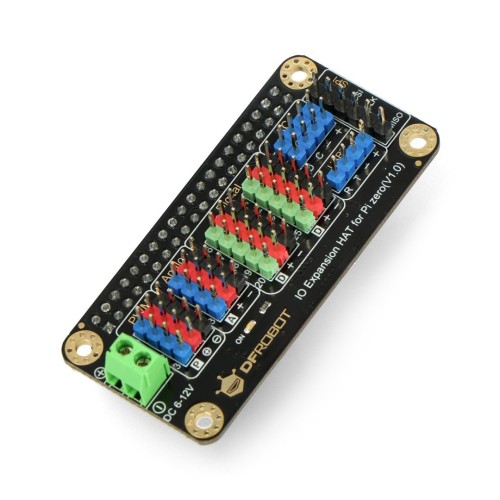

I/O Expansion HAT for Raspberry Pi Zero/Zero W - DFRobot DFR0604

Brand: Dfrobot
Product Code: AN-19895
Availability: Temporarily Out Of Stock
18.80€
Ex Tax: 15.54€
An overlay for the minicomputer Raspberry Pi Zero / Zero W version, on which individual Raspberry Pi pinout sections have been separated. The module offers digital, analog, I2C, PWM, UART and SPI ports. Additionally, analog and PWM ports are brought out by the built-in STM32 MCU module which allows communication with Raspberry Pi via the I2C interface. With the libraries provided, the user is able to conveniently control the PWM output as well as read analog data. The overlay supports a 5 V power supply and 3.3 V sensors. The PWM ports can be powered from an external source ranging from 6 V to 12 V or by the Raspberry Pi (5 V).

Specification:
  • Compatible with Raspberry Pi 4 Model B / 3B+ / 2 / Zero / Zero W
  • Built-in STM32 MCU providing 12-bit ADC
  • Ability to control multiple servos
  • External PWM port power supply: from 6 V to 12 V

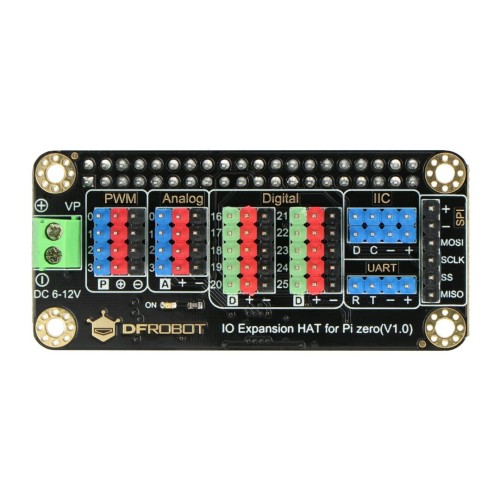

  • 22 ports:
    • 4x PWM
    • 4x analog input / output
    • 10x digital input / output
    • 1x SPI
    • 2x I2C
    • 1x UART
  • Device address: 0x10
  • Operating voltage: 5 V
  • Dimensions: 65 mm x 30 mm
