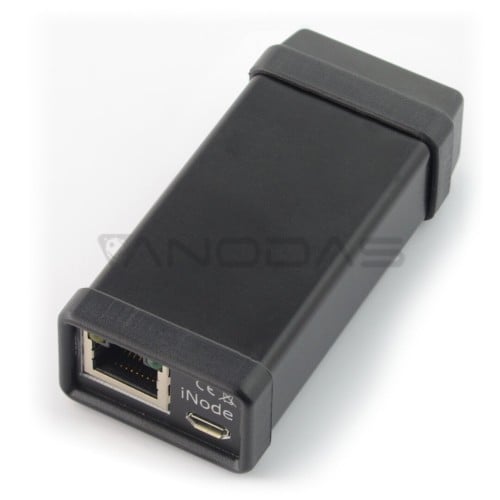

iNode LAN - Bluetooth gateway
Product Code: AN-09963
Availability: 4-6 business days
Planned delivery date after ordering: 2025-08-01
Ex Tax: 50.41€
Specification:
- Bluetooth and ethernet: BLE - configurable via a browser
- work mode BLE: AUTO SCAN or REPEATER
- power: -18 dBm to 8 dBm
- network settings: IP address (permanent or via DHCP), netmask, gateway, DNS server, NTP time server
- the name of the device in the LAN network and BLE
- IP address and port to which the UDP packets are sent
- sending method: multicast or unicast stream is configurated automatically based on your IP address
- the user's password
- the administrator password
- Power: microUSB 5 V / 85 mA or POE from 6 V to 30 V / 40 mA, 100 Mbit/s 24 V / 60 mA, 100 Mbit/s, 12 / 120 mA, 100 Mbps 6 V
- Remote control via TCP / IP telnet on port 5500
- The possibility of replacing the software - through a browser
- Two LEDs: ethernet LINK and STATUS
- HTTP server:
- 6,9 MB for the user's HTTP website and 1 MB for the HTTP system website
- WebSocket technology support
- supports up to 2 calls simultaneously
- Reset button: reset settings to factory default
- Temperature sensor with a resolution of 1 °C
- Working temperature: from -20 °C to 45 °C
- Humidity: 35% to 80% RGH
- Chipset: CSR 101x and W5500

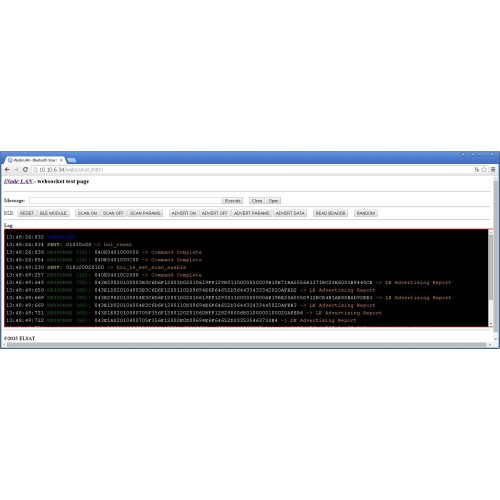

- Built-in app JavaScript / WebSocket / HTML5 - iNode Monitor
- Body: metal
- Dimensions: 81 x 38 x 22 mm
- Weight: 45 g
