JetRacer, a 4-wheel robot platform with a camera, DC drive, and OLED display for Nvidia Jetson Nano, Waveshare 17607

Brand: Waveshare
Product Code: AN-16404
Availability: Temporarily Out Of Stock
268.10€
Ex Tax: 221.57€

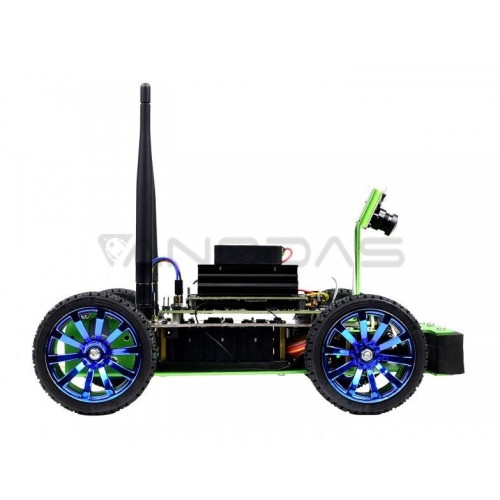

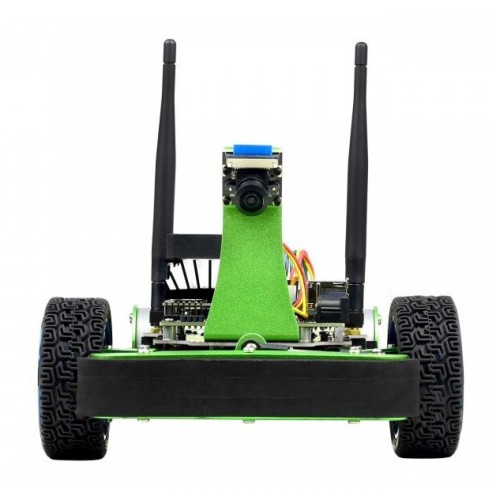

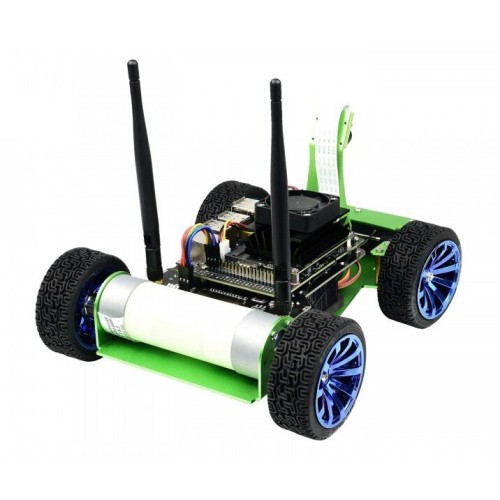

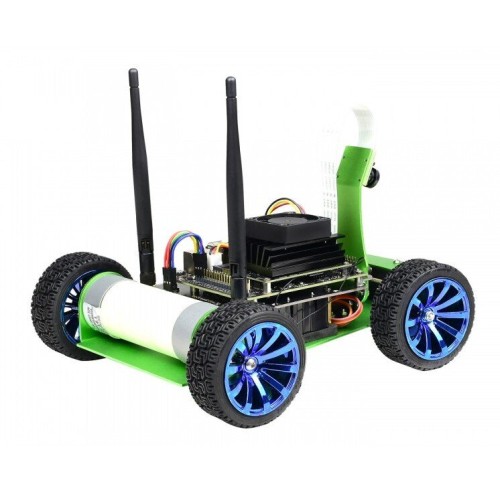

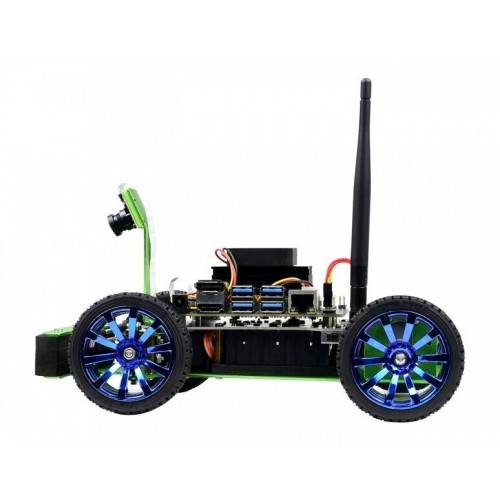

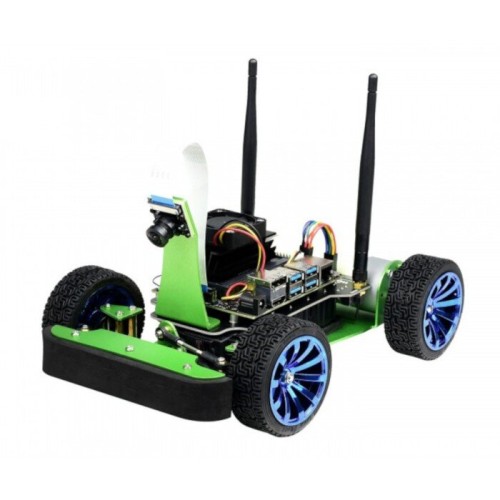

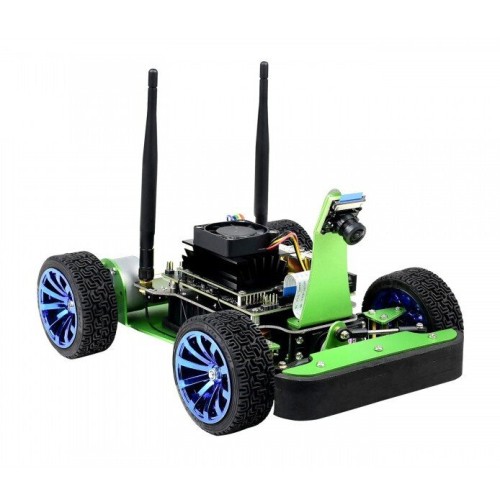

Four-wheeled JetRacer robot platform based on Nvidia Jetson Nano. The robot is equipped with a camera, which supports deep learning technology for object detection and self-movement. It has a swivel front axle and a mainboard with an OLED display. The vehicle supports such platforms as Nvidia, TensorFlow, OpenCV, Python, TensorRT, and Keras and PyTorch. The platform is powered by three Li-Ion 18650 batteries (not included). Also included in the kit is a map with a driving track and a controller for remote control of the vehicle.

Specification:

  • Camera resolution: 8 MPx, 3280x2464px
  • The angle of view of the camera: 160° FOV
  • Engine: 37-520
  • Gearbox: 1:10
  • Motor supply voltage: 12 V
  • Speed: 740 rpm
  • Servo: MG996R
  • Servo torque: 9 kg/cm
  • Servo supply voltage: 4.8 V

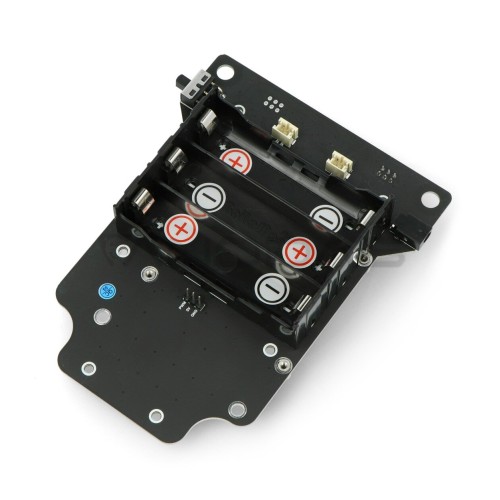

  • Power to the platform: 3x Li-Ion 18650 battery (not included)
  • Display: 0.91" OLED, 128x32px

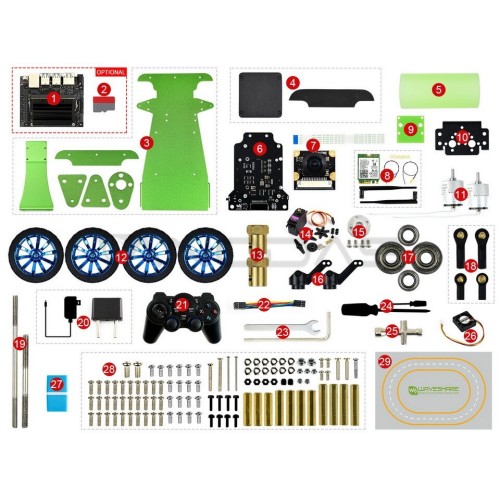

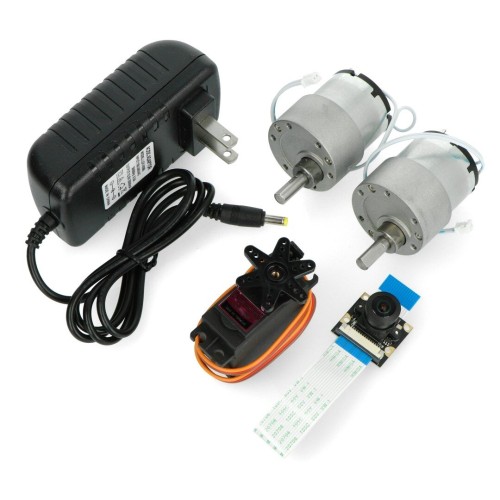

Set includes:

  • Platform set
  • EVA pads
  • Printed engine mounts

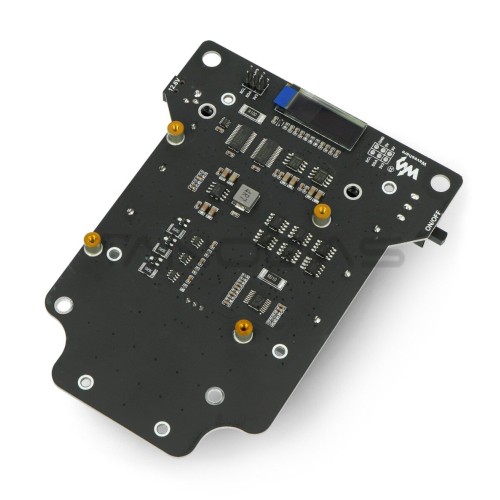

  • JetRacer motherboard
  • Camera IMX219-160
  • Acrylic elements
  • Servo holder
  • AC8265 WiFi chip with antennas and u.FL - SMA adapters
  • 2x engine
  • 4x a circle
  • The link
  • Servo MG996R
  • Servo attachment hub
  • 2x crossover
  • 4x bearing
  • 4x plastic joint
  • 2x axis stick
  • 12.6V loader

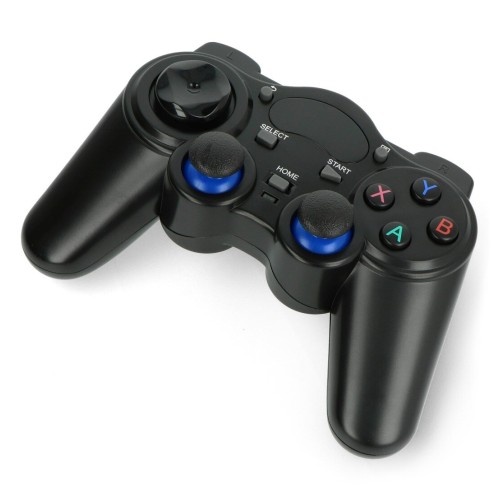

  • Controller
  • 6-pin cable
  • Key
  • Screwdriver
  • Crossword
  • Fan
  • MicroSD card reader
  • Set of screws
  • Map with route 3 x 2 m

Useful links:
Manufacturer website
Manual
