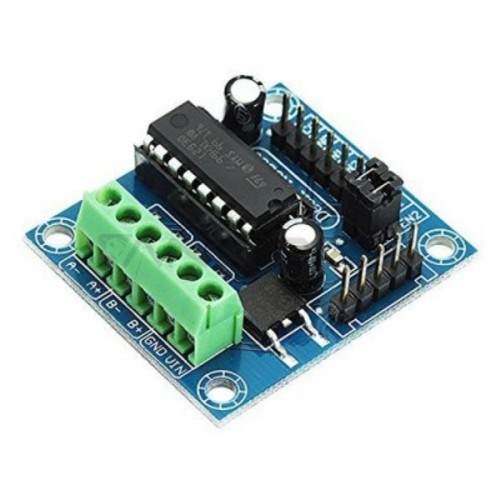

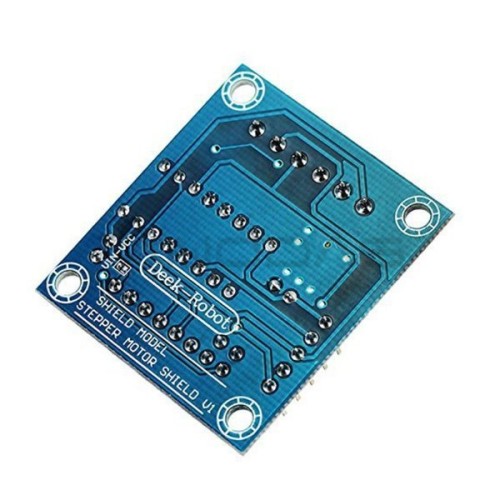

L293D mini H driver module for 2x DC motors or 1x stepper

L293D module for controlling DC brushed motors. It allows you to control two DC motors or any one stepper motor.

Main features:

• The module with the L293D driver allows you to control the direction of rotation and speed of DC brush motors, or one-step motors
• Shield enables two-way operation:
• 2 DC motors with 8-bit speed resolution
• 1 stepper motor (unipolar or bipolar)
• Motor Shield is invaluable in the construction of robots, the movement of which is based on DC motors
• It supports motors operating on voltages up to 36 V DC
• The L293D incorporates overheating protection
• The maximum channel current is 600 mA
• Thanks to the ARK screw connectors, the power supply and the motors themselves can be easily connected by screwing the wires with a screwdriver
• The control signals were output to the popular goldpin connectors by direct connection to the Arduino boards
• Pull-up resistors keep motors off when energized


Specification:

• Logic working voltage: 5 V
• Maximum supply voltage of motors: 36 V
• Current per channel: 0.6 A
• Maximum current per channel: 1.2 A
• Number of channels: 2
• Number of supported stepper motors: 1
• Number of supported DC motors: 2
• Pull-up resistors to keep the motor off during start-up
• Terminal block connectors for easy assembly of motor cables
• Dimensions: 39 x 35 mm
• Weight: 11 g
