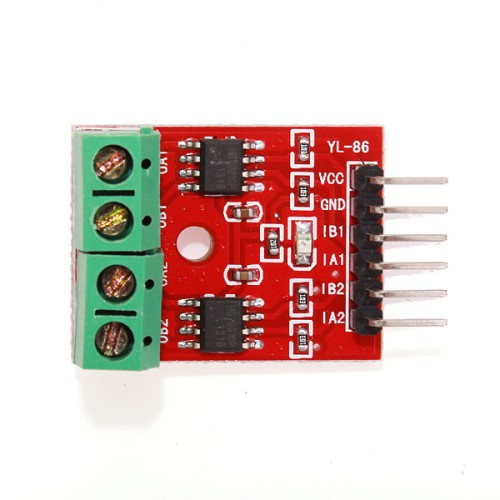

L9110S H-Bridge Motor Driver Controller

Product Code: AN0234
EAN: 4779044513000
Availability: Vilnius Store In Stock
Kaunas Store In Stock
3.00€
Ex Tax: 2.48€

Qty

The L9110S H-Bridge is an electric motor control module suitable for Arduino. In addition to the connectors for stepper and DC motors, the manufacturer has also provided other necessary features: screw connections allow strong and reliable connection of high-power wires, and M-type connectors help to quickly prototype circuits.
The motors are controlled by 2 built-in L9110S H-bridge modules. They can control up to 2 DC or 1 stepper motor.

Technical specs and features:
  • Supports up to 2 DC or 1 stepper motor, supply up to 800mA current for each
  • Screw and M type connectors for motors
  • Power supply voltage: 2.5 - 12 V DC
  • Logic signal voltage: 3.3-5V DC
  • Operating temp: 0 ° C - 80 ° C
  • The motors are controlled by 2 built-in L9110S H-bridge modules
