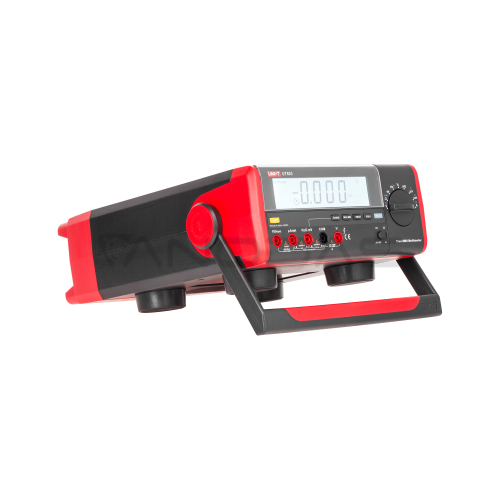

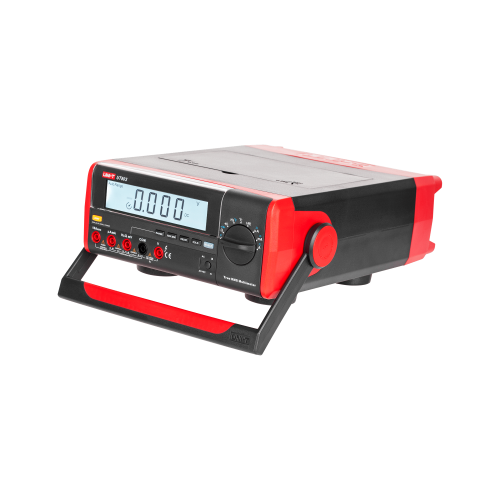

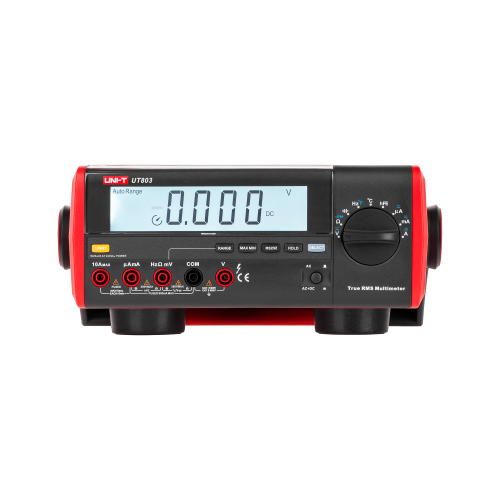

Laboratory multimeter Uni-T UT803

Brand: UNI-T
Product Code: MIE0075
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-04-05
184.50€
Ex Tax: 152.48€

Qty

The laboratory multimeter Uni-T UT803 allows you to make accurate measurements and has many advanced measuring functions.
Technical data:

  • DC voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.3% + 2)
  • AC voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.6% + 5)
  • Direct current: 600 µA / 6000 µA / 60 mA / 600 mA / 10 A ± (0.5% + 3)
  • Alternating current: 600 µA / 6000 µA / 60 mA / 600 mA / 10 A ± (1% + 5)
  • Resistance: 600 ohms / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.5% + 2)
  • Capacity: 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF ± (2% + 5)
  • Frequency: 6kHz / 60kHz / 600kHz / 6MHz / 60MHz ± (0.1% + 3)
  • Temperature: -40 ° C ~ 1000 ° C ± (1% + 3); -40 ~ 1832 ° F ± (1.5% + 50)
  • Continuity check
  • Diode test
  • Transistor inspection
  • Automatic and manual change of measuring ranges
  • AC + DC measurements
  • MAX / MIN measurements
  • The last measurement is recorded
  • Automatic shutdown
  • Low battery indicator
  • LCD screen backlight
  • Maximum reading: 6000

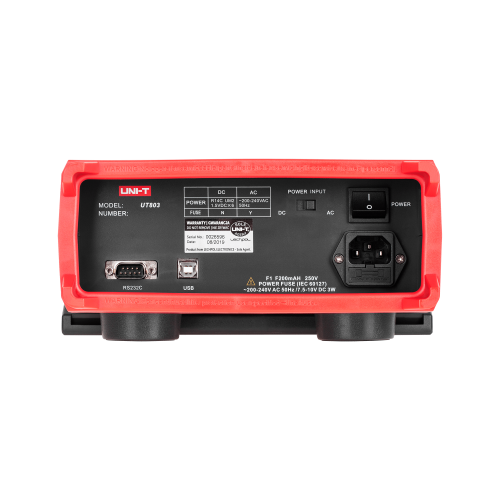

  • Ports: RS232C, USB
  • Fuses: 10 A.
  • Power supply: AC 220 V / 50 Hz or 6x 1.5 V battery (R14)
  • Screen size: 28 x 128 mm
  • Dimensions: 105 x 240 x 310 mm
  • Weight: 2.4 kg

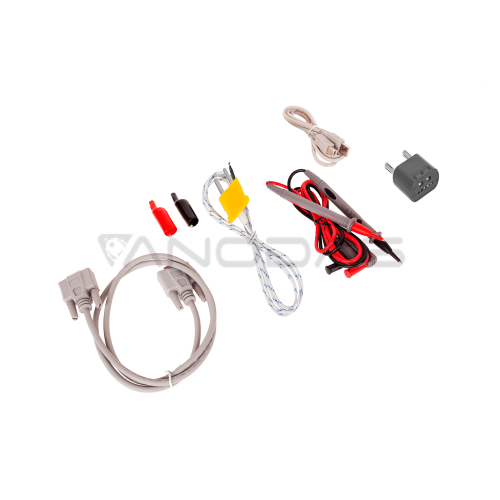

Included:

  • Test leads
  • Temperature probe
  • Crocodile clamps
  • Multifunction socket
  • USB cable
  • RS232C cable
  • Compact disc
  • Power cord
