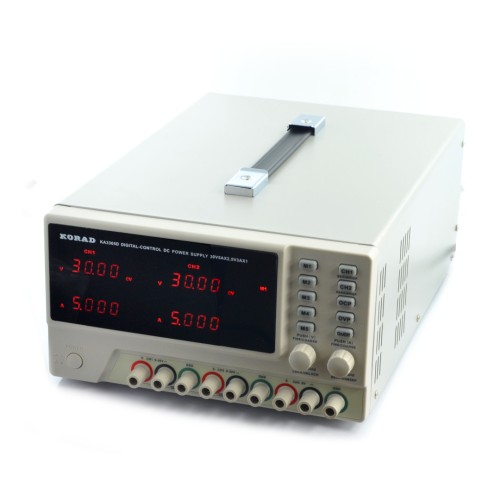

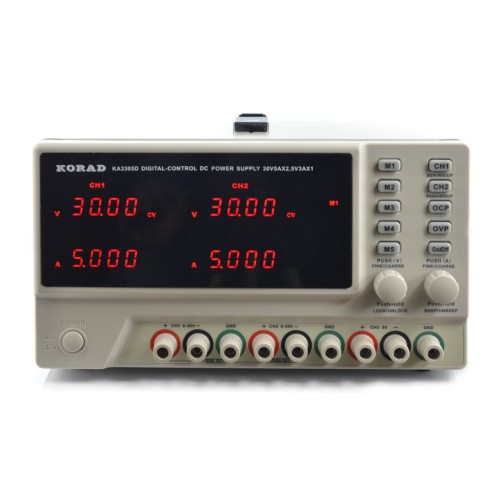

Laboratory power supply Korad KA3305D 2x 30V/5A + 5V/3A
KA3305D is a triple stabilized laboratory power supply with the programmable memory and continuous adjustable voltage in the range of 2x from 0 to 30 Volts, and adjustable current ranging from 0 to 5 A, and one output 5 V / 3 A.
Functions:
- 2 channels with a voltage of 0-30 V and 0-5 A
- 1 channel with 5 V and 3 A
- Design based on the transformer
- 5 memories to save the current, voltage and operating modes in the channel
- Key lock
- The device can operate in the following modes:
- C. V. - DC output voltage
- C. C. - DC load
- The system is equipped with short circuit and overload protection
- The power supply has 5 memory profiles to save current, voltage and operation modes
- Information by sound signal
- The serial connection (60 V / 5 A)
- Parallel connection (30 V / 10 A)
- The design of the power supply based on the transformer
- It has the accuracy of the readings at 10 mV / 1 mA
- It has two kinds of protection:
- OVP (overvoltage protection)
- OCP (overcurrent protection).
Specification:
- The range of voltages: 2 x 0 - 30 V
- Range of amperages: 2 × 0 - 5 A
- The additional channel: 5 V / 3 A
- Parameters adjustment
- Voltage: =< 0.01 % +5 mV
- The accuracy of parameter settings:
- Voltage: 10 mV
- Amperage: 1 mA
- Pulsations of output voltage
- Voltage: =< 2 mVrms
- Amperage: =< 3 mArms
- Reaction time
- of voltage increase: =< 100 ms (rated load 10 %)
- of voltage decrease: =< 100 MS (rated load 10 %)
- Size: 380 x 250 x 140 mm
- Weight: 9.1 kg
Includes:
Laboratory power supply Korad KA3305D
Power cable
2 x set of cables
The user manual
