Laboratory power supply Korad KKG305D 0-30V 0-5A

Brand: Korad
Product Code: AN-21313
Availability: 4-6 business days
Planned delivery date after ordering: 2025-08-05

113.10€
Ex Tax: 93.47€

Qty

Add to Wish List

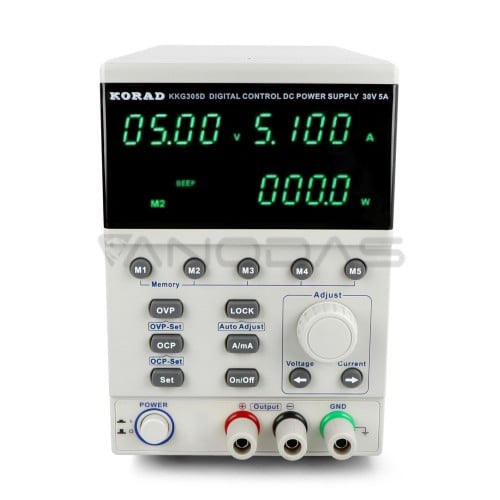

The Korad laboratory power supply is characterized by smooth voltage regulation in the range from 0 V to 30 V and current in the range from 0 A to 5 A. The device can operate in the following modes: C. V. - DC voltage of output and C.C. - DC load. It is cooled by a fan that runs continuously, and its speed depends on the load. The product is also equipped with clear displays allowing for comfortable observation of parameters.

Main features:

The device can operate in the following modes:

C. V. - DC voltage of the output
C. C. - DC load

The system is equipped with protection from surges and overloads. Has two kinds of protection:

OVP (overvoltage protection)
OCP (overcurrent protection)

The PSU has 5 storages to save current, voltage and operation modes
Has the accuracy of indications of the current up to 3 decimal places
Equipped with a digital screen display showing all functions used
Cooled by a built-in fan

Specification:

Voltage range: 0 V to 30 V
Current range: 0 A to 5 A
Parameter adjustment

Voltage: ⩽ 0.01% +2 mV
Current: ⩽ 0.1% +5 mA

Accuracy of parameter setting:

Voltage: 10 mV
Current: 1 mA

Accuracy of settings

Voltage: 0.5% + 20 mV
Currents: 0.5% + 5 mA

A ripple of the output voltage

Voltage: + 2 mVrms
Current: + 3 mArms

2 communication protocols: Modbus and SCPI
Overload protection
The device can work in the following modes:

CV - constant output voltage
CC - constant current load

Fan cooling
Easy-to-read digital displays

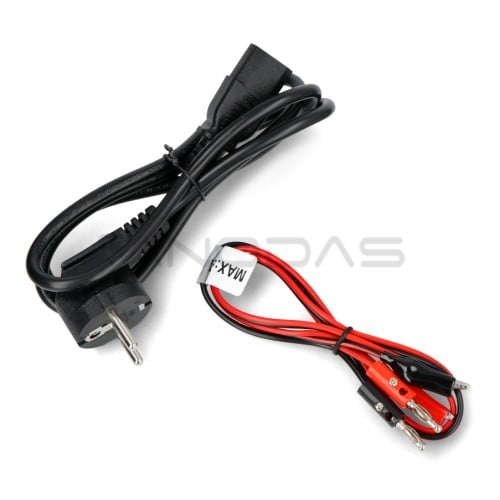

Set includes:

Laboratory power supply Korad KKG305D
Power cord
Banana-crocodile test leads
User manual

Tags: laboratory, power, supply, korad, kkg305d, 0-30v, 0-5a, adjustable, supplies
